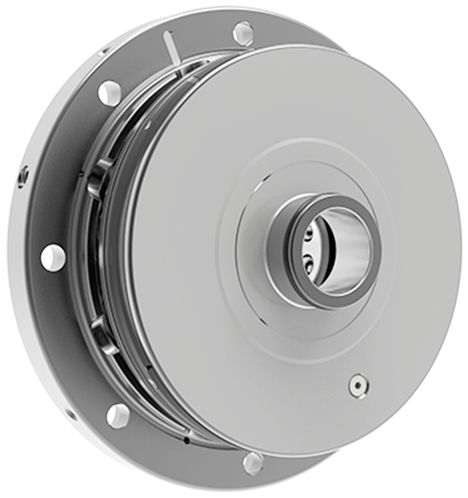

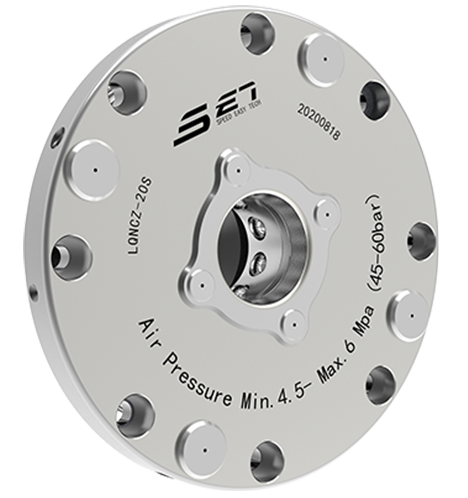

Automatic Air Pallet Lifting Type

  • Clamping force 17KN, tension force 55KN
  • Repeated positioning accuracy <0.003mm
  • Planar and cone-hole constraints on both sides
  • With lifting function, surface blowing cleaning function
  • Automatic Air Pallet Lifting Type
  • Automatic Air Pallet Lifting Type
  • Automatic Air Pallet Lifting Type
Detail drawing
  • Automatic Air Pallet Lifting Type
  • Automatic Air Pallet Lifting Type
  • Automatic Air Pallet Lifting Type
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories
Product Overview

Automatic air pallet lift zero positioner is unlocked by air pressure and mechanically locked by spring.
It is composed of two parts, the upper cover and the piston, including the lifting function and the surface blowing and cleaning function, and has the airtight position relaxation detection interface.
Both sides of the plane and cone holes are constrained, and the positioning accuracy can reach 0.003mm. The clamping force of a single positioner is 17KN and the tension force is 55KN.
Suitable for flexible production lines.

Automatic Air Pallet Lifting Type
Product Features

  • Air pressure unlocks, spring mechanical lock;

  • Repeated positioning accuracy <0.003mm;

  • Including surface blowing cleaning function;

Suzhou SET Industrial Equipment System Co.,Ltd.

  • Material: hardened stainless steel;

  • With lifting function, double-sided constraint, high precision, strong rigidity;

  • With airtight in-place relaxation detection interface.

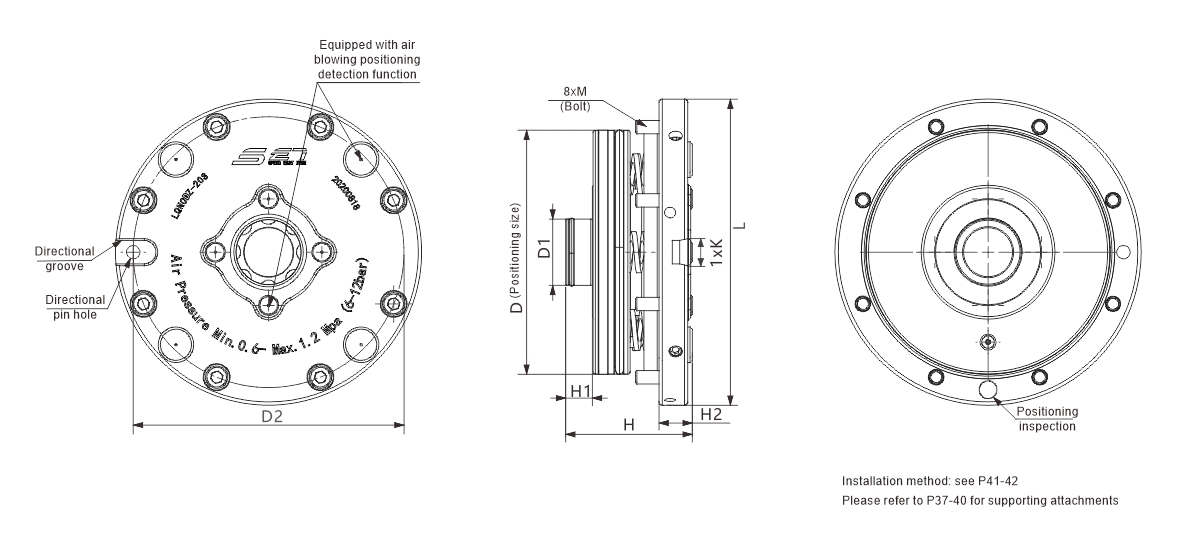

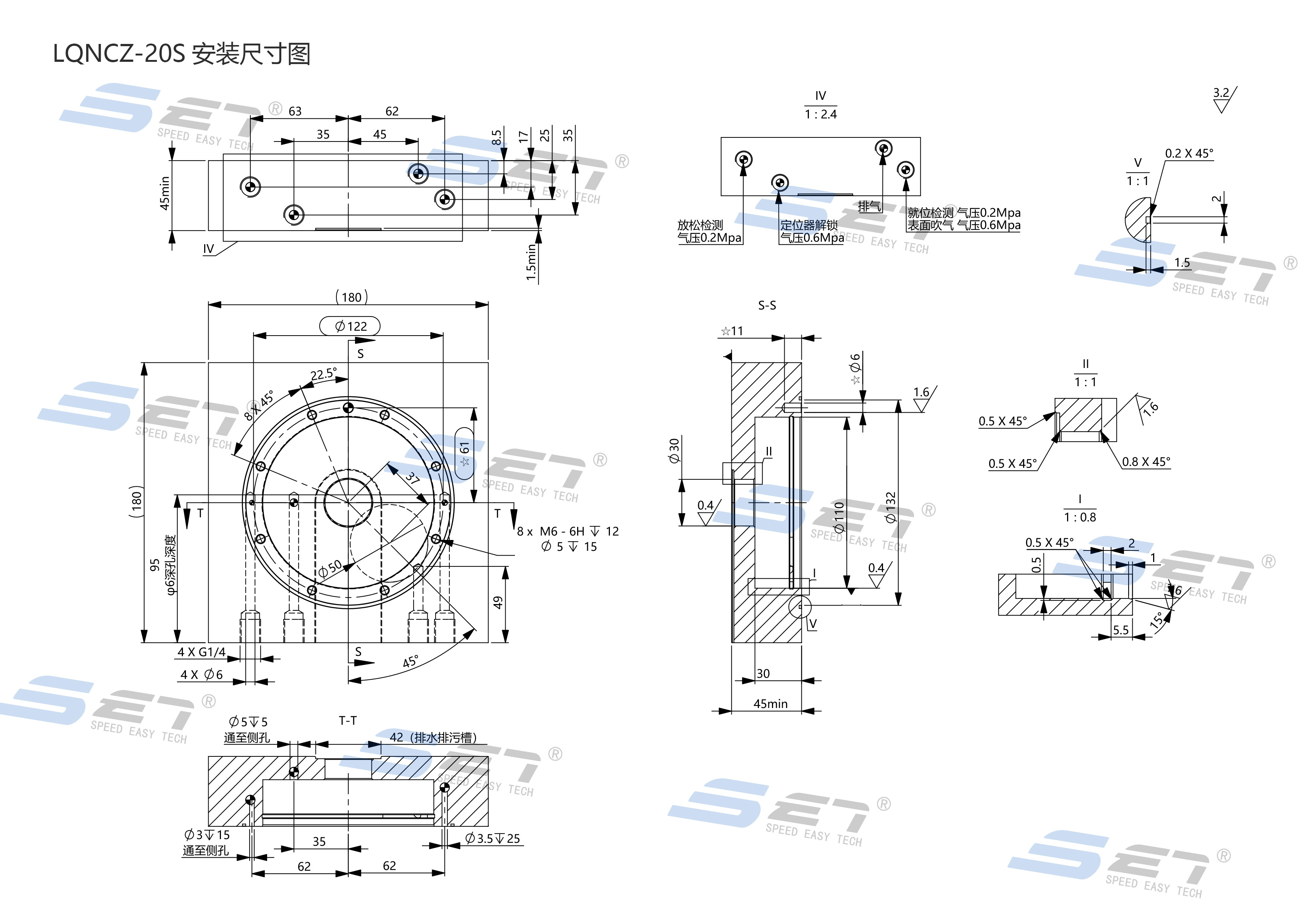

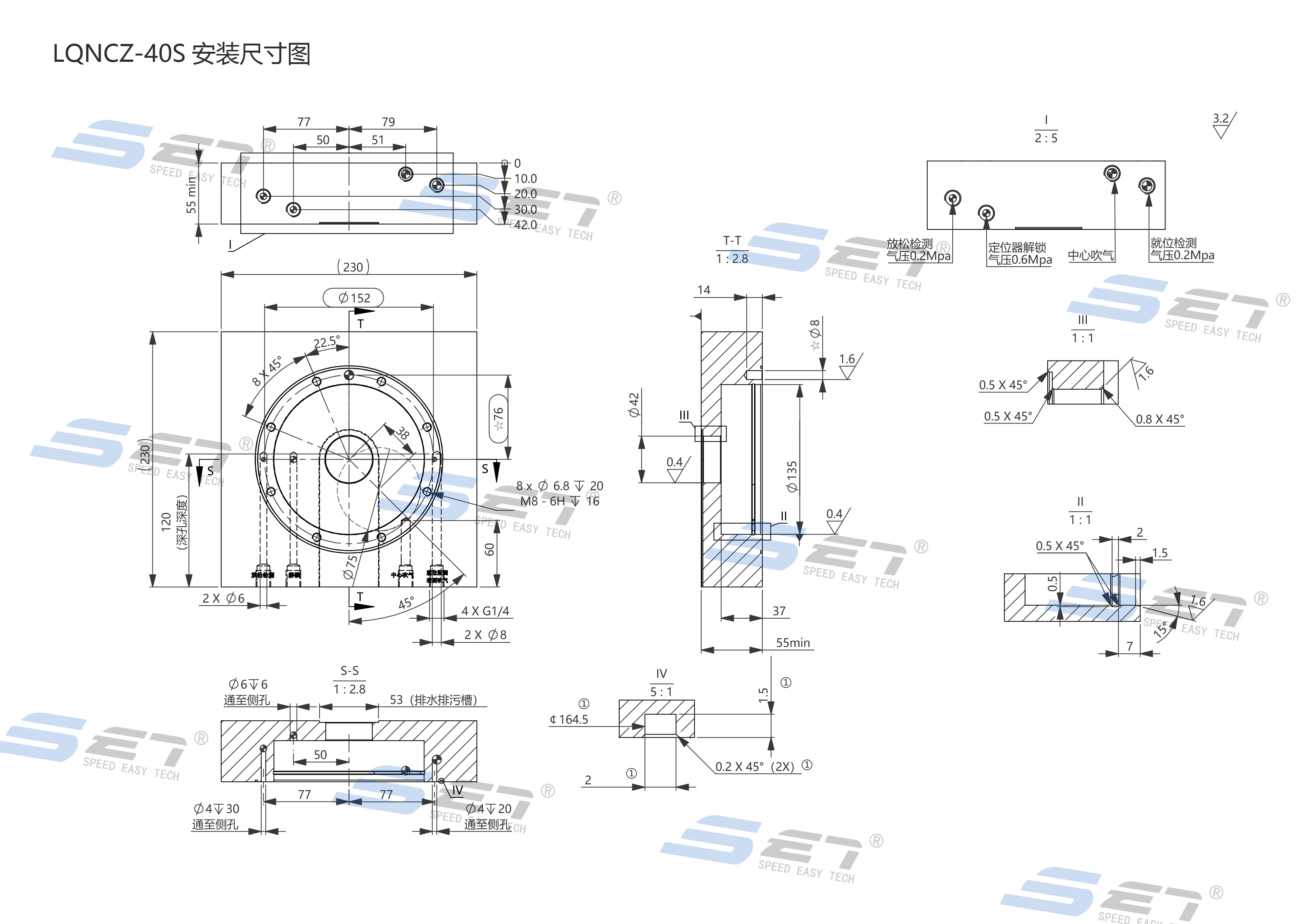

Product dimension diagram

Order number Unlocking method Clamping force (KN) Tension (KN) Blowing chip Lifting force (KN)
(0.6Mpa)		 Weight (kg)
LQNCZ-10S Atmospheric pressure 10  25 √ 50  1.7
LQNCZ-20S Atmospheric pressure 17  55  √ 100  2.5
LQNCZ-40S Atmospheric pressure 40  105  √ 150  4.2
LQNCDZ-10S Atmospheric pressure 10  25 √ 50  1.7
LQNCDZ-20S Atmospheric pressure 17  55  √ 100  2.5
LQNCDZ-40S Atmospheric pressure 40  105  √ 150  4.2

Order number øL øD
(h6)		 øD1 øD2 H H1 H2 M K
LQNCZ-10S 112  85  26  97  49  11  12  M6 /
LQNCZ-20S 138  110  30  122  57  12  15  M6 /
LQNCZ-40S 172  135  42  152  70  15  18  M8 /
LQNCDZ-10S 112  85  26  97  49  11  12  M6 8
LQNCDZ-20S 138  110  30  122  57  12  15  M6 10
LQNCDZ-40S 172  135  42  152  70  15  18  M8 10
  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.

Automatic Air Pallet Lift Type

  1. Clamping force 17KN, tension force 55KN
  2. Repeated positioning accuracy <0.003mm
  3. Planar and cone-hole constraints on both sides
  4. With lifting function, surface blowing cleaning function
Public information
Suzhou SET Industrial Equipment System Co.,Ltd. All Suzhou SET Industrial Equipment System Co.,Ltd. 3D model diagram Suzhou SET Industrial Equipment System Co.,Ltd. Installation instruction Suzhou SET Industrial Equipment System Co.,Ltd. User Manual Suzhou SET Industrial Equipment System Co.,Ltd. Sample book
Suzhou SET Industrial Equipment System Co.,Ltd. List Type Latest updates
About us Coming From China,
Marketing To The World.
Suzhou SET Industrial Equipment System Co.,Ltd. is a national high-tech private enterprise that integrates research and development, design, production, sales, and after-sales service. It focuses on the design and manufacturing of zero point positioning systems, grasping systems, clamping systems, and non-standard tooling products, and is committed to providing customers with safe, reliable, and efficient products, services, and systematic solutions. SET Industrial Equipment Is China Wholesale Automatic Air Pallet Lifting Type Manufacturers and Automatic Air Pallet Lifting Type Factory, We Offer Automatic Air Pallet Lifting Type For Sale.
