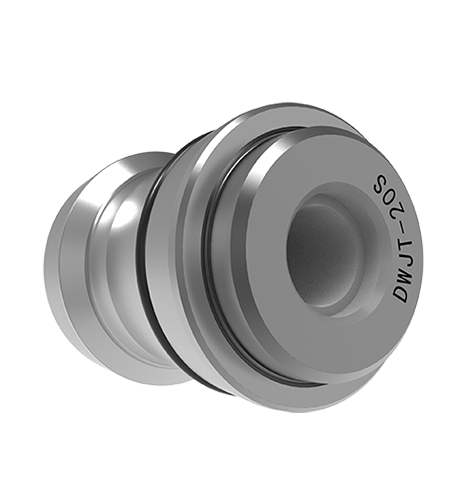

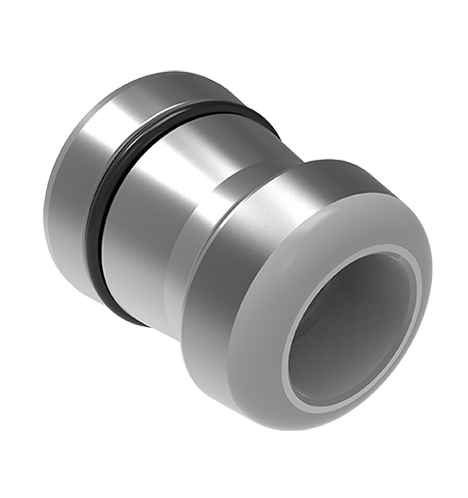

Positioning Pin (Q20S)

  • Restriction of freedom in X - and Y-axis directions
  • Short cone ball lock type Q20S zero locator special
  • Positioning Pin (Q20S)
  • Positioning Pin (Q20S)
  • Positioning Pin (Q20S)
Detail drawing
  • Positioning Pin (Q20S)
  • Positioning Pin (Q20S)
  • Positioning Pin (Q20S)
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories
Product Overview

Dowel, surface hardened.
Height 41.7mm, weight 140g.
To limit the X-axis, and Y-axis direction of the freedom function.
Suitable for short cone ball lock type Q20S zero locator.

Positioning Pin (Q20S)
Product Features

  • Surface hardening treatment, high precision;

  • Suitable for short cone ball lock type Q20S zero locator.

Suzhou SET Industrial Equipment System Co.,Ltd.

  • Play a role in restricting the freedom of X and Y directions;

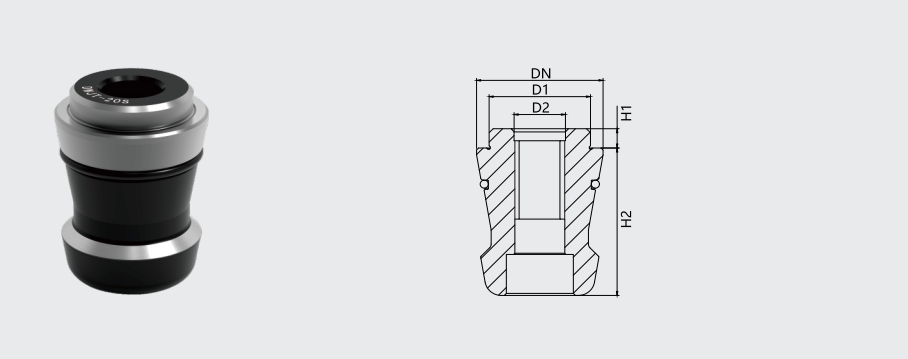

Product dimension diagram

Order number Dimension number Match the locator size number ØDN ØD1 ØD2 H1 H2 Weight(g)
DWJT-20S Q20S Q20S 32  25  M12(Through) 5  36.7  140
