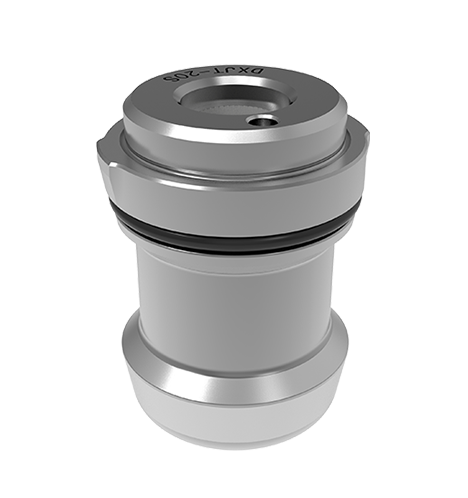

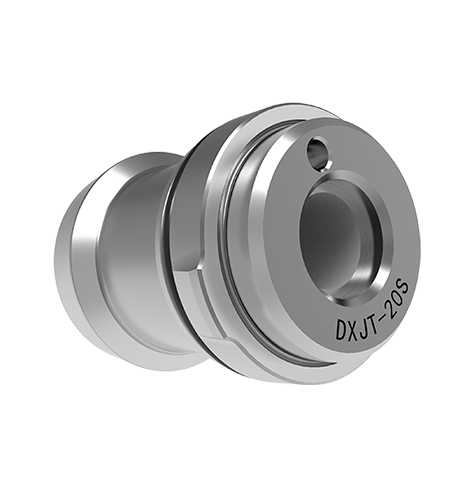

Directional Pin (Q20S)

  • Limit the degree of freedom of rotation and play a directional role
  • Short cone ball lock type Q20S zero positioner special
  • Directional Pin (Q20S)
  • Directional Pin (Q20S)
  • Directional Pin (Q20S)
Detail drawing
  • Directional Pin (Q20S)
  • Directional Pin (Q20S)
  • Directional Pin (Q20S)
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories
Product Overview

Surface hardened.
Height 41.7mm (without directional key), weight 140g.
It only limits the degree of freedom of rotation and plays a directional role.
Suitable for short cone ball lock type Q20S zero positioner.

Directional Pin (Q20S)
Product Features

  • Surface hardening treatment;

  • Suitable for short cone ball lock type Q20S zero positioner.

Suzhou SET Industrial Equipment System Co.,Ltd.

  • Only limit the freedom of rotation, play a directional role;

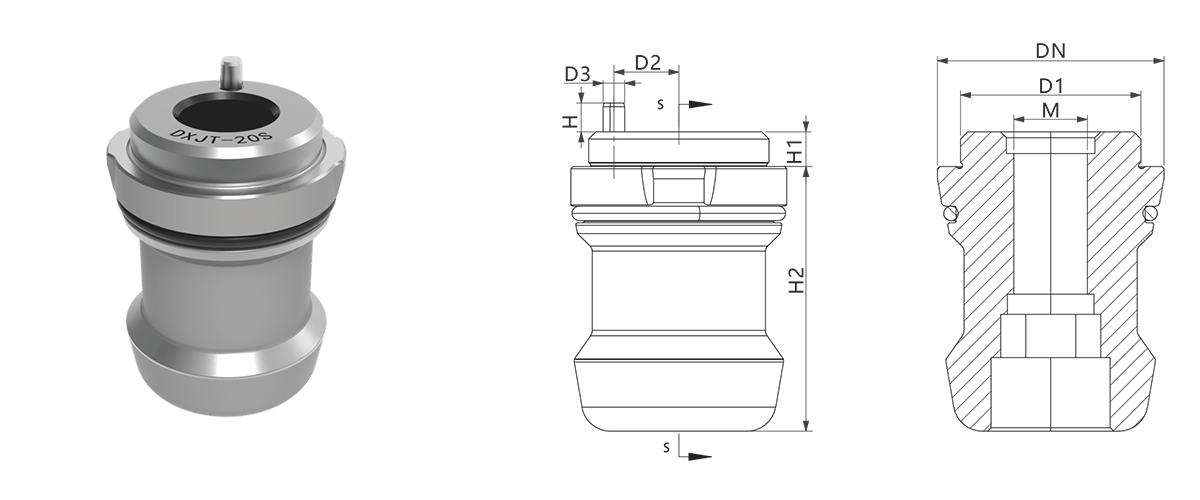

Product dimension diagram

Order number ØDN ØD1
(h6)		 D2 ØD3 H H1 H2 M Weight(g)
DXJT-20S 32 25 9 3 4 5 36.7 M12(transfixion) 140
