Automatic Air Pallet Lifting Belt Angular Positioning Type

  • Clamping force 17kN, tension force 55kN
  • Repeated positioning accuracy <0.003mm
  • With lifting function, double-sided constraints
  • With angular positioning, can be used single

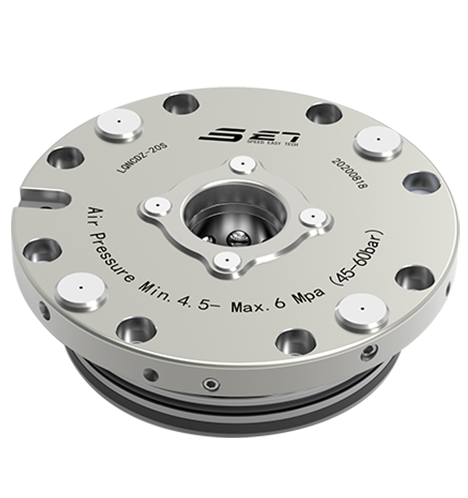

  • Automatic Air Pallet Lifting Belt Angular Positioning Type

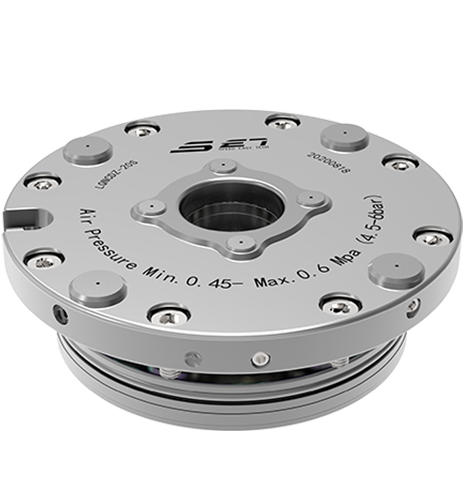

  • Automatic Air Pallet Lifting Belt Angular Positioning Type

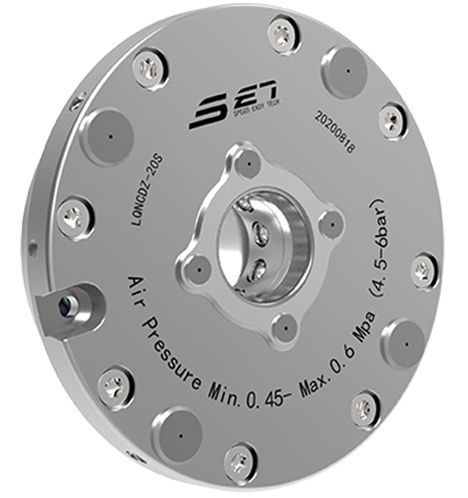

  • Automatic Air Pallet Lifting Belt Angular Positioning Type

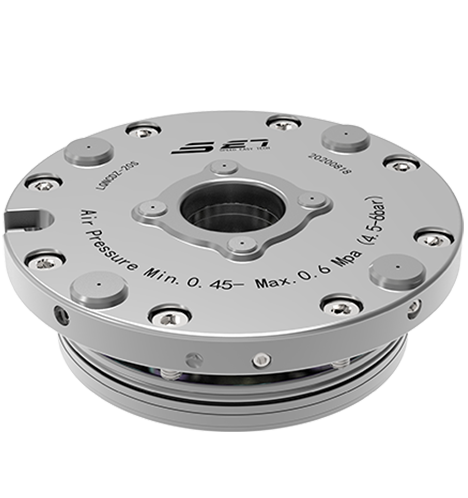

  • Automatic Air Pallet Lifting Belt Angular Positioning Type
Detail drawing
  • Automatic Air Pallet Lifting Belt Angular Positioning Type
  • Automatic Air Pallet Lifting Belt Angular Positioning Type
  • Automatic Air Pallet Lifting Belt Angular Positioning Type
  • Automatic Air Pallet Lifting Belt Angular Positioning Type
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories
Product Overview

The automatic air pallet lift with angular positioning type zero positioner is unlocked by air pressure and mechanically locked by spring.
With lifting function and surface blowing cleaning function, with airtight position relaxation detection interface.
Both sides of the plane and cone holes are constrained, and the positioning accuracy can reach 0.003mm. The clamping force of a single positioner is 17KN and the tension force is 55KN.
With angular positioning, can be used single.
Suitable for flexible production lines.

Automatic Air Pallet Lifting Belt Angular Positioning Type
Product Features

  • Air pressure unlock, spring mechanical lock;

  • Repeated positioning accuracy <0.003mm

  • Including surface blowing cleaning function;

  • With angular positioning, can be used single.

Suzhou SET Industrial Equipment System Co.,Ltd.

  • Material: hardened stainless steel;

  • With lifting function, double-sided constraint, high precision, strong rigidity;

  • With airtight in place relaxation detection interface;

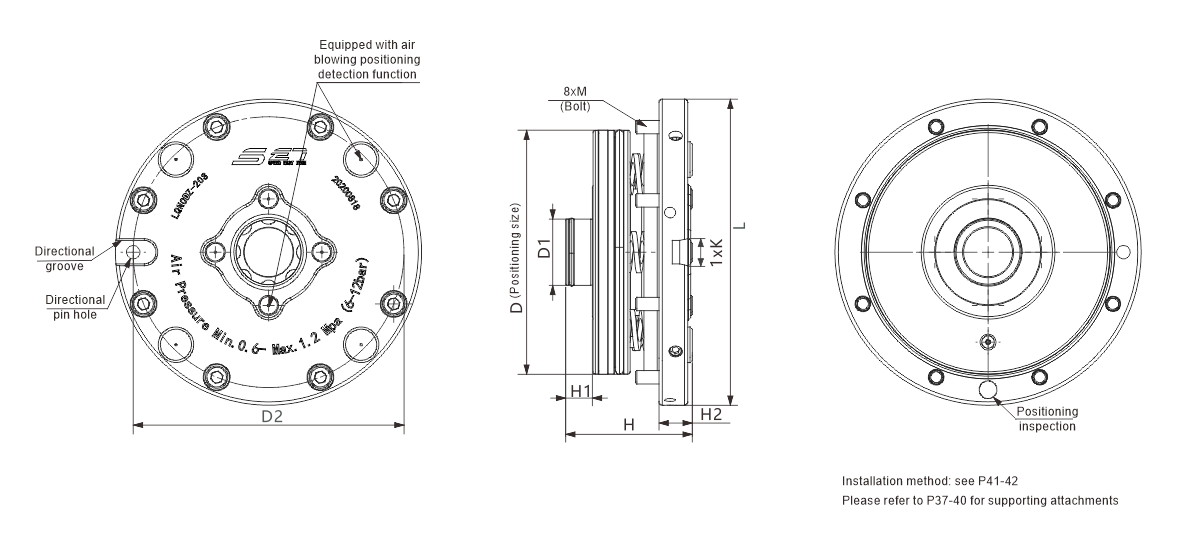

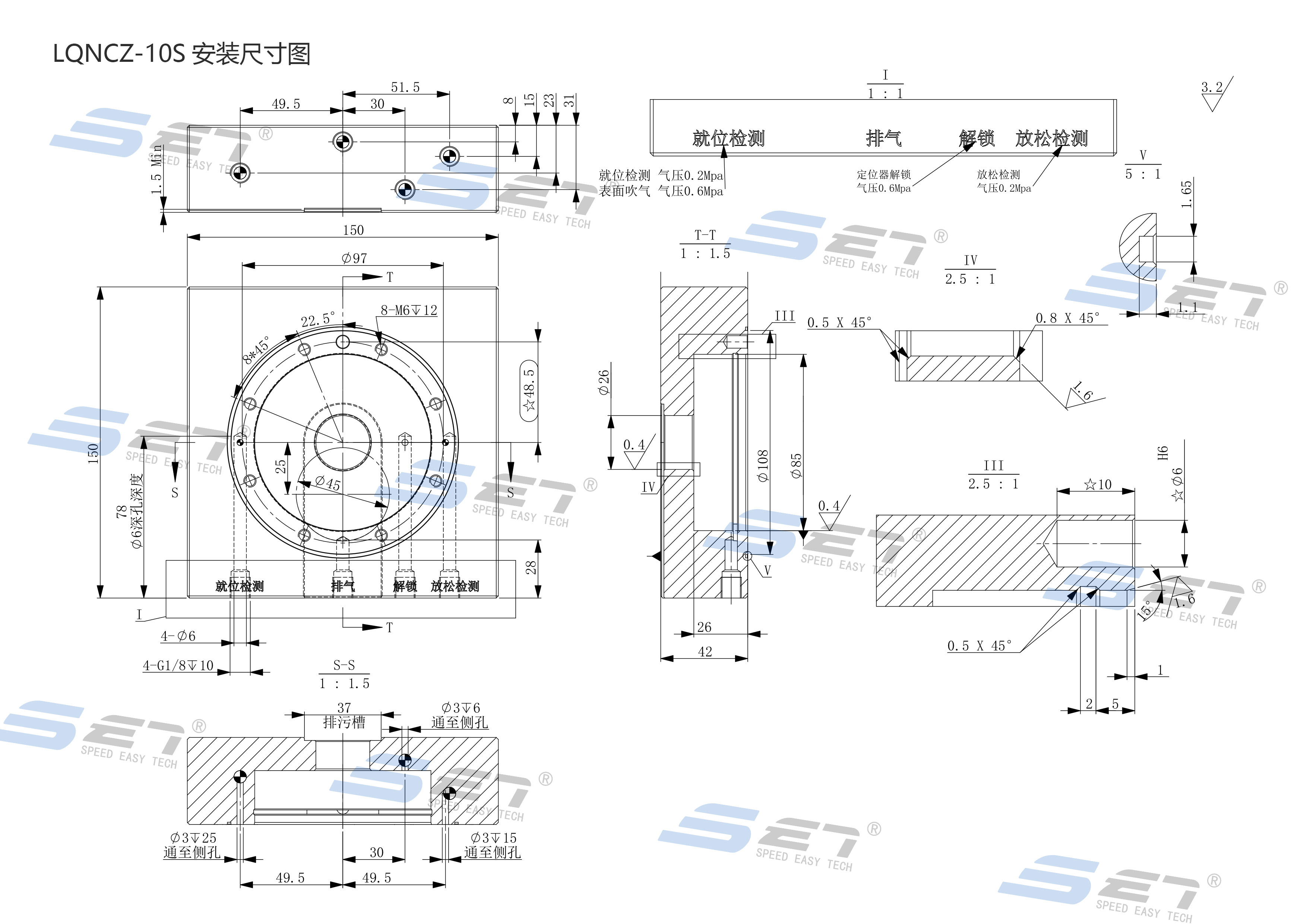

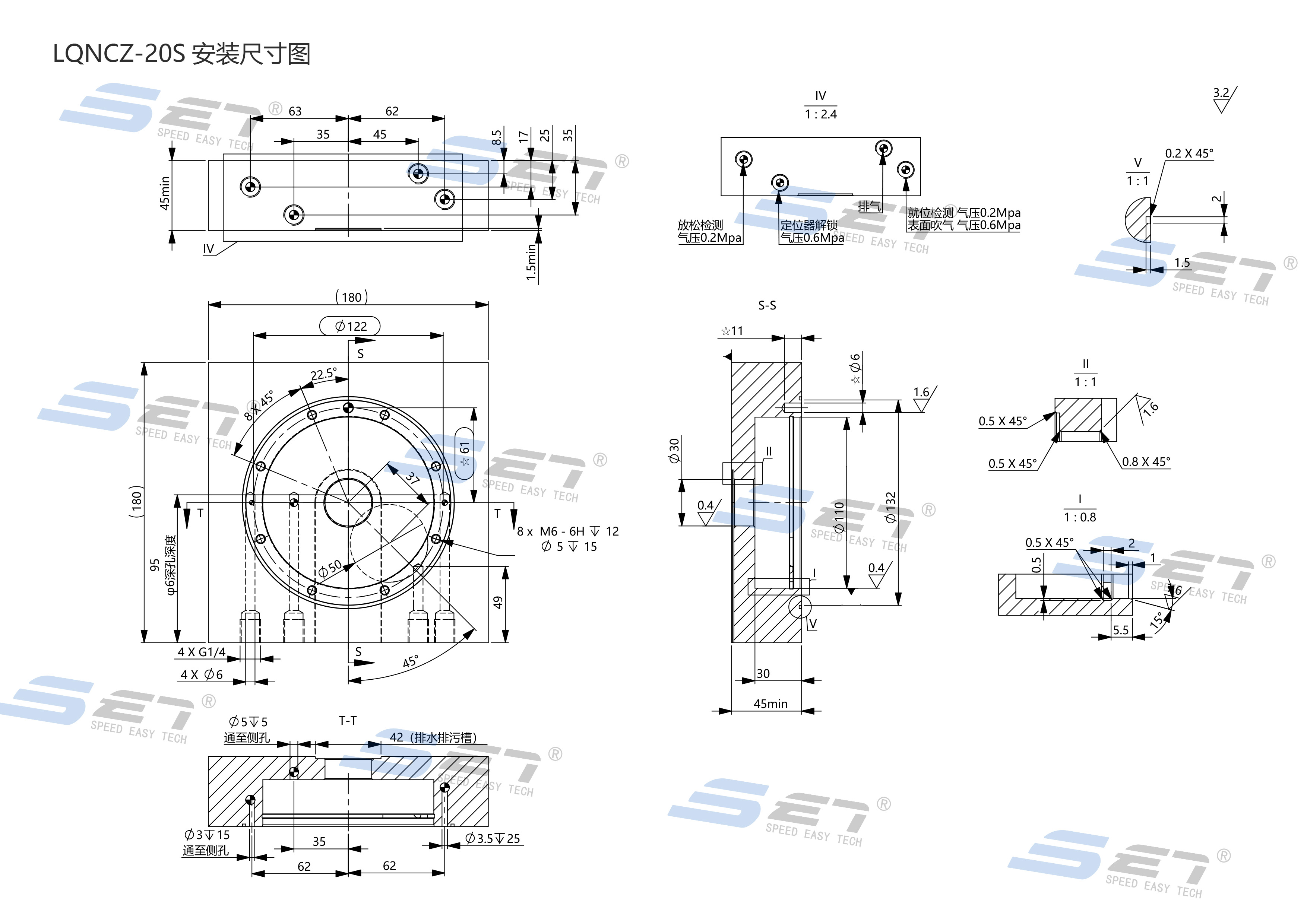

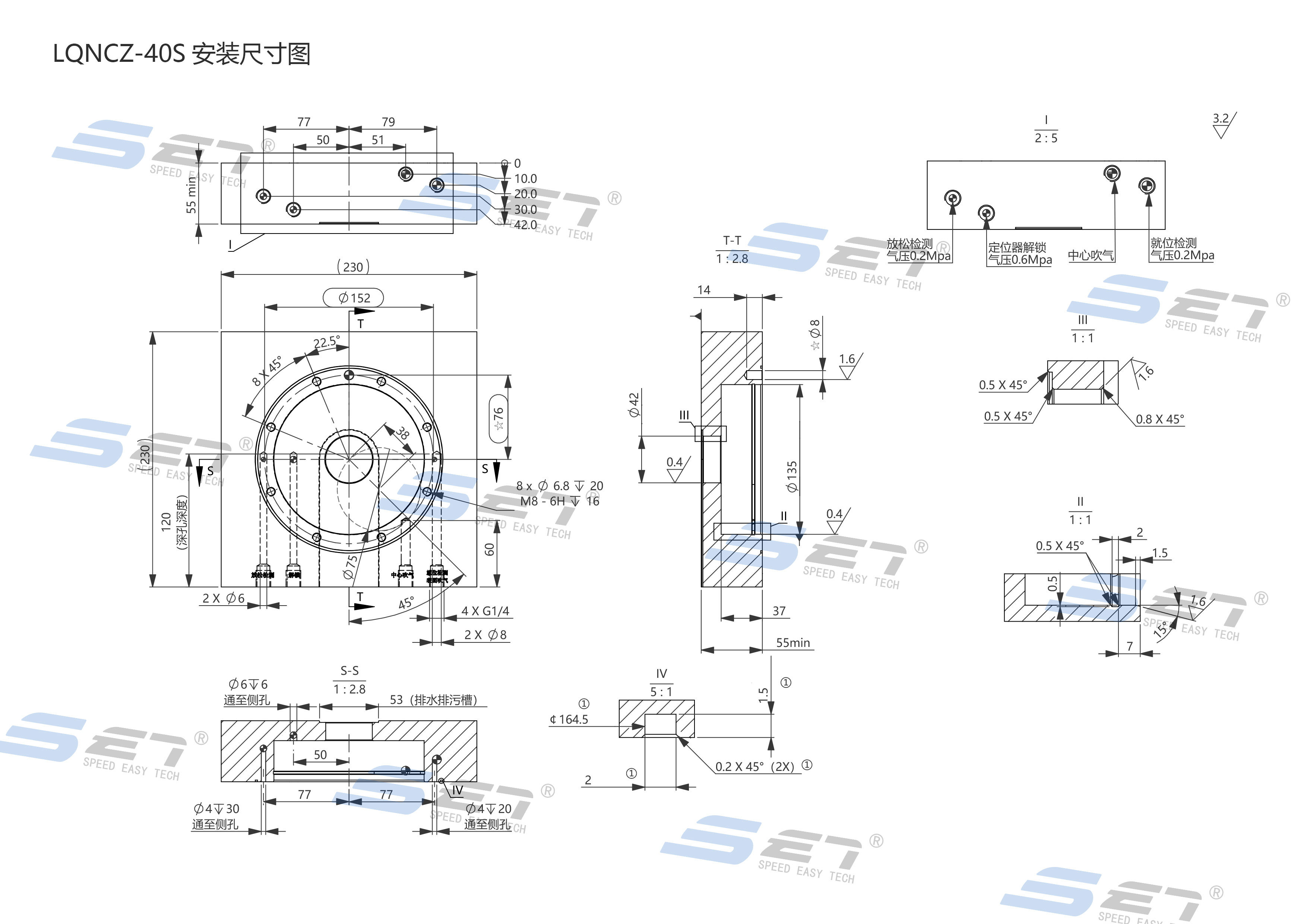

Product dimension diagram

Order number Unlocking method Clamping force (kN) Tension (kN) Blowing chip Lifting force (kN)
(0.6MPa)		 Weight (kg)
LQNCZ-10S Atmospheric pressure 10  25  √ 50  1.7
LQNCZ-20S Atmospheric pressure 17  55  √ 100  2.5
LQNCZ-40S Atmospheric pressure 40  105  √ 150  4.2
LQNCDZ-10S Atmospheric pressure 10  25  √ 50  1.7
LQNCDZ-20S Atmospheric pressure 17  55  √ 100  2.5
LQNCDZ-40S Atmospheric pressure 40  105  √ 150  4.2

Order number ØL ØD
(h6)		 ØD1 ØD2 H H1 H2 M K
LQNCZ-10S 112  85  26  97  49  11  12  M6 /
LQNCZ-20S 138  110  30  122  57  12  15  M6 /
LQNCZ-40S 172  135  42 152  70  15  18  M8 /
LQNCDZ-10S 112  85  26  97  49  11  12  M6 8
LQNCDZ-20S 138  110  30  122  57  12  15  M6 10
LQNCDZ-40S 172  135  42 152  70  15  18  M8 10

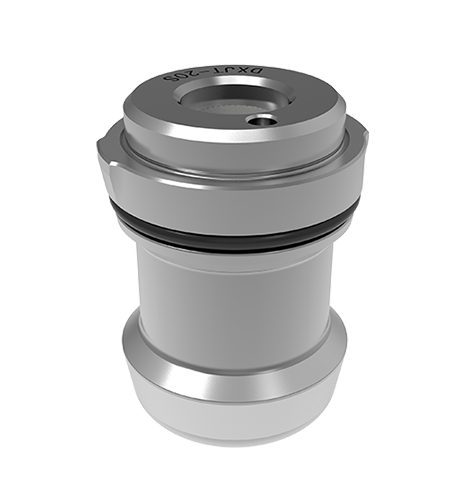

  • Suzhou SET Industrial Equipment System Co.,Ltd.

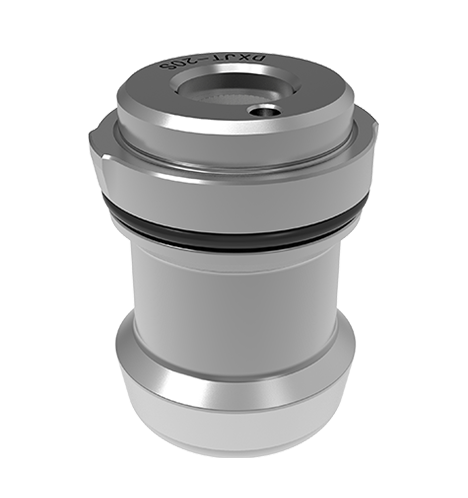

  • Suzhou SET Industrial Equipment System Co.,Ltd.

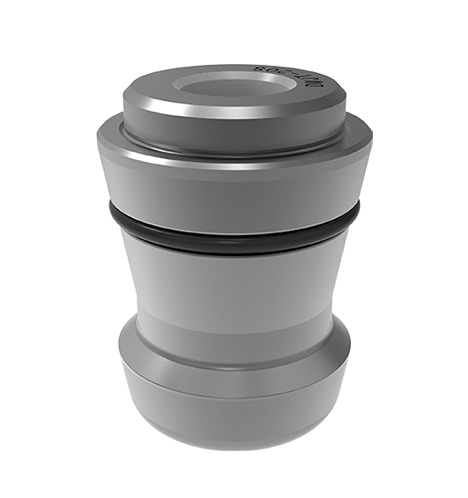

  • Suzhou SET Industrial Equipment System Co.,Ltd.

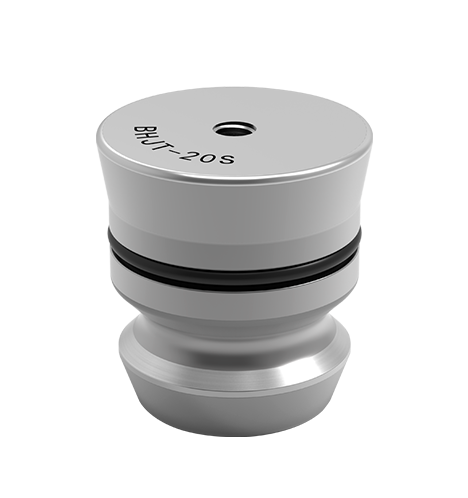

  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.

Automatic Air Pallet Lifting Belt Angular Positioning Type

  1. The automatic air pallet lift with angular positioning type zero positioner is unlocked by air pressure and mechanically locked by spring.
  2. With lifting function and surface blowing cleaning function, with airtight position relaxation detection interface.
  3. Both sides of the plane and cone holes are constrained, and the positioning accuracy can reach 0.003mm.
  4. The clamping force of a single positioner is 17kN and the tension force is 55kN.
  5. With angular positioning, can be used single.
  6. Suitable for flexible production lines.
