Table With Sensor Type

  • Clamping force 5kN, tension force 13kN
  • Repetitive positioning accuracy ＜0.005mm
  • Usage temperature range -20℃~80℃
  • With clamping, loosening detection interface, output PNP switching signal
  • Table With Sensor Type
  • Table With Sensor Type
  • Table With Sensor Type
Detail drawing
  • Table With Sensor Type
  • Table With Sensor Type
  • Table With Sensor Type
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories
Product Overview

Table with sensor type zero positioner built-in sensor contains two sensing states (open/lock), unlocked by air pressure, spring mechanical lock. In the locked state, the pressure source can be cut off at any time, and there is no need to connect the air source when using.
Repetitive positioning accuracy ＜0.005mm, single locator clamping force 5kN, tension force 13kN.
Usage temperature range -20℃~80℃, suitable for automatic handling and grasping fields and mold change, welding production lines.

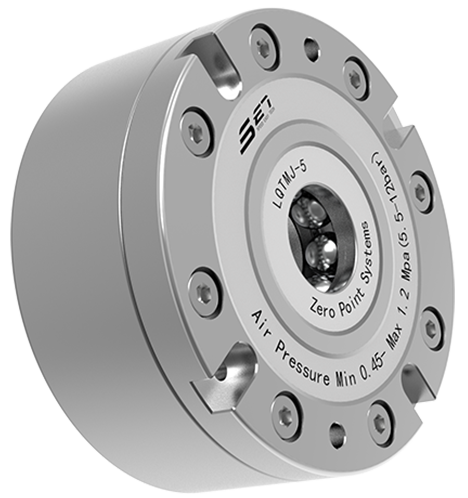

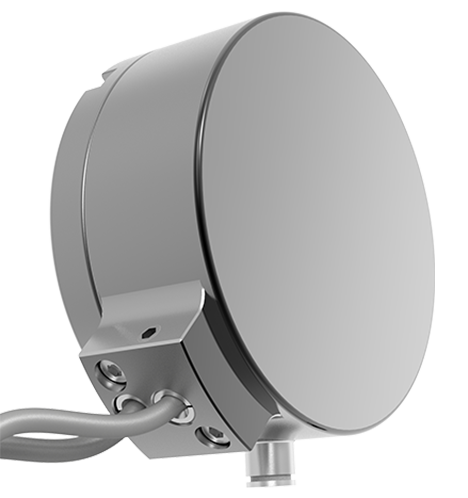

Table With Sensor Type
Product Features

  • Product features: air pressure unlock, spring mechanical lock;

  • Repetitive positioning accuracy < 0.005mm;

  • When used, the pressure source can be cut off, and the clamping force is stable.

Suzhou SET Industrial Equipment System Co.,Ltd.

  • Material: hardened stainless steel;

  • With clamping, loosening detection interface, output PNP switching signal;

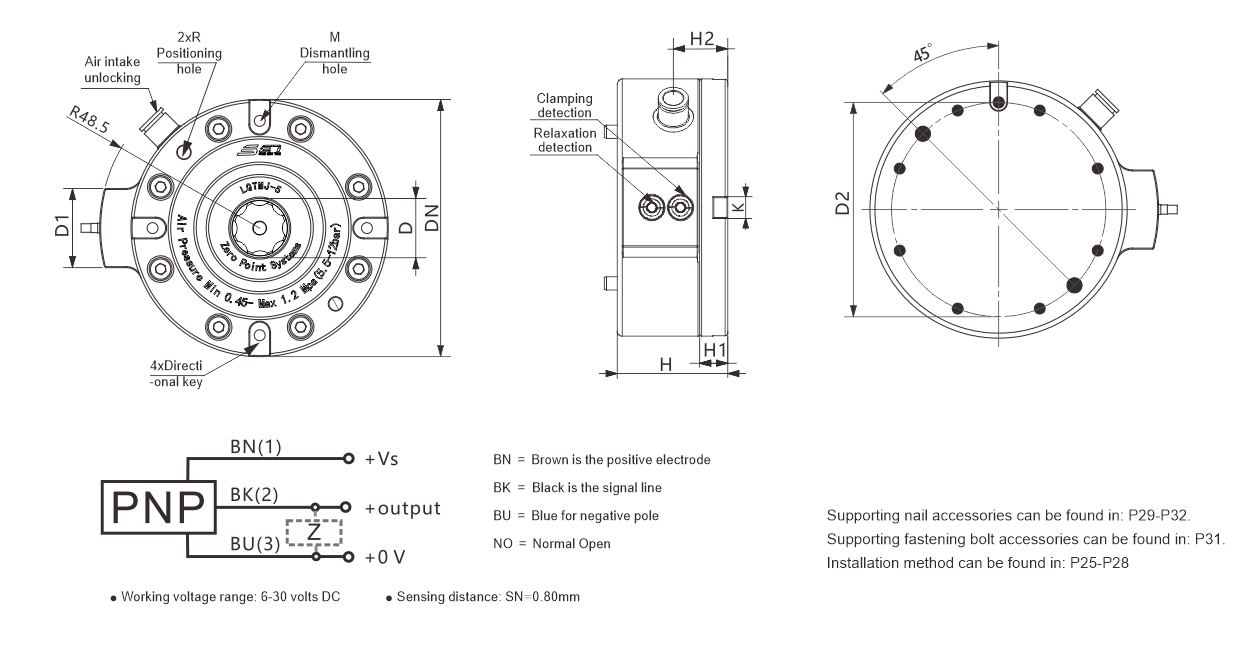

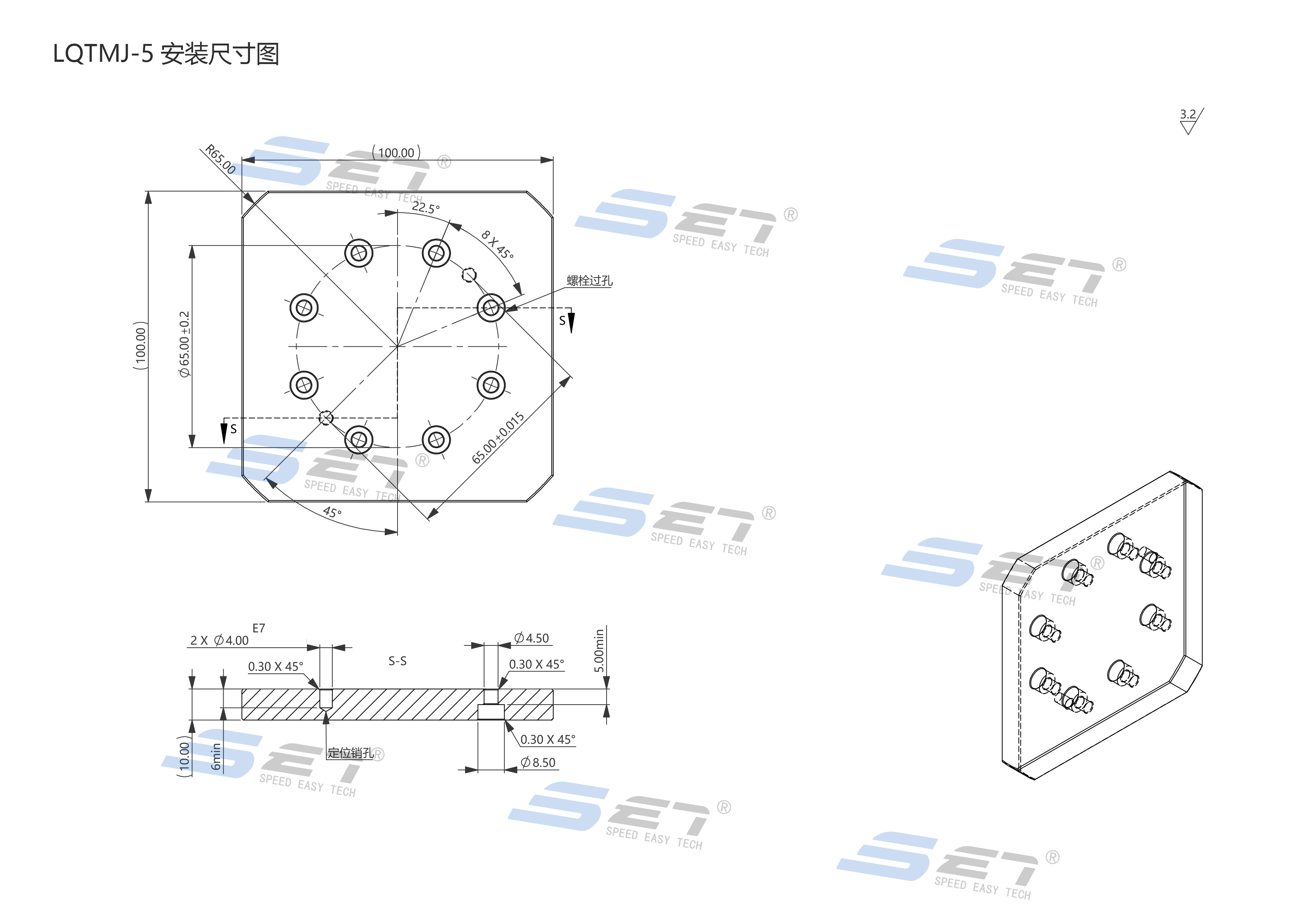

Product dimension diagram

Order number Unlocking method Clamping force(kN) Tension force(kN) Blow air Weight(kg)
LQTMJ-5 Gas pressure 5 13 x 1.2

Order number ØDN ØD ØD1 ØD2 H
(±0.015)

H1

(±0.005)

 H2 M ØR
LQTMJ-5 78 18 24 65 33.5 8.5 16.5 4xM4 4
  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.

Table With Sensor Type

  1. The clamping force of a single locator is 5kN and the tension force is 13kN;
  2. The repetitve positioning accuracy of zero positioning system is <0.005mm
  3. Zero positioning system operating temperature -20℃~80℃
  4. Tooling pallet mounting tilt loading and unloading Max. 10°
  5. Tooling tray installation eccentric loading and unloading maximum ±3mm
