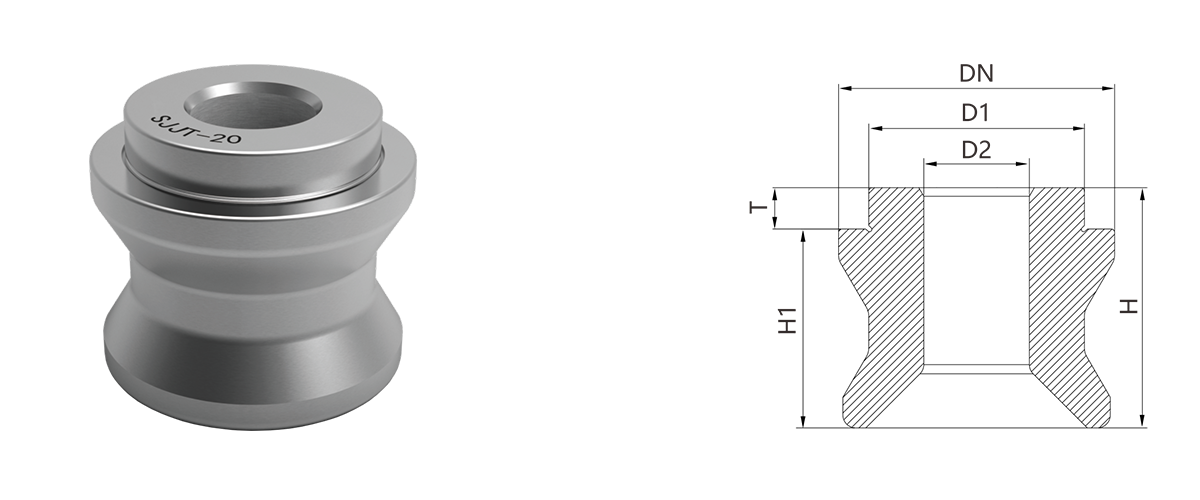

Locking pin, hardening treatment.
Diameter 31.8mm, height 28mm, weight 105g.
It not only increases the tensioning force, but also ensures that the tray is completely positioned to avoid over-positioning.
Suitable for straight column ball lock zero positioner.
Hardening treatment to increase the role of tension;
Suitable for straight column ball lock zero positioner.
Ensure that the tray is fully positioned to avoid over-positioning;
| Order number | Dimension number | Match the locator size number | ØDN | ØD1 | ØD2 | H | H1 | T | Weight(g) |
|---|---|---|---|---|---|---|---|---|---|
| SJJT-2 | Q2 | Q2 | 12.9 | 10 | 6.2 | 11 | 8.9 | 2.1 | 6 |
| SJJT-5 | Q5 | Q5 | 17.8 | 14 | 8.2 | 15.5 | 12.8 | 2.7 | 16 |
| SJJT-10 | Q10 | Q10 | 21.8 | 15 | 8.3 | 19.3 | 16.3 | 3 | 30 |
| SJJT-20 | Q20 | Q20 | 31.8 | 25 | 12.2 | 28 | 23 | 5 | 105 |
| SJJT-40 | Q40 | Q40 | 39.8 | 30 | 16.3 | 34 | 29 | 5 | 188 |
