Table With Sensor Type

  • Clamping force: 1.25kN, tension force: 5kN
  • Repetitive positioning accuracy ＜0.005mm
  • Temperature Operating range -20℃~80℃
  • With clamping, relaxed detection interface, output PNP switching signal
  • Table With Sensor Type
  • Table With Sensor Type
  • Table With Sensor Type

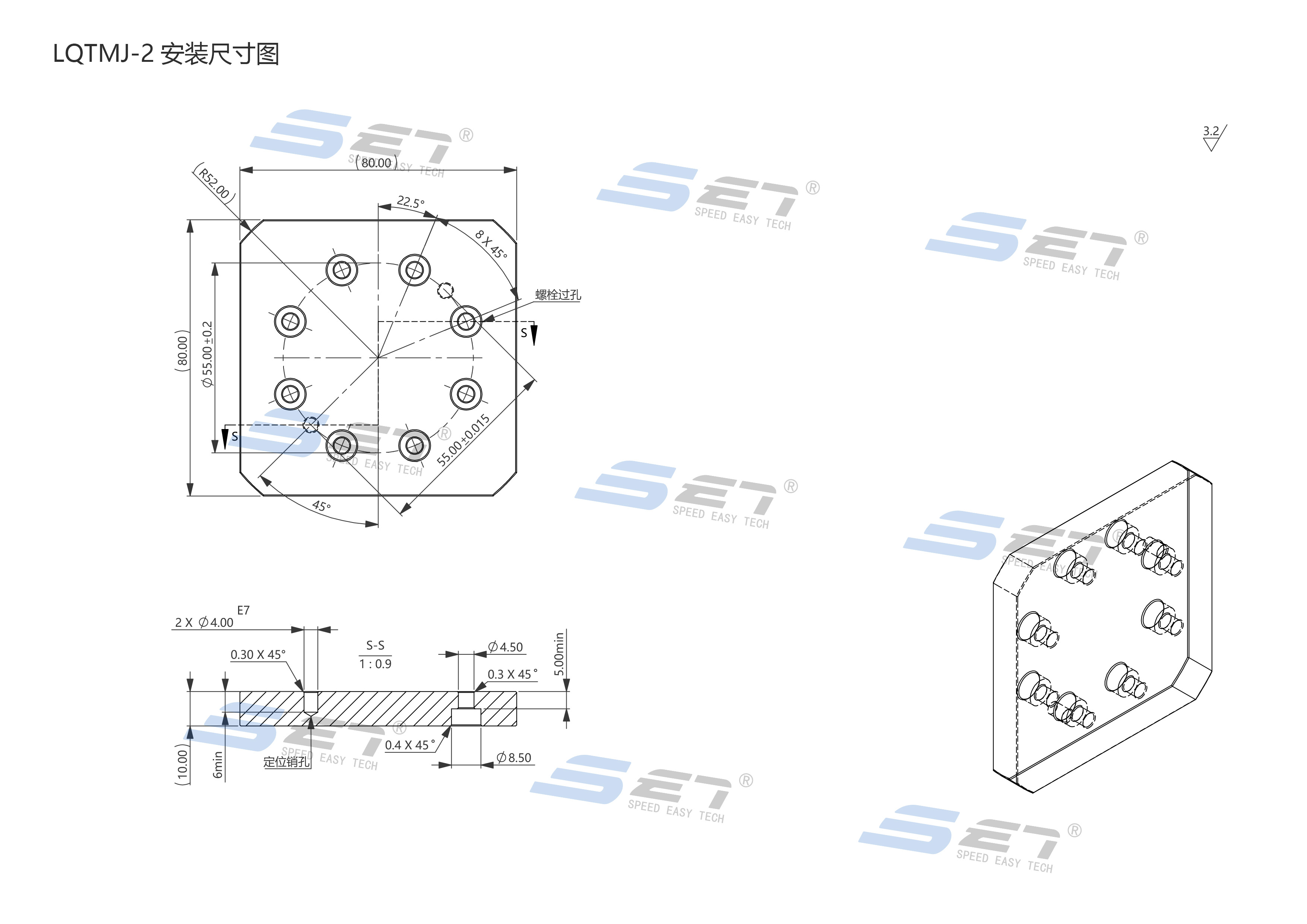

Detail drawing
  • Table With Sensor Type
  • Table With Sensor Type
  • Table With Sensor Type
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories
Product Overview

Table With Sensor Type

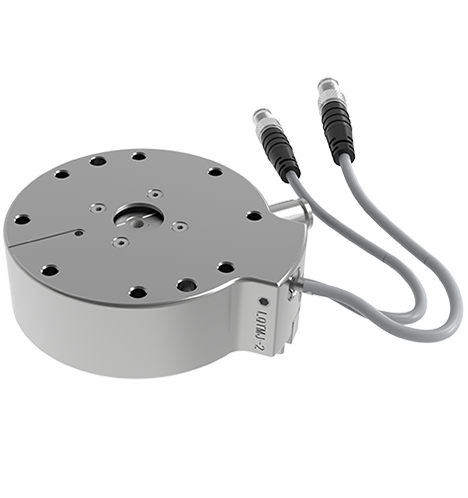

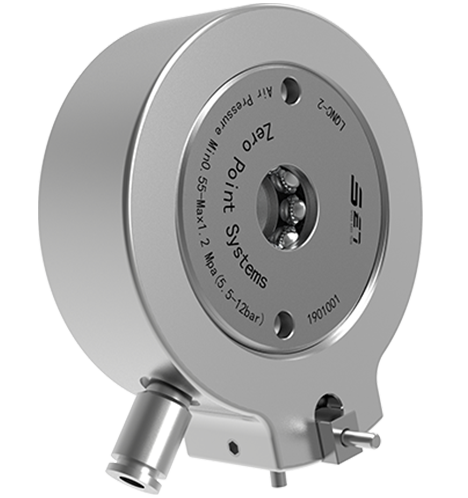

✔ Table with sensor type zero locator built-in sensor contains two sensing states (open/lock), unlocked by air pressure, locked by spring mechanical. In the locked state, the pressure source can be cut off at any time, and there is no need to connect the air source when using.

✔ Repeated positioning accuracy ＜0.005mm, single locator clamping force 1.25kN, tension force 5kN.

✔ Temperature range -20℃~80℃, suitable for automatic handling and grasping fields and mold change, welding production lines.

Table With Sensor Type
Product Features

  • Product features: air pressure unlock, spring mechanical lock;

  • Repeated positioning accuracy < 0.005mm;

  • When used, the pressure source can be cut off, and the clamping force is stable.

Suzhou SET Industrial Equipment System Co.,Ltd.

  • Material: hardened stainless steel;

  • Equipped with clamping and loosening test port, to output PNP signal;

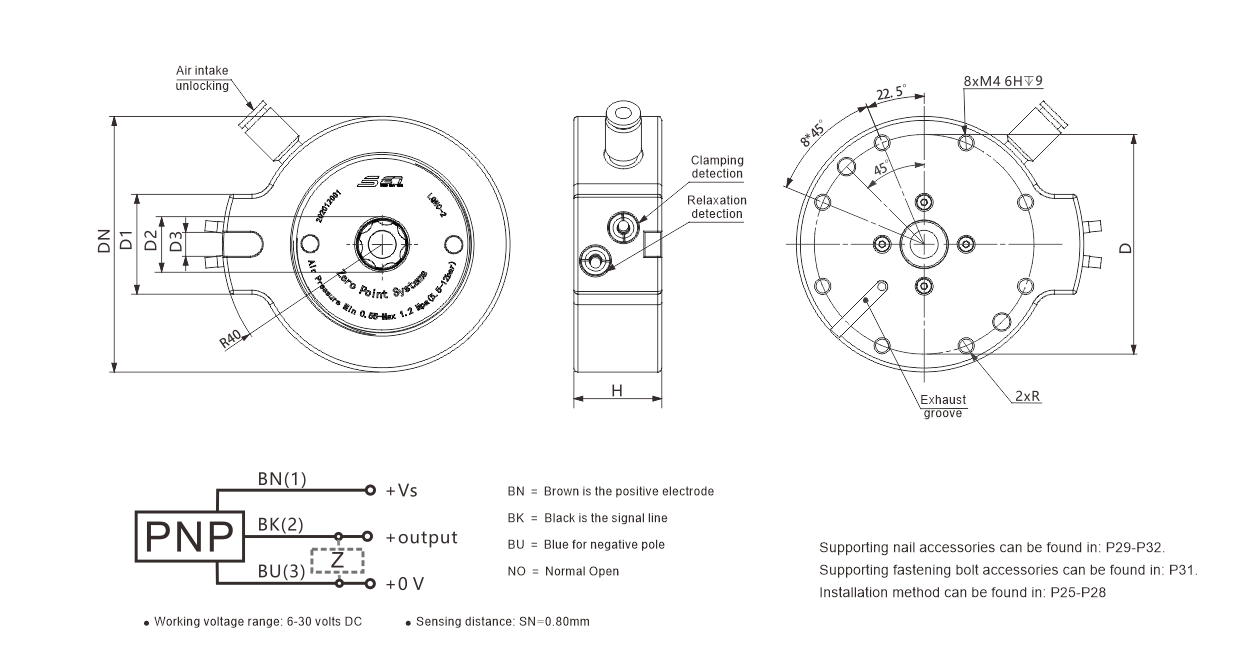

Product dimension diagram

Order number Unlocking method Clamping force(kN) Tension force(kN) Blow air Weight(kg)
LQTMJ-2 Gas pressure 1.25  5  X 0.65

Order number ØDN ØD ØD1 ØD2 D3 H ØR
LQTMJ-2 64  55 25  13 6 22  4
  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.

Table With Sensor Type

  1. Air inlet The air inlet positioner is unlocked, the tray can be put in, the air inlet is cut off, the positioner is self-locking, the tray is locked, and the air source is not connected when used
  2. The clamping force of a single positioner is 1.25kN and the tension force is 5kN;
  3. The repeated positioning accuracy of the zero positioning system is <0.005mm
  4. Zero positioning system operating temperature -20℃~80℃
  5. Tooling pallet mounting tilt loading and unloading maximum 6°
  6. Tooling tray installation eccentric loading and unloading maximum ±3mm
