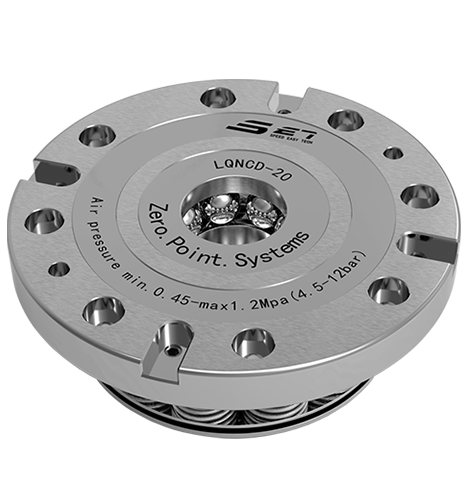

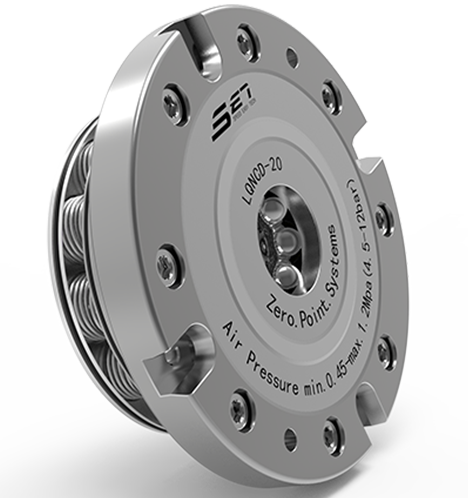

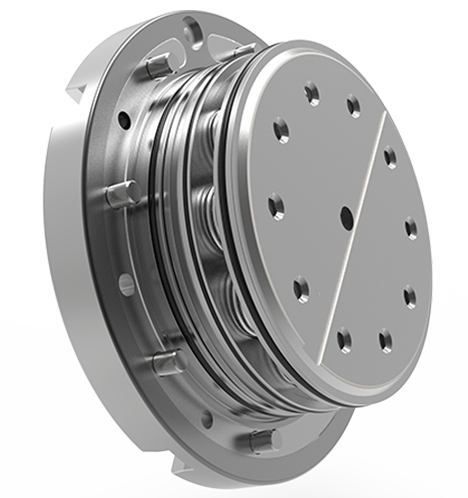

Pneumatic Internalized Type With Angular Positioning Mounting Type

  • Clamping force 17kN
  • Pulling force 55kN
  • Repeated positioning accuracy <0.005mm
  • With angular positioning, can be used single
  • Pneumatic Internalized Type With Angular Positioning Mounting Type
  • Pneumatic Internalized Type With Angular Positioning Mounting Type
  • Pneumatic Internalized Type With Angular Positioning Mounting Type
Detail drawing
  • Pneumatic Internalized Type With Angular Positioning Mounting Type
  • Pneumatic Internalized Type With Angular Positioning Mounting Type
  • Pneumatic Internalized Type With Angular Positioning Mounting Type
Contact us

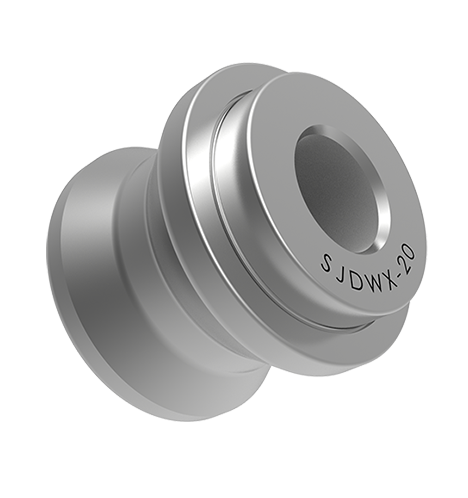

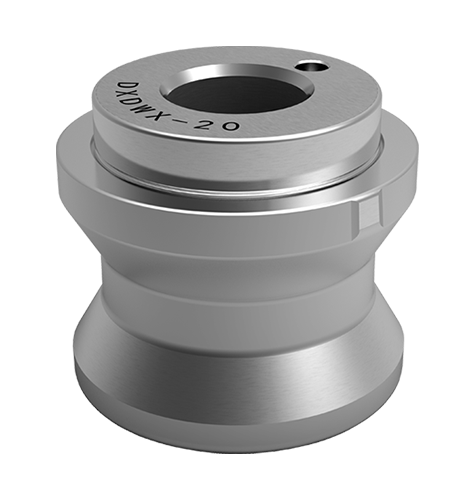

Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories

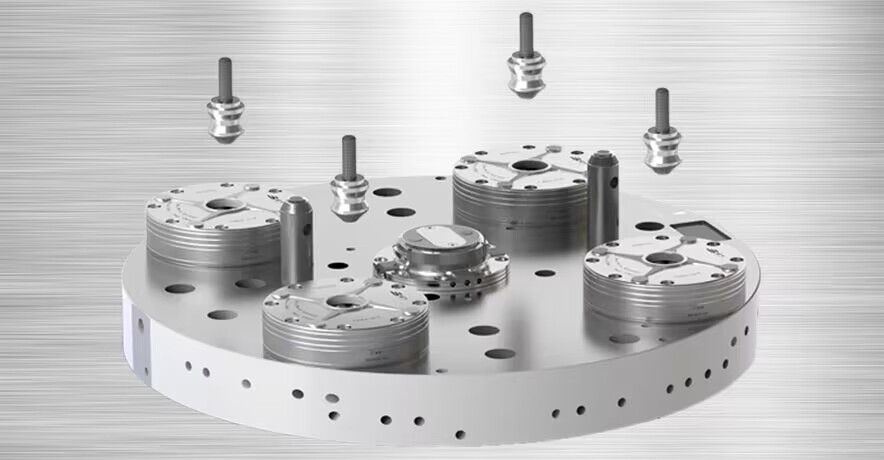

Product Overview

Air pressure built-in zero positioner with angular positioning is unlocked by air pressure and mechanically locked by spring. After locking, the pressure source can be cut off, and the air pressure remains stable.
Repeated positioning accuracy <0.005mm, single positioner clamping force 17kN, tension force 55kN. With angular positioning, can be used singly.
Suitable for machining industries that need to reduce fixture change time, and metal or non-metal cutting fields.

Pneumatic Internalized Type With Angular Positioning Mounting Type
Product Features

  • Air pressure unlocks, spring mechanical lock;

  • Repeated positioning accuracy <0.005mm;

  • High tension and clamping force;

Suzhou SET Industrial Equipment System Co.,Ltd.

  • Material: hardened stainless steel;

  • With angular positioning, can be used singly;

  • The pressure source can be cut off after locking, and the pressure is stable.

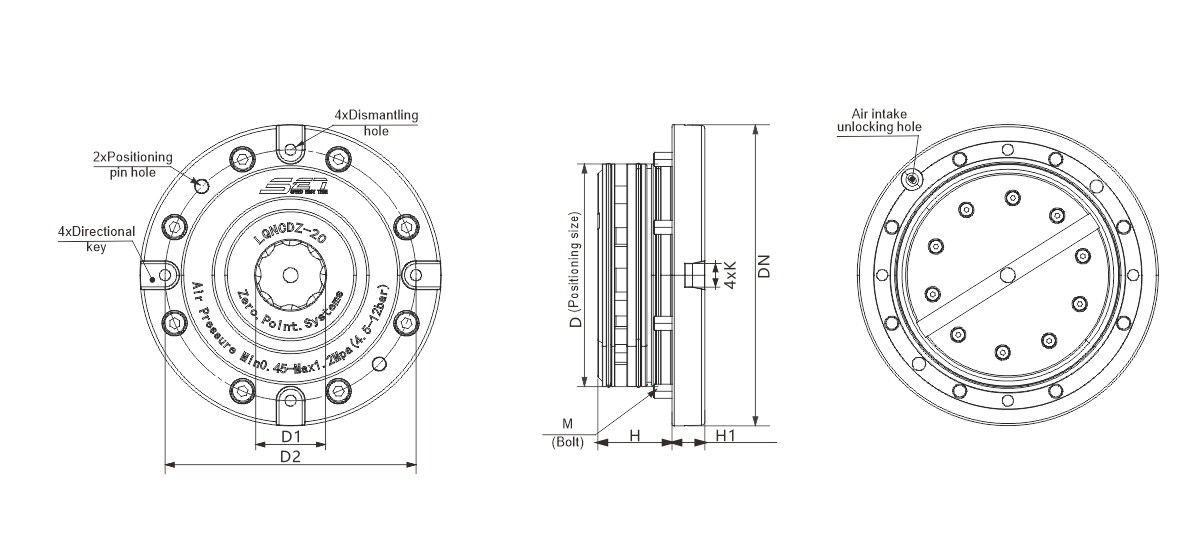

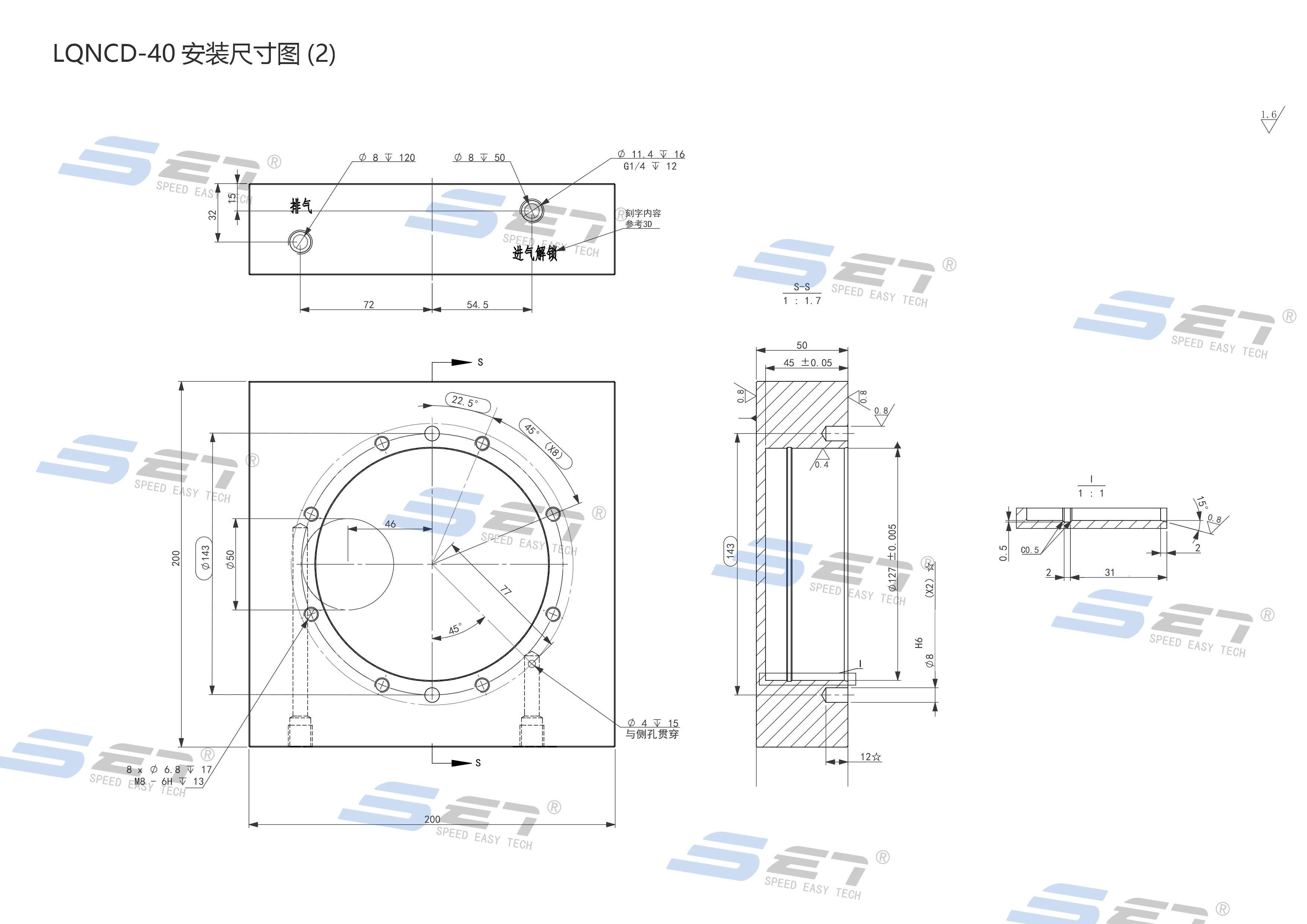

Product dimension diagram

Order number Unlocking method

Clamping force(KN)

Tension force(KN)

 Blow air

Weight(kg)

LQNCD-5

 Atmospheric pressure

5

13

 √

0.5

LQNCD-10

 Atmospheric pressure

10

25

 √

1.4

LQNCD-20

 Atmospheric pressure

17

55

 √

2.6

LQNCD-Z-20

 Atmospheric pressure

17

55

 √

2.6

LQNCD-Z-40

 Atmospheric pressure

40

105

 √

4.2



Order number

øDN

øD

øD1

øD2

 H

H1

(±0.005)

 M K

LQNCD-5

78

58

18

65

21.5

8.5

8xM4

6

LQNCD-10

112

78

22

92

25

10

8xM6

8.14

LQNCD-20

138

102

32

115

34

15

8xM6

10.14

LQNCD-Z-20

 138 102

32

115

 34

15

 8xM6 Conical bond

LQNCD-Z-40

172

127

40

143

45

18

8xM8

Conical bond



  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.

Pneumatic Internalized Type With Angular Positioning Mounting Type

  1. Air pressure built-in zero positioner with angular positioning is unlocked by air pressure and mechanically locked by spring.
  2. After locking, the pressure source can be cut off, and the air pressure remains stable.
  3. Repeated positioning accuracy <0.005mm, single positioner clamping force 17kN, tension force 55kN. With angular positioning, can be used singly.
  4. Suitable for machining industries that need to reduce fixture change time, and metal or non-metal cutting fields.
