Flange Type With Sensor Type

  • Clamping force 17kN, tension force 55kN
  • Repeated positioning accuracy ＜0.005mm
  • Temperature Operating range -20℃~80℃
  • With clamping, relaxed detection interface, output PNP switching signal
  • Flange Type With Sensor Type
  • Flange Type With Sensor Type
  • Flange Type With Sensor Type

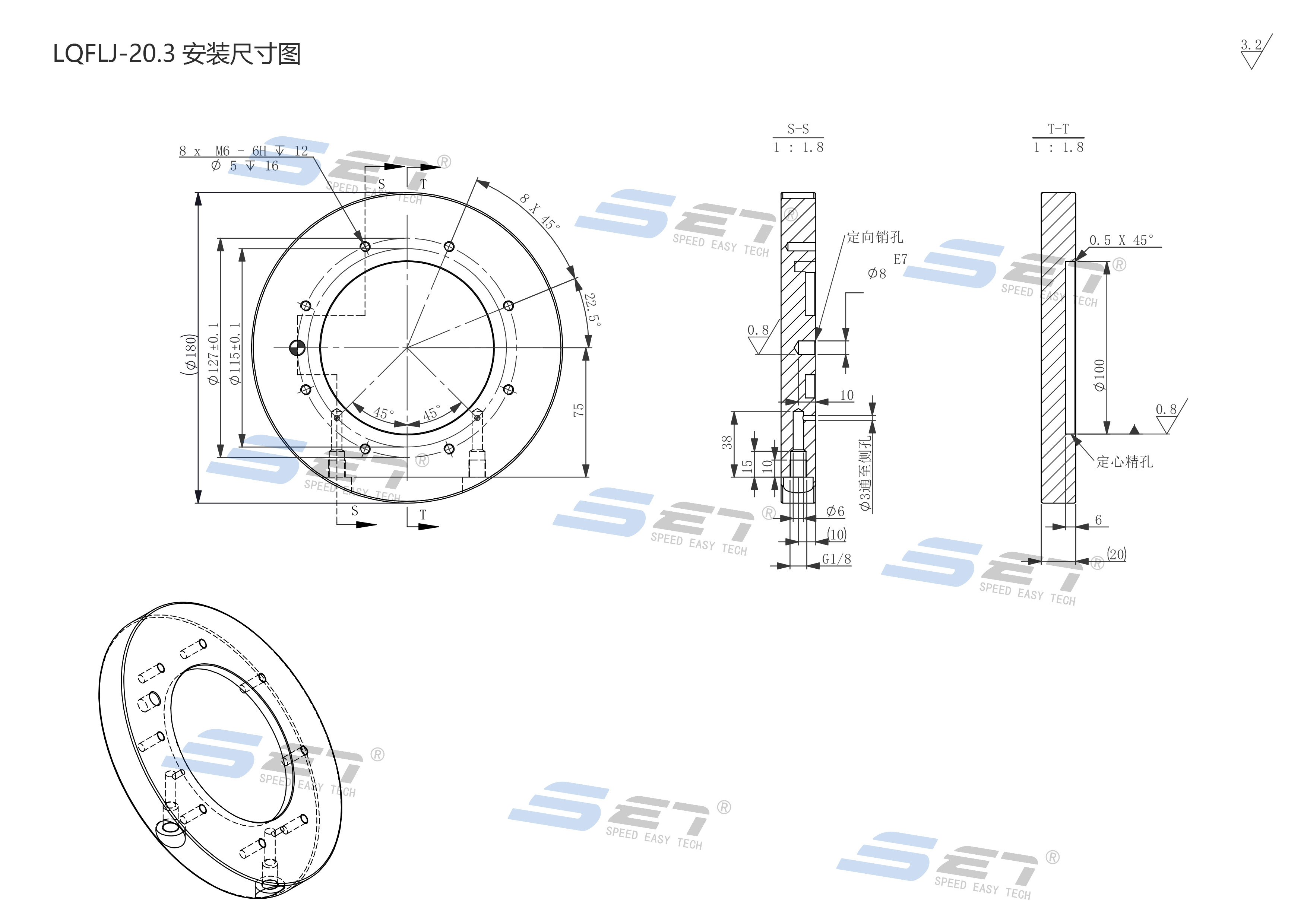

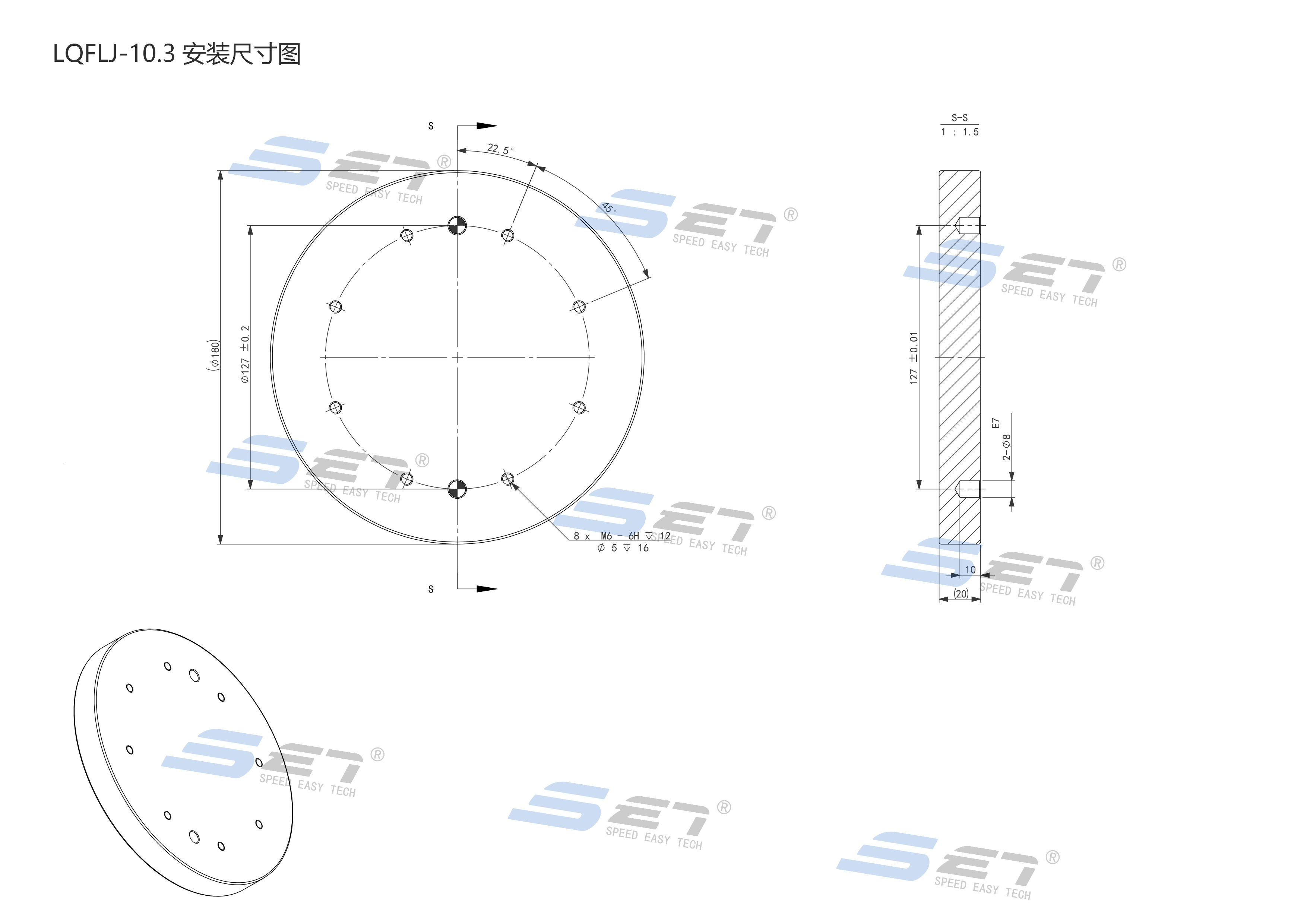

Detail drawing
  • Flange Type With Sensor Type
  • Flange Type With Sensor Type
  • Flange Type With Sensor Type
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories

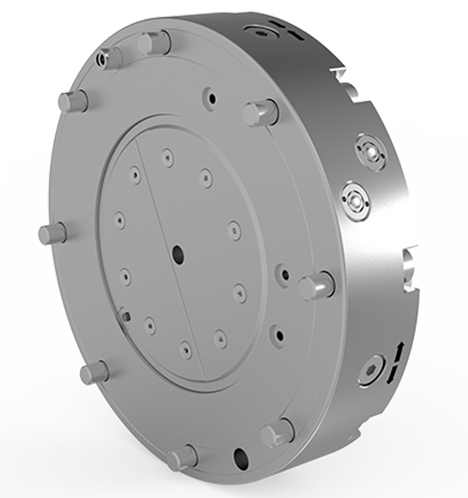

Product Overview

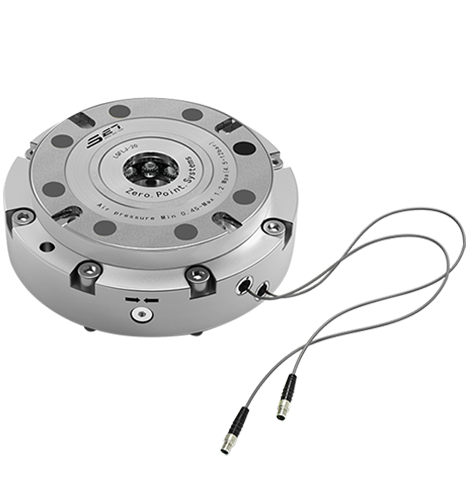

Flange Type With Sensor Type

✔ Flange type zero positioner with sensor is unlocked by air pressure and mechanically locked by spring.

✔ In the locked state, the pressure source can be cut off at any time, and there is no need to connect the air source when using.
✔ With clamping, relaxed detection interface, output PNP switching signal
✔ Repeated positioning accuracy ＜0.005mm, single positioner clamping force 17kN, tension force 55kN.
✔ The exhaust inlet air can increase the clamping force twice on the basis of the original self-locking clamping force, but the exhaust port cannot be blocked, and a pneumatic silencer is required to prevent foreign matter from entering when the pressurization is not used.
✔ The temperature range is -20℃~80℃, suitable for automatic handling and grasping fields and mold change, welding production lines.

Flange Type With Sensor Type
Product Features

  • Air pressure unlocks, spring mechanical lock;

  • Repeated positioning accuracy <0.005mm;

  • When used, the pressure source can be cut off, and the clamping force is stable.

Suzhou SET Industrial Equipment System Co.,Ltd.

  • Material: hardened stainless steel;

  • With clamping, relaxed detection interface, output PNP switching signal;

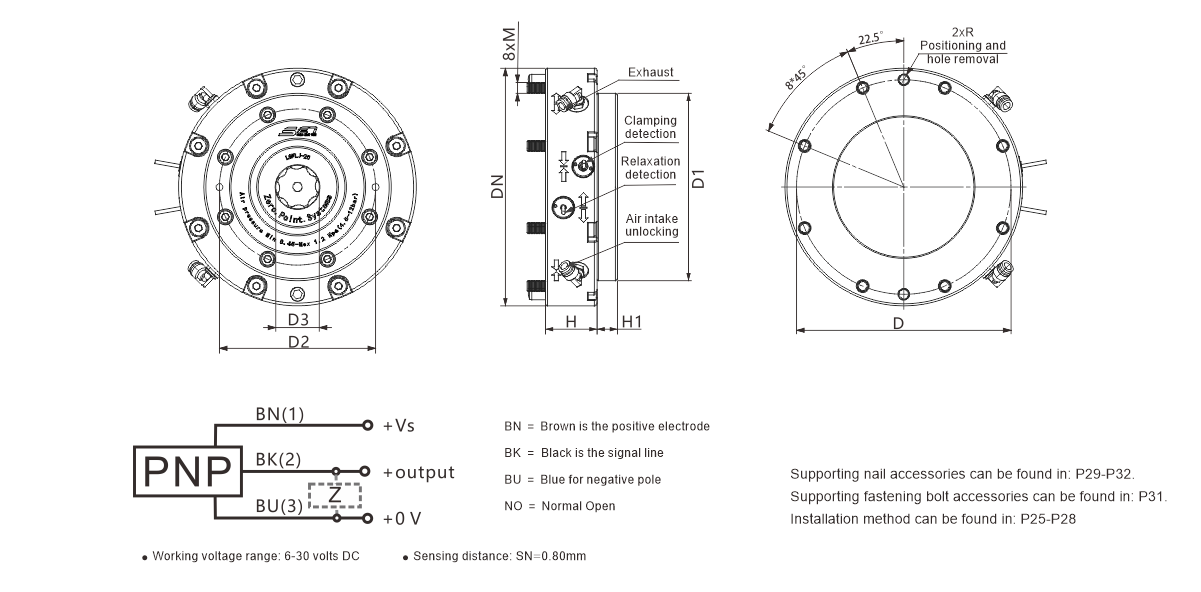

Product dimension diagram

Order number Unlocking method Clamping force(kN) Tension force(kN) Blow air Weight(kg)
LQFLJ-20 Atmospheric pressure 17  55 ※ 8.5
LQFLJ-40 Atmospheric pressure 40 105  ※ 11.5

Order number ØDN ØD ØD1 ØD2 ØD3 H H1(±0.005) M ØR
LQFLJ-20 175   158  138 115  32 38  15  M8 8
LQFLJ-40 212   190 172 143 40 45  18  M10 10
  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.

Flange Type With Sensor Type

  1. Air inlet Air inlet positioner unlocked, tray can be placed, air inlet
  2. Air cut-off, positioner self-locking, tray locking, no need to connect the air source when using;
  3. The exhaust inlet can increase the clamping force twice on the basis of the original self-locking clamping force.
  4. The exhaust outlet can not be blocked.
  5. When no pressurization is used, it is necessary to install a pneumatic silencer to prevent foreign matter from entering;
  6. The clamping force of a single positioner is 17kN and the tension force is 55kN;
  7. The repeated positioning accuracy of the zero positioning system is <0.005mm
  8. Zero positioning system operating temperature -20℃~80℃
  9. Tooling pallet mounting tilt loading and unloading maximum 30°
  10. Tooling tray mounting eccentric loading and unloading maximum ±4mm
  11. The solenoid valve used at the exhaust port needs to have an exhaust function (such as: two-position three-way solenoid valve).
