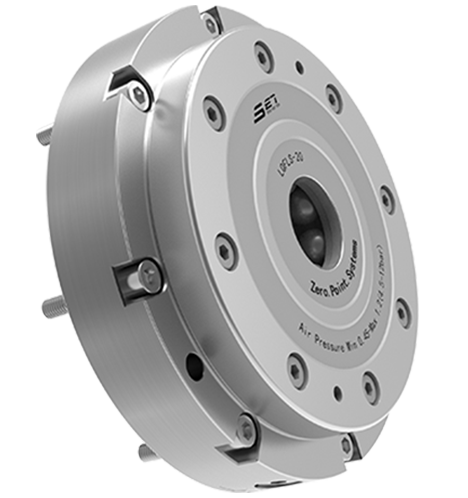

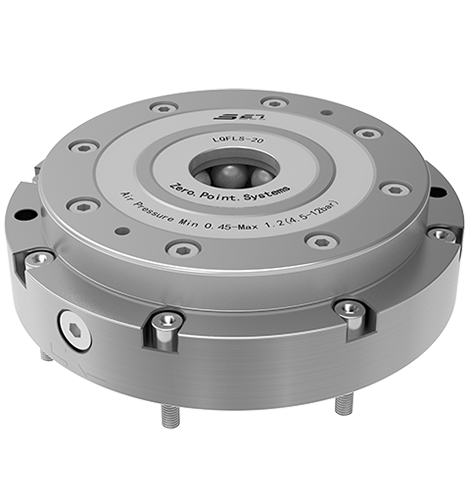

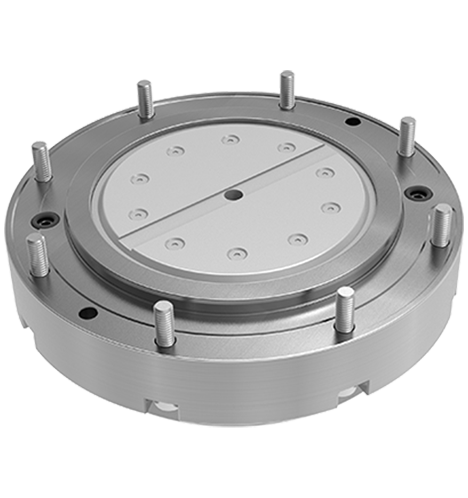

It is unlocked by gas pressure and mechanically locked by spring.
When unlocking the intake port, the locator is unlocked and the tray can be removed; When unlocking the pressure relief port, the locator is self-locking, and there is no need to constantly connect the pressure source during use.
Repeated positioning accuracy ≤0.005mm, single positioner clamping force 17kN, tension force 55kN. It is assembly part, and is easy to install.
Usage temperature range is -20℃~80℃. Suitable for metal or non-metal cutting fields.
Gas pressure unlocks, spring mechanical lock;
Repeated positioning accuracy ≤0.005mm;
The base plate used during installation is thinner and lighter in thickness.
Material: hardened stainless steel;
It is assembly part, and is easy to install;
| Order number | Unlocking method | Clamping force(kN) | Tension force(kN) | Blow air | Weight(kg) |
|---|---|---|---|---|---|
| LQFLD-10 | Gas pressure | 10 | 25 | √ | 4.3 |
| LQFLD-20 | Gas pressure | 17 | 55 | √ | 8.8 |
| LQFLS-10 | Gas pressure | 10 | 25 | √ | 4.3 |
| LQFLS-20 | Gas pressure | 17 | 55 | √ | 8.8 |

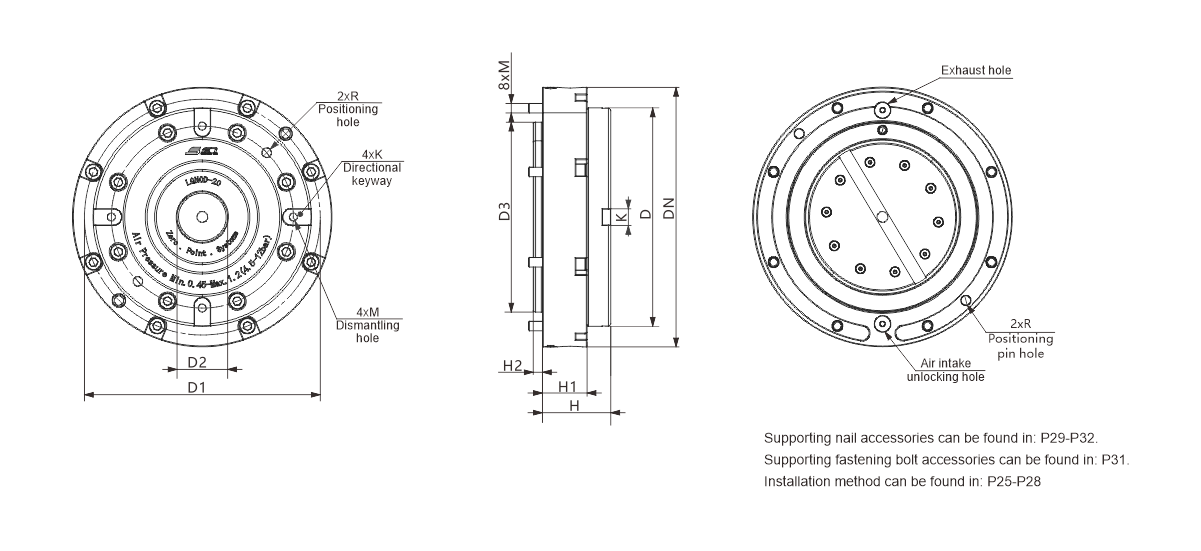

| Order number | ØDN | ØD | ØD1 | ØD2 | ØD3 (h7) | H | H1 | H2 | M | ØR | K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LQFLD-10 | 140 | 112 | 127 | 22 | 100 | 35.5 | 25 | 5.8 | M6 | 8 | 8.14 |
| LQFLD-20 | 164 | 138 | 149 | 32 | 120 | 43.2 | 28.2 | 5.8 | M6 | 6 | 10.14 |
| LQFLS-10 | 140 | 112 | 127 | 22 | 100 | 35.5 | 25 | 5.8 | M6 | 8 | / |
| LQFLS-20 | 164 | 138 | 149 | 32 | 120 | 43.2 | 28.2 | 5.8 | M6 | 6 | / |

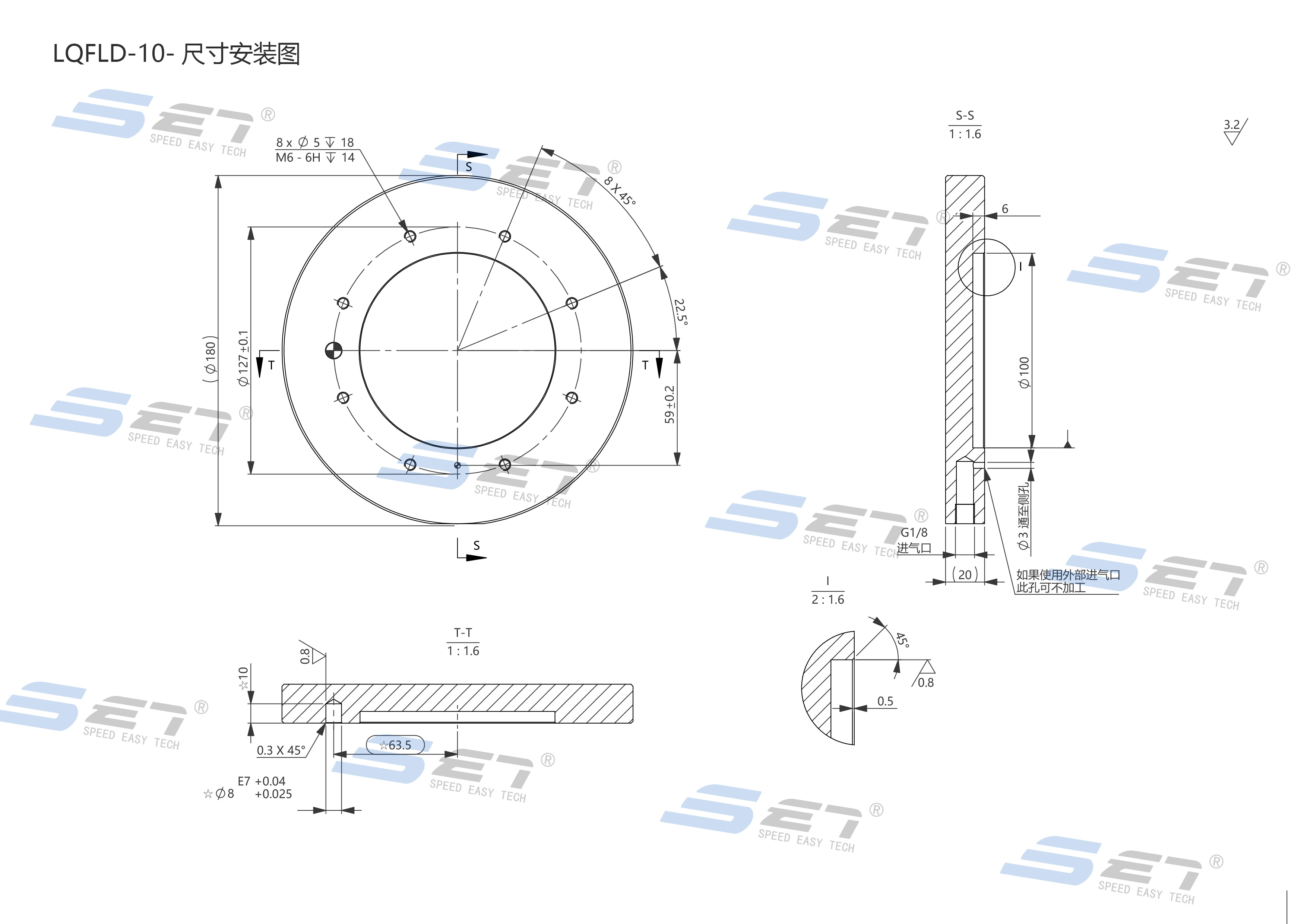

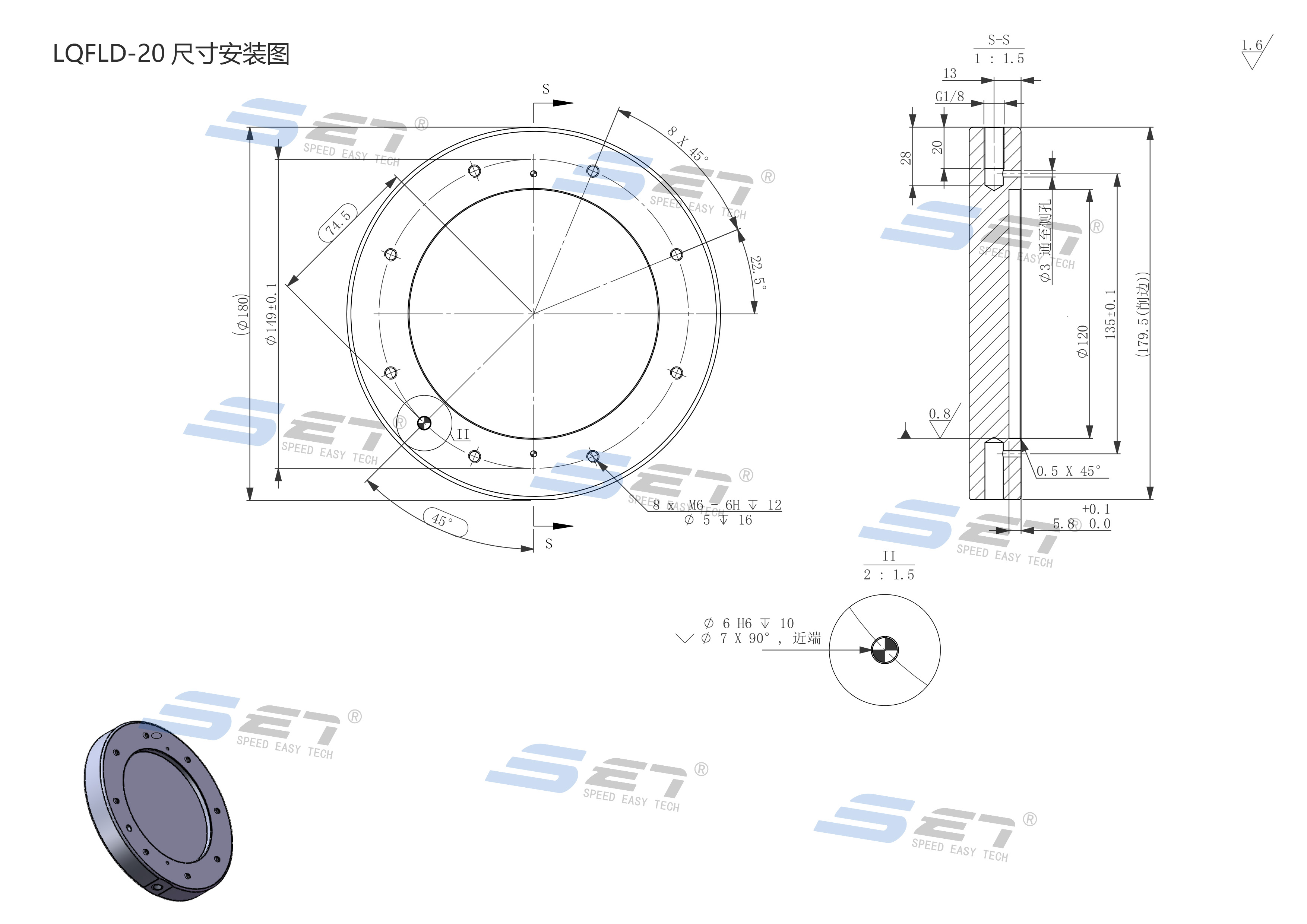

Flange Type Installation Type
