- Tightening force 17kN, pulling force 55kN
- Repeated positioning accuracy <0.005mm
- Center automatic lifting dust cover to prevent iron filings from entering
- Center surface and surrounding automatic diffusion of dust blowing, keep clean
Product parameters
Drawing
Data download
Related accessories
Product Overview

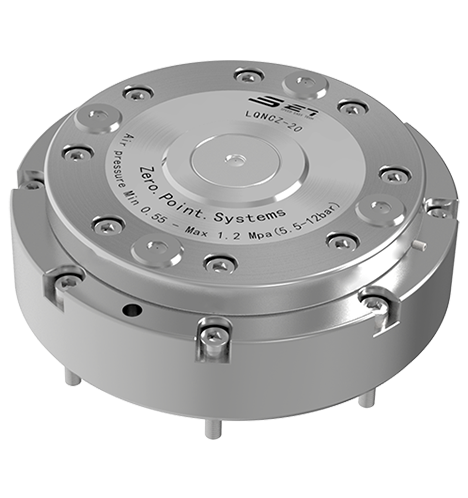

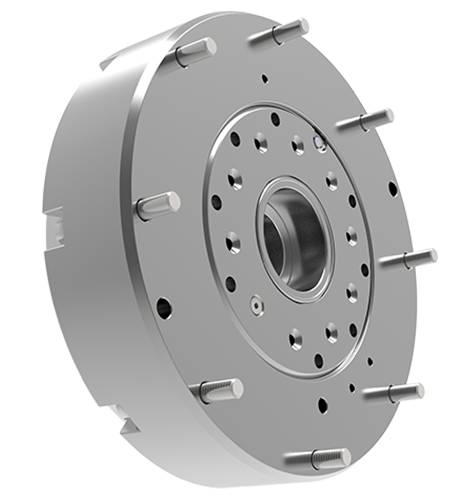

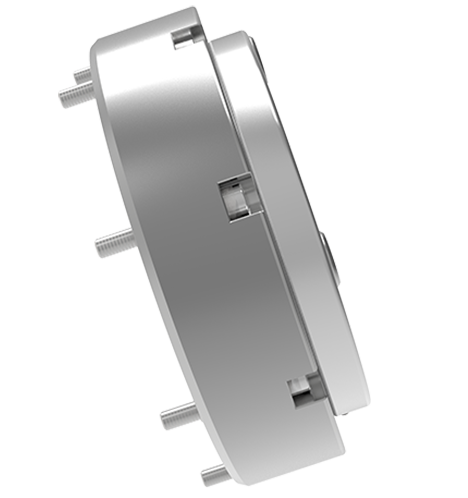

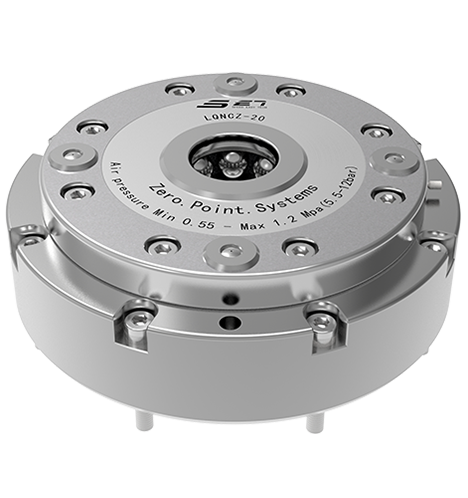

Flange Type Automation Type
✔ Flange flange-type automatic zero positioner is unlocked by air pressure and mechanically locked by spring.
✔ The center has an automatic lifting dust cover to prevent iron filings from entering the interior.
✔ With clamping, unlocking air tightness detection interface;
✔ It has the ability of surface blowing and central blowing.
✔ Repeated positioning accuracy <0.005mm, single positioner clamping force 17kN, tension force 55kN.
✔ Suitable for flexible production line automatic replacement of pallets, metal or non-metal cutting fields.
Product Features
Air pressure unlocks, spring mechanical lock;
Repeated positioning accuracy <0.005mm;
The center surface and around the automatic diffusion of dust blowing, keep clean;
Material: hardened stainless steel;
Center automatic lifting dust cover to prevent iron filings from entering;
With clamping, air tightness detection interface is unlocked.

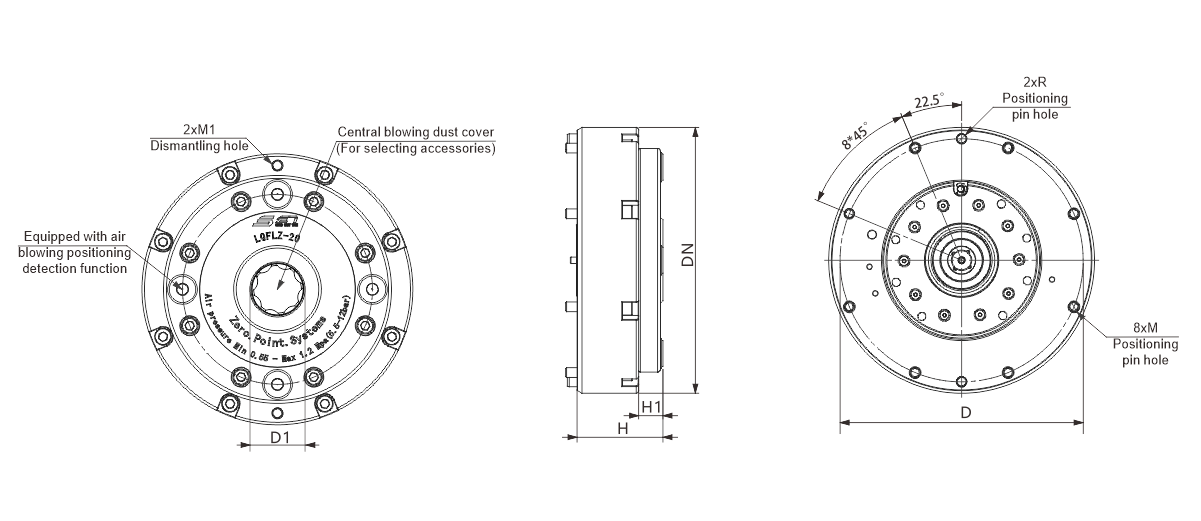

Product dimension diagram
| Order number | Unlocking method | Clamping force(kN) | Tension force(kN) | Blow air | Weight(kg) |
|---|---|---|---|---|---|
| LQFLZ-20 | Atmospheric pressure | 17 | 55 | √ | 6.9 |
| Order number | ØDN | ØD | ØD1 | H | H1(±0.005) | ØR | M | M1 |
|---|---|---|---|---|---|---|---|---|
| LQFLZ-20 | 164 | 150 | 32 | 53 | 15 | 6 | M6 | M8 |
