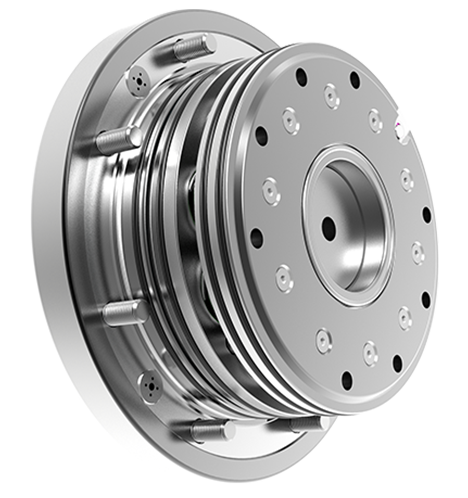

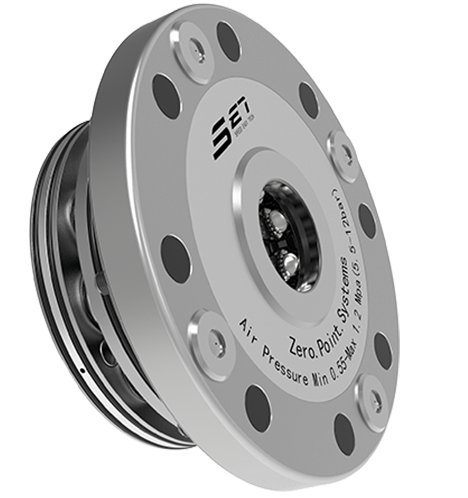

Built-In Automatic Installation Type

  • Clamping force 17kN, tension force 55kN
  • Repetitive positioning accuracy <0.005mm

  • Center automatic lifting dust cover can be optionally selected, for preventing iron filings entering

  • Center and surroundings can automatically rise, spread and blowing, to keep clean

  • Built-In Automatic Installation Type
  • Built-In Automatic Installation Type
  • Built-In Automatic Installation Type
Detail drawing
  • Built-In Automatic Installation Type
  • Built-In Automatic Installation Type
  • Built-In Automatic Installation Type
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories
Product Overview

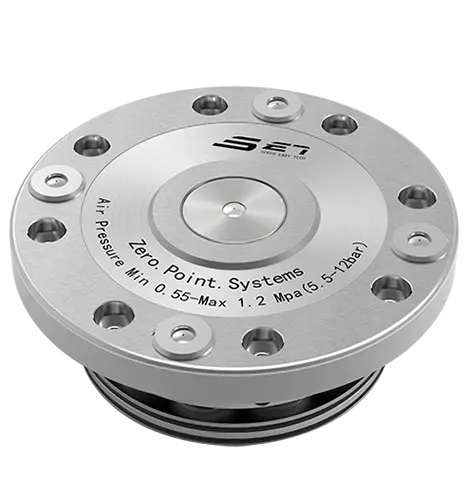

Built-In Automatic Installation Type

✔ The built-in automatic installation zero locator is unlocked by gas pressure

   and mechanically locked by spring.
✔ The center has an automatic lifting dust cover to prevent iron filings from

    entering the interior. With clamping, and unlocking air tightness detection interface;

✔ It has the ability of surface blowing and central blowing.
✔ Repeated positioning accuracy <0.005mm, single positioner clamping force

   17kN, tension force 55kN.
✔ Local point contact, suitable for flexible production line automatic tray replacement.

Built-In Automatic Installation Type
Product Features

  • Air pressure unlock, spring mechanical lock;

  • Repeated positioning accuracy <0.005mm;

  • The center surface and around the automatic diffusion of dust blowing, keep clean;

Suzhou SET Industrial Equipment System Co.,Ltd.

  • Material: hardened stainless steel;

  • Center automatic lifting dust cover to prevent iron filings from entering;

  • With clamping, unlocking air tightness detection interface.

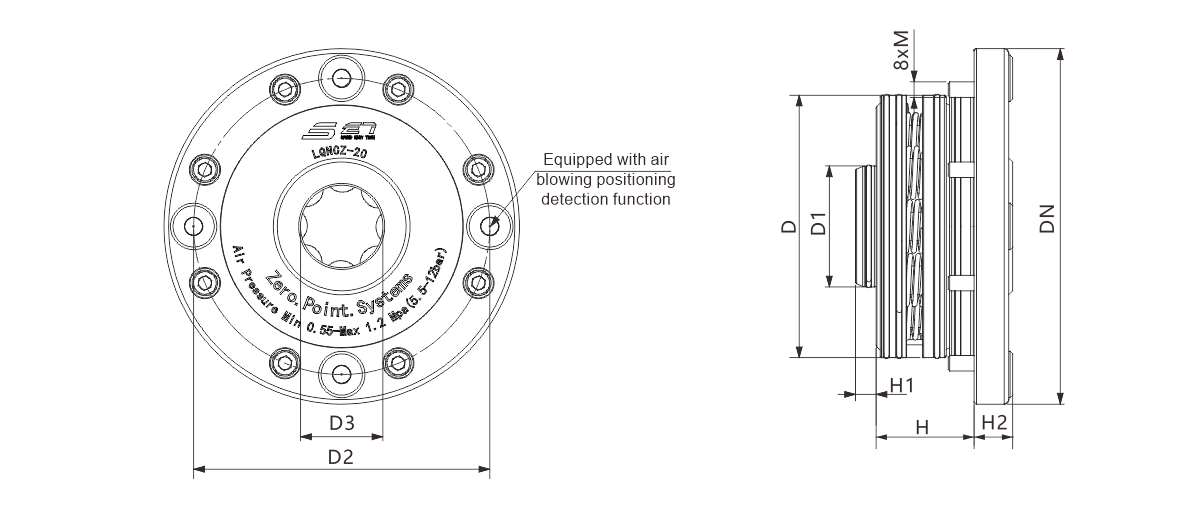

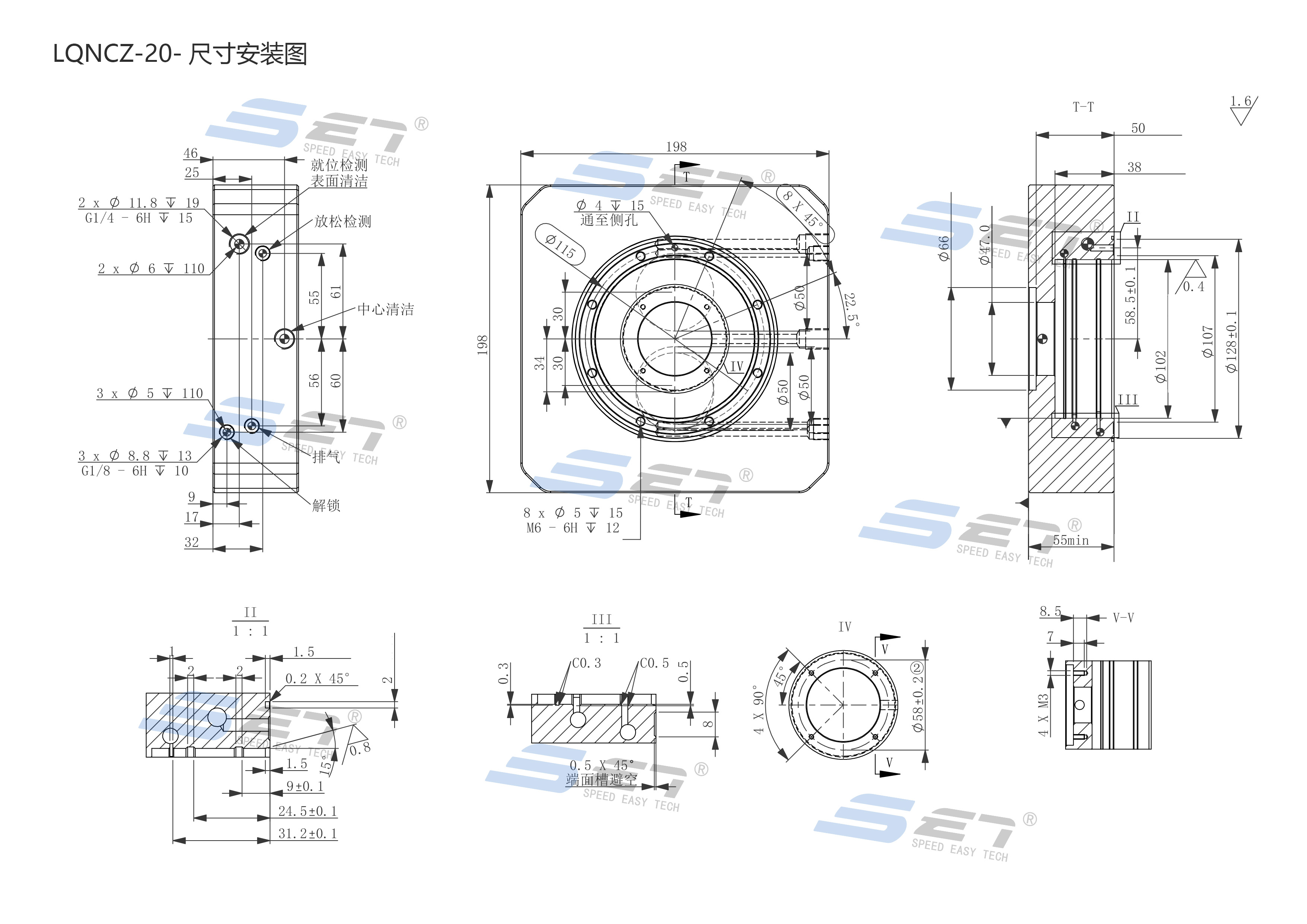

Product dimension diagram

Order number Unlocking method Clamping force(kN) Tension force(kN) Blow air Weight(kg)
LQNCZ-10 Gas pressure 10  25  √ 1.4
LQNCZ-20 Gas pressure 17  55  √ 2.7

Order number ØDN ØD(H7) ØD1 ØD2 ØD3 H H1 H2(±0.005) M
LQNCZ-10 112  78  36 92  22  30  7.8  10  M6
LQNCZ-20 138  102  47 115  32  38  8.3  15  M6
  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.

Built-In Automatic Installation Type

  1. The built-in automatic installation zero locator is unlocked by air pressure and mechanically locked by spring.
  2. The center has an automatic lifting dust cover to prevent iron filings from entering the interior.
  3. With clamping, and unlocking air tightness detection interface.
  4. It has the ability of surface blowing and central blowing.
  5. Repeated positioning accuracy <0.005mm, single locator clamping force is 17kN, tension force is 55kN.
  6. Local point contact, suitable for flexible production line automatic tray replacement.
