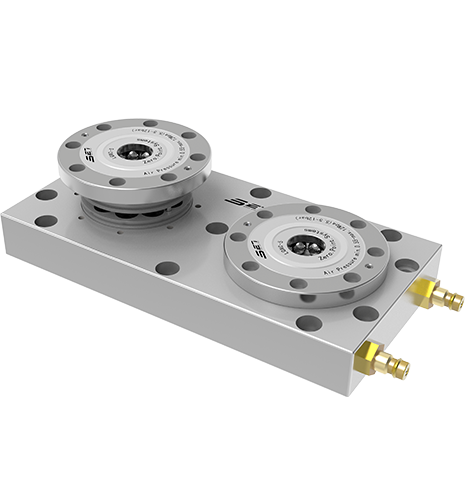

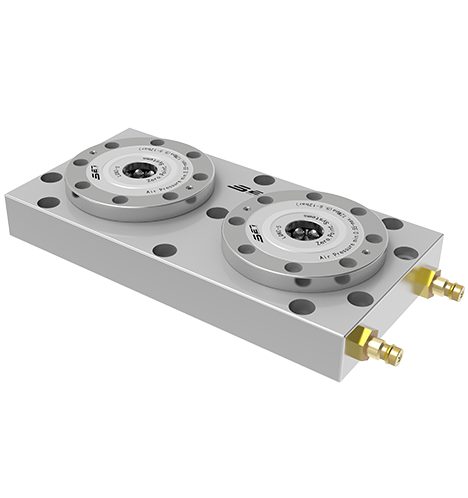

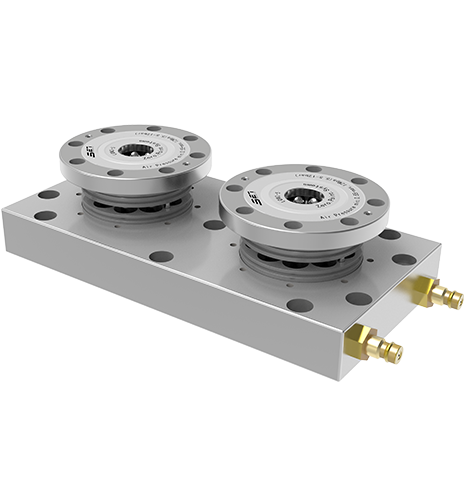

The two-unit zero positioner base plate is 200mm long, 100mm wide, 33.5mm high (including positioner), weighs 3.8kg, is unlocked by air pressure and mechanically locked by spring.
Repeated positioning accuracy <0.005mm, a single two-unit zero positioner base plate clamping force 2 clamping force 2x5kN, tension force 2x15kN, the material can be customized.
It can be locked in the T-slot through the countersunk hole on the substrate, which is convenient and quick to install, but at least two positioning holes are required for accurate positioning.
Suitable for metal or non-metal cutting.
Pneumatic unlock, mechanical lock;
Repeated positioning accuracy <0.005mm
At least two positioning holes for accurate positioning.
Material: Die steel/stainless steel (or customer's choice); Surface and piston hardening treatment;
Through the countersunk hole on the substrate, it is locked on the T-slot, and the installation is simple;
| Order number | Unlocking method | Clamping force(kN) | Tension force(kN) | Blowing chip | Weight(kg) |
|---|---|---|---|---|---|
| Q2GWB-5 | Atmospheric pressure | 2×5 | 2×15 | √ | 3.8 |

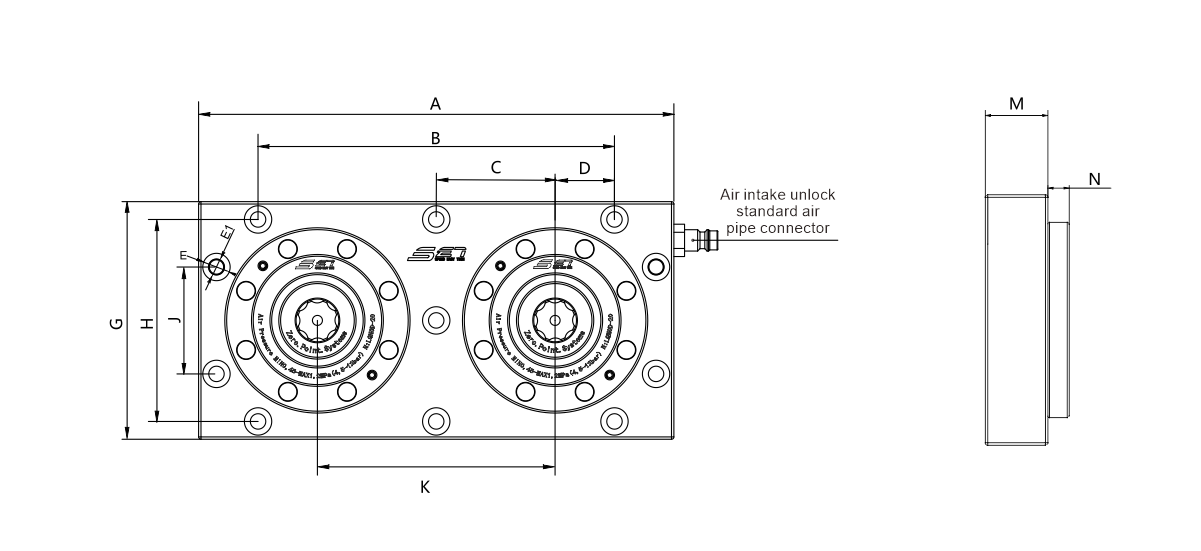

| Dimension number | A | G | C | D | ØE | ØE1 | B | H | J | K(±0.01) | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Q2GWB-5 | 200 | 100 | 50 | 25 | 6.5 | 11 | 150 | 85 | 45 | 100 | 25 | 8.5 |
