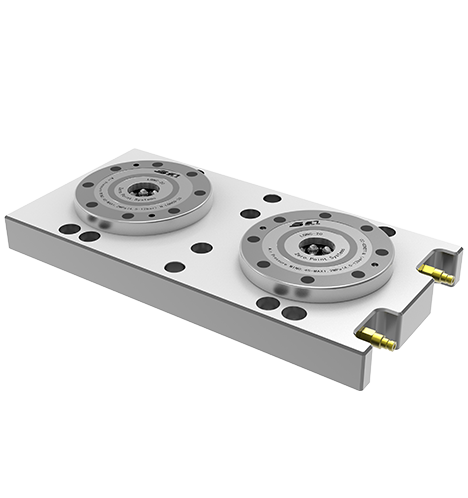

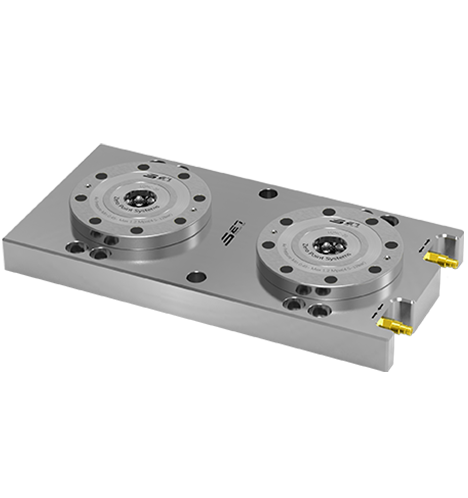

Two Element Zero Locator Base Plate

  • Repeated positioning accuracy < 0.005mm
  • Clamping force 2x17kN, tension force 2x55kN
  • Easy to install
  • Two Element Zero Locator Base Plate
  • Two Element Zero Locator Base Plate
  • Two Element Zero Locator Base Plate

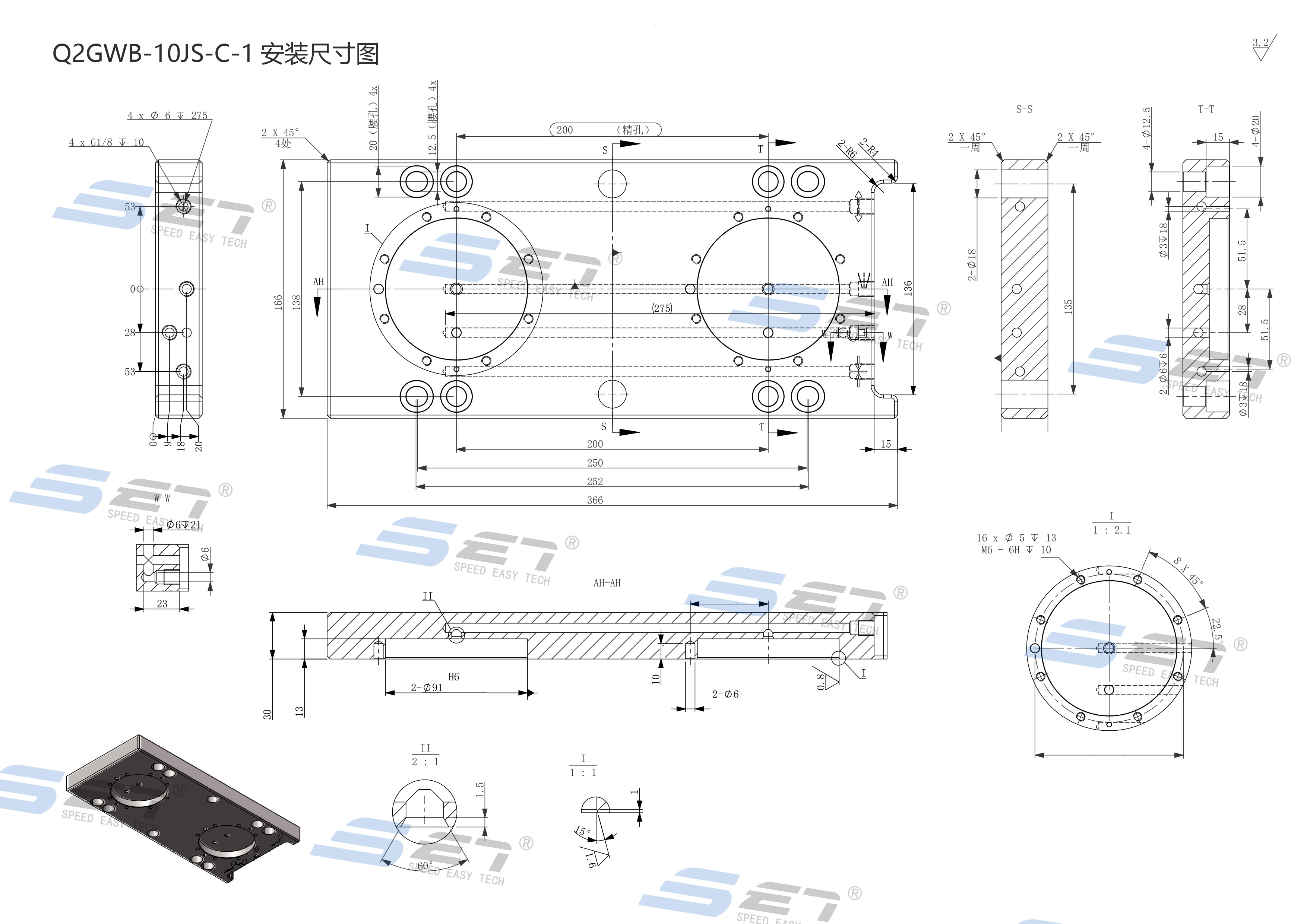

Detail drawing
  • Two Element Zero Locator Base Plate
  • Two Element Zero Locator Base Plate
  • Two Element Zero Locator Base Plate
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories
Product Overview

The base plate of the two-unit zero positioner is 398mm long, 198mm wide, 53mm high (including positioner), and weighs 22.7kg. It can be unlocked by air pressure and hydraulic pressure, and mechanically locked by spring.
Repeated positioning accuracy <0.005mm, a single two-unit zero positioner base plate clamping force 2x10kN, tension force 2x25kN, the material can be customized.
It can be locked in the T-slot through the countersunk hole on the substrate, which is convenient and quick to install, but at least two positioning holes are required for accurate positioning.
Suitable for metal or non-metal cutting.

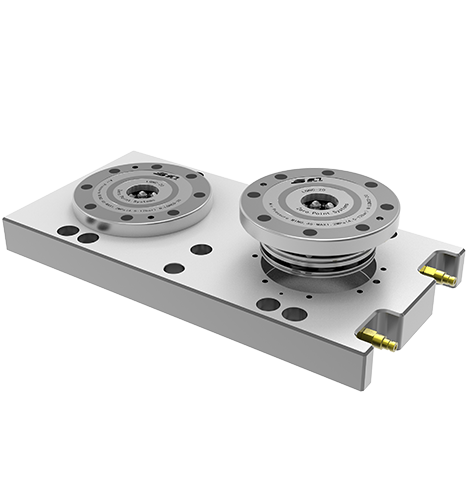

Two Element Zero Locator Base Plate
Product Features

  • Pneumatic/hydraulic unlock, mechanical lock;

  • Surface and piston hardening treatment;

  • Through the countersunk hole on the substrate, it is locked on the T-slot, and the installation is simple;

Suzhou SET Industrial Equipment System Co.,Ltd.

  • Material: Die steel/stainless steel (or customer's choice);

  • Repeated positioning accuracy <0.005mm;

  • At least two positioning holes for accurate positioning

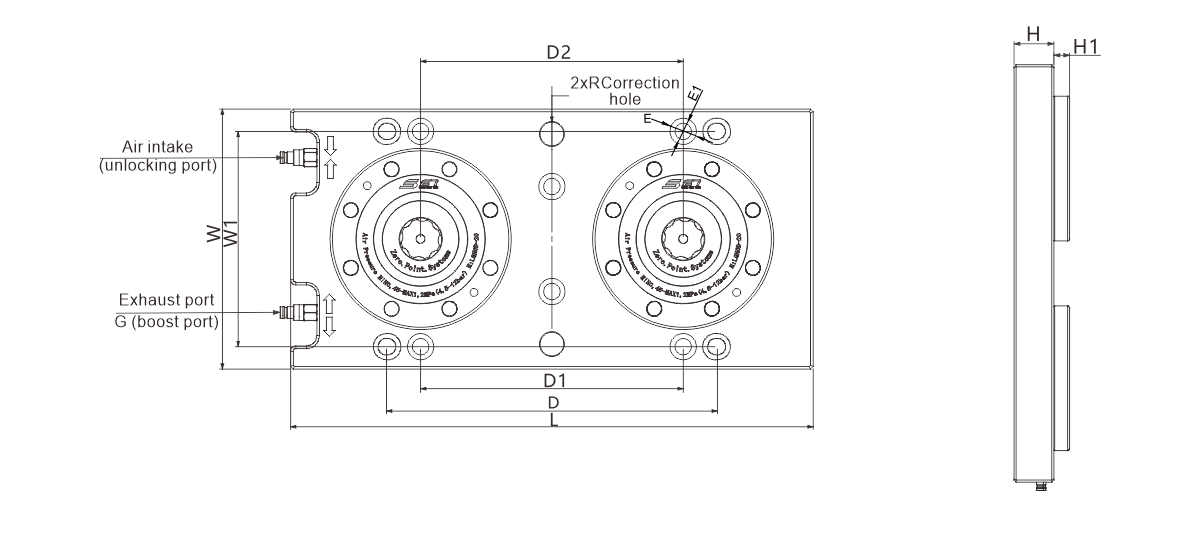

Product dimension diagram

Order number Unlocking method Clamping force(kN) Tension force(kN) Blowing chip Weight(kg)
Q2GWB-10 Atmospheric pressure 2×10 2×25 √ 12.6
Q2GWB-20 Atmospheric pressure 2×17 2×55 √ 22.7

Dimension number L D D1 W1

D2

(±0.01)

 ØE ØE1 W H H1 ØR G
Q2GWB-10 366  250-252 200  138  200  20  12.5  166  30  10  18 G1/8
Q2GWB-20 398  250-252 200  164  200  20  12.5  198  38  15  18 G1/4
  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.

Two Element Zero Positioner Base Plate

  1. The base plate of the two-unit zero positioner is 398mm long, 198mm wide, 53mm high (including positioner), and weighs 22.7kg. It can be unlocked by air pressure and hydraulic pressure, and mechanically locked by spring.
  2. Repeated positioning accuracy <0.005mm, a single two-unit zero positioner base plate clamping force 2x10kN, tension force 2x25kN, the material can be customized.
  3. It can be locked in the T-slot through the countersunk hole on the substrate, which is convenient and quick to install, but at least two positioning holes are required for accurate positioning.
  4. Suitable for metal or non-metal cutting.
