The two-unit zero positioner base plate is 200mm long, 200mm wide, 33.5mm high (including positioner), weighs 7.9kg, is unlocked by air pressure and mechanically locked by spring.
Repeated positioning accuracy <0.005mm, a single two-unit zero positioner base plate clamping force 4x5kN, tension force 4x15kN, the material can be customized.
It can be locked in the T-slot through the countersunk hole on the substrate, which is convenient and quick to install, but at least two positioning holes are required for accurate positioning.
Suitable for metal or non-metal cutting.
Pneumatic unlock, mechanical lock;
Surface and piston hardening treatment;
Through the countersunk hole on the substrate, it is locked on the T-slot, and the installation is simple;
Material: Die steel/stainless steel (or customer's choice);
Repeated positioning accuracy <0.005mm;
At least two positioning holes for accurate positioning.

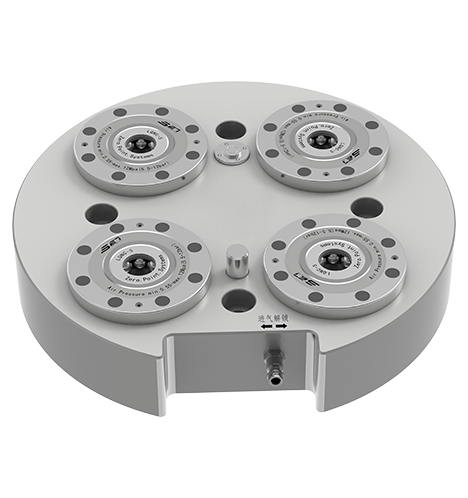

| Order number | Unlocking method | Clamping force(kN) | Tension force(kN) | Blowing chip | Weight(kg) |
|---|---|---|---|---|---|
| Q4GWYB-250 | Atmospheric pressure | 4×5 | 4×13 | √ | 16.5 |
| Q4GWYB-300 | Atmospheric pressure | 4×10 | 4×25 | √ | 25 |
| Q4GWYB-400 |
Atmospheric pressure | 4×17 | 4×55 | √ | 39.5 |

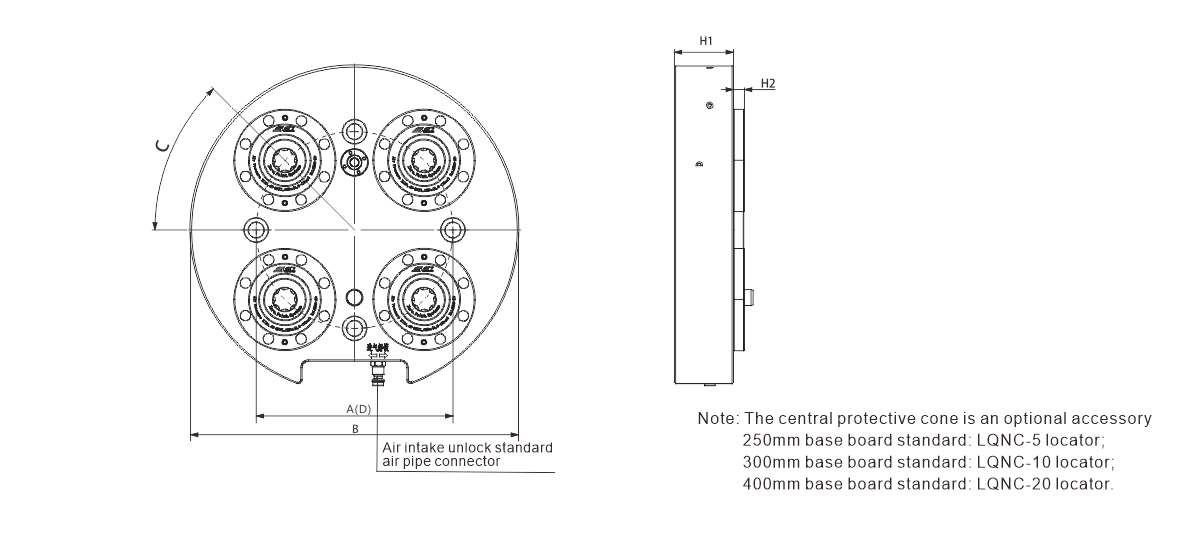

| Dimension number | ØA(±0.01) | ØB | C | ØD | H | H1 |
|---|---|---|---|---|---|---|
| Q4GWYB-250 | 150 | 250 | 45° | 150 | 45 | 8.5 |
| Q4GWYB-300 | 190 | 300 | 45° | 150 | 50 | 10 |
| Q4GWYB-400 |
250 | 400 | 45° | 150 | 45 | 35 |
