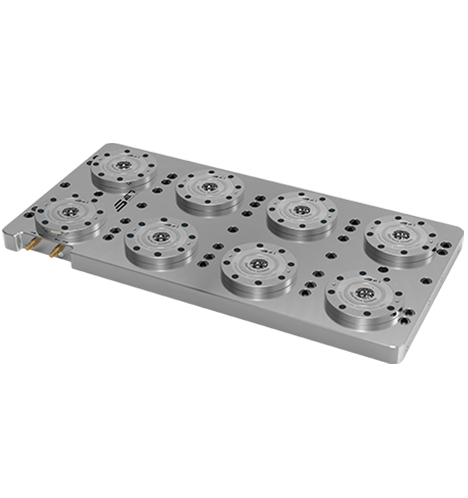

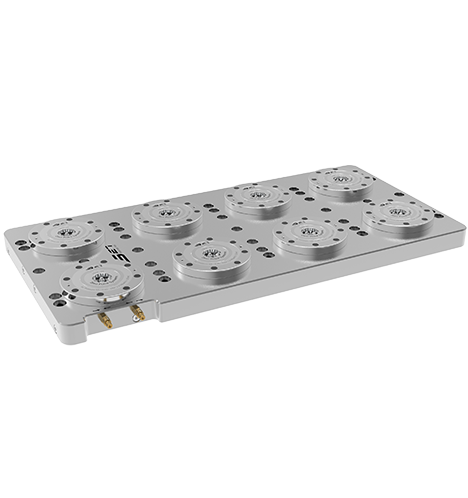

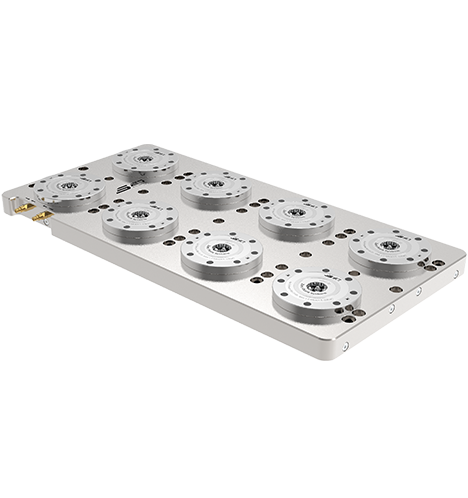

Six units zero positioner base plate length 598mm, width 398mm, height 42mm (including positioner), weight 70kg, can be unlocked by air pressure, hydraulic pressure, and spring mechanical lock.
Repeated positioning accuracy <0.005mm, a single six-unit zero positioner base plate clamping force 6x17KN, tension force 6x55KN, the material can be customized.
It can be locked in the T-slot through the countersunk hole on the substrate, which is convenient and quick to install, but at least two positioning holes are required for accurate positioning.
Suitable for metal or non-metal cutting.
Pneumatic/hydraulic unlock, mechanical lock;
Surface and piston hardening treatment;
Through the countersunk hole on the substrate, it is locked on the T-slot, and the installation is simple;
Material: Die steel (or customer's choice);
Repeated positioning accuracy <0.005mm;
At least two positioning holes for accurate positioning.
| Order number | Unlocking method | Clamping force(kN) | Tension force(kN) | Blowing chip | Weight(kg) |
|---|---|---|---|---|---|
| Q8XGWB-10 | Atmospheric pressure | 8x17 | 8x55 | √ | 121.5 |
| Dimension number | A | B | C | D | SM1 | øE | ØE1 | F | G | H | H1 | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Q8XGWB-10 | 798 | 764 | 382 | 764 | 200 | 20 | 12.5 | 200 | 398 | 38 | 15 | G1/4 |
If you are interested in our products, please consult us
