Product parameters
Drawing
Data download
Related accessories

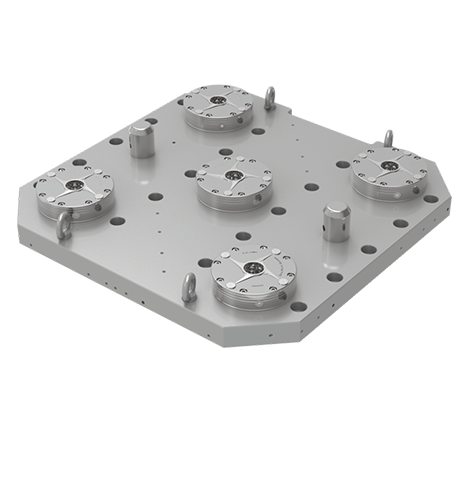

✔ 630mm base plate with a diameter of 630mm, plate thickness of 87mm (including locator), weight of 160.5kg, made of stainless steel material.
✔ Repeated positioning accuracy<0.01mm, single 630mm
✔ This basic version comes standard with the LQNCZ-20-K locator.
✔ Can be customized according to needs, suitable for four axis, lathe, machine tool processing, metal or non-metal cutting fields.
| Order number | Unlocking method | Clamping force(kN) | Tension force(kN) | Blowing chip | Weight(kg) |
|---|---|---|---|---|---|
| Q5GWB-630 | Atmospheric pressure | 5×17 | 5×55 | √ | 160.5 |
| Q5GWB-800 | Atmospheric pressure | 5×17 | 5×55 | √ | 306 |
| Dimension number | ØA | ØB(±0.01) | ØC | ØD | F(±0.01) | E | G | H1 | H2 |
|---|---|---|---|---|---|---|---|---|---|
| Q5GWB-630 | 200 | 400 | 580 | 630 | 400 | 200 | 630 | 52 | 35 |
| Q5GWB-800 | 200 | 500 | 680 | 800 | 400 | 200 | 800 | 62 | 35 |
