Four Unit Pallet

  • Customizable
  • Suitable for four-unit zero positioner base plate
  • Four Unit Pallet
  • Four Unit Pallet
Detail drawing
  • Four Unit Pallet
  • Four Unit Pallet
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories

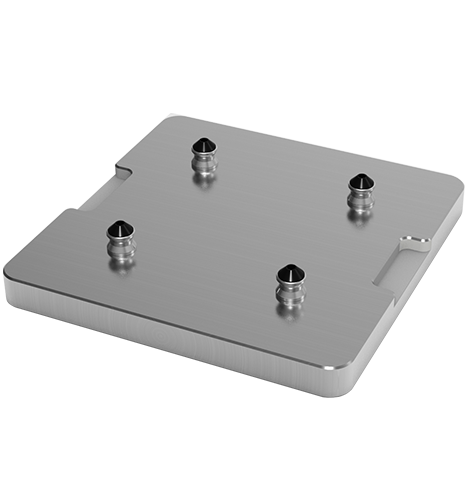

Product Overview

The four-unit tray is 200mm long, 200mm wide and 20mm thick.

Suitable for four unit zero positioner base plate.

Die steel material, can also be customized according to demand.

Four Unit Pallet
Product Features

  • Material: Die steel (or customer's choice);

  • Special requirements can be customized by contacting us.

Suzhou SET Industrial Equipment System Co.,Ltd.

  • Suitable for four-unit zero positioning base plate;

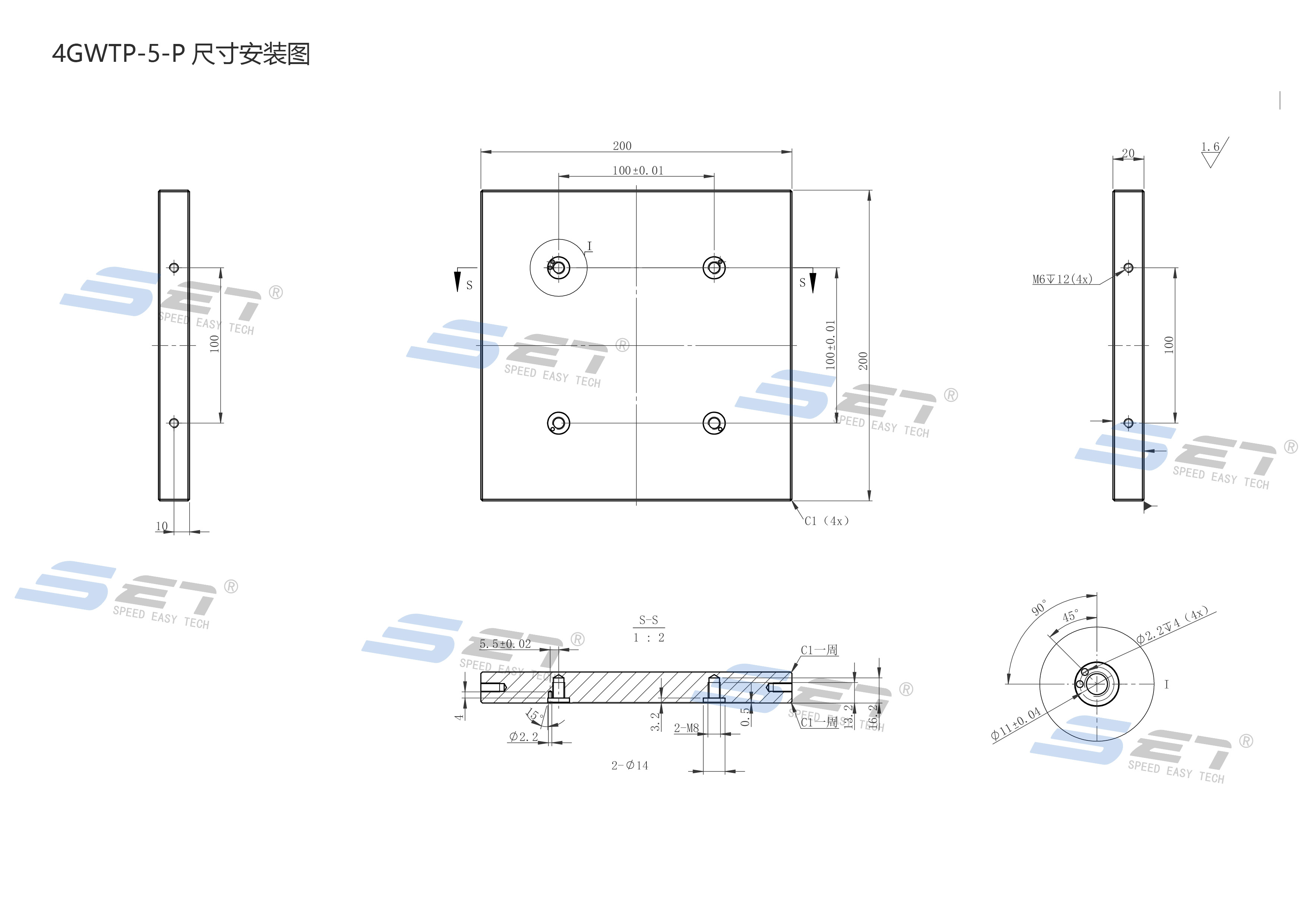

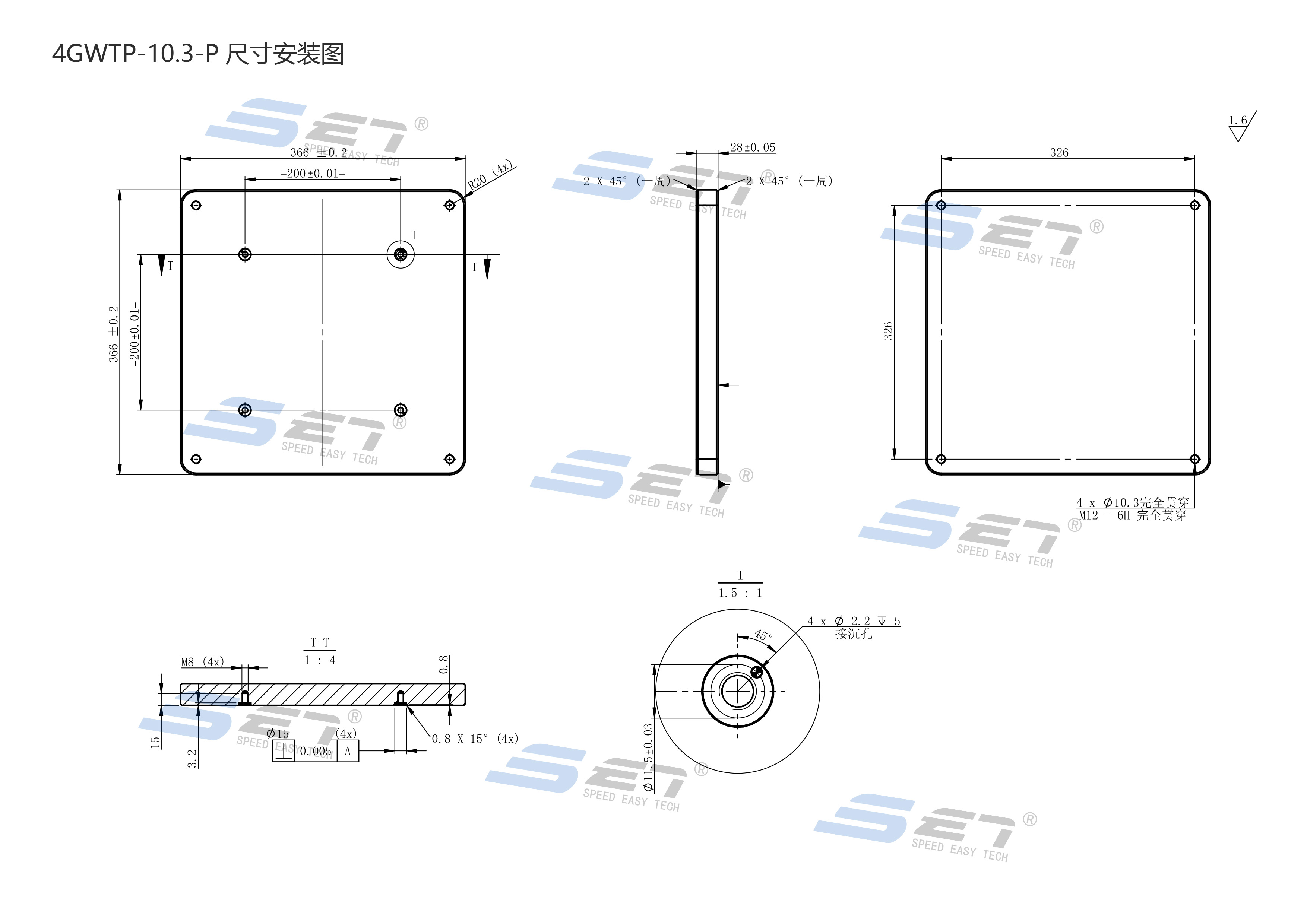

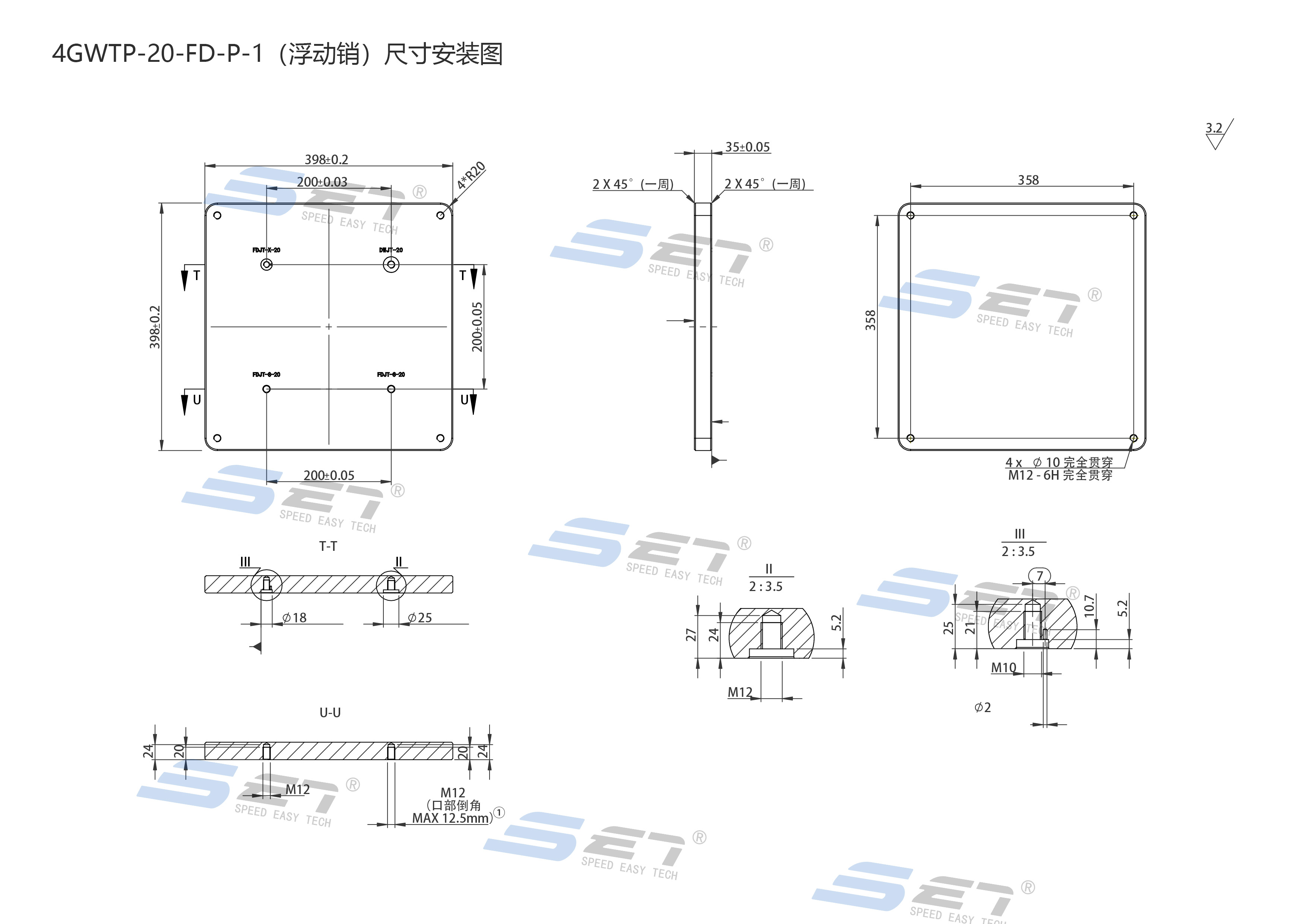

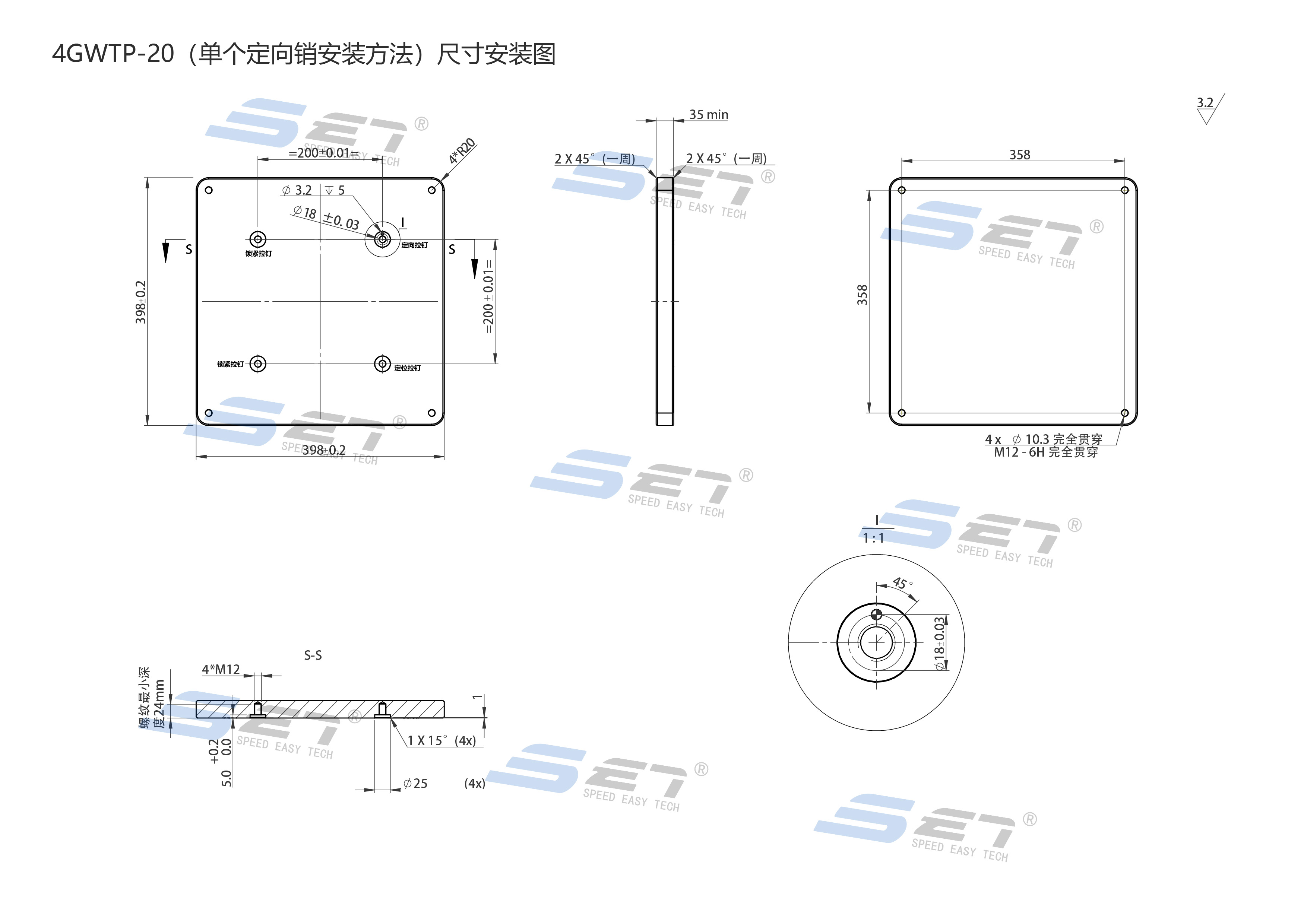

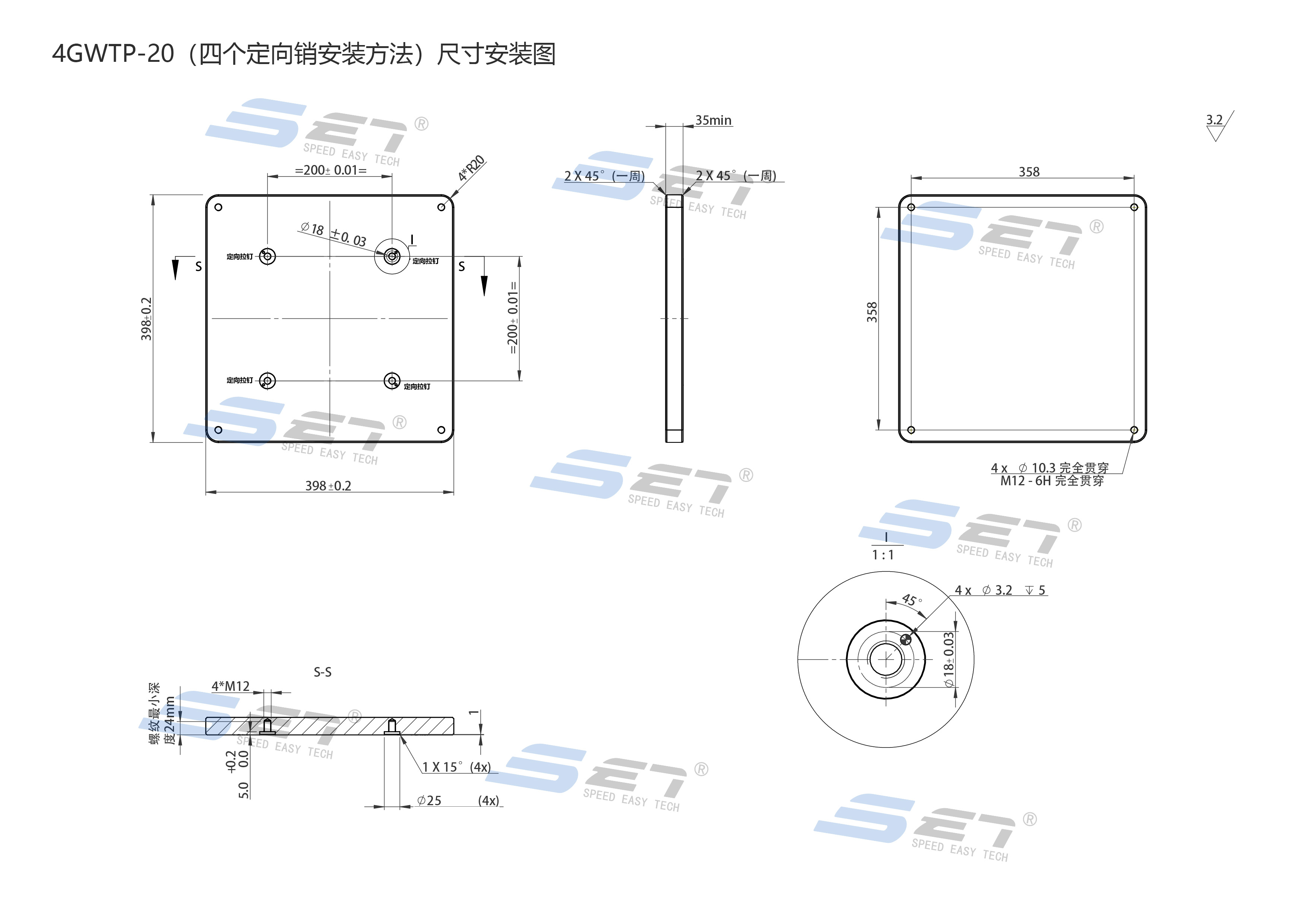

Product dimension diagram

Order number A B SM SM1 T
4GWTP-5 200  200  100  100  20
4GWTP-10 366  366  200  200  28
4GWTP-20 398  398  200  200  28
4GWTP-40 426  426  200  200  38
  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.

Four Unit Pallet

  1. The four-unit tray is 200mm long, 200mm wide and 20mm thick
  2. Suitable for four unit zero positioner base plate
  3. Die steel material, can also be customized according to demand
