● Repetitive positioning accuracy<0.015mm;
● Clamping force 136KN, tightening force 935KN;
● Equipped with in place detection and relaxation detection functions.
Product parameters
Drawing
Data download
Related accessories

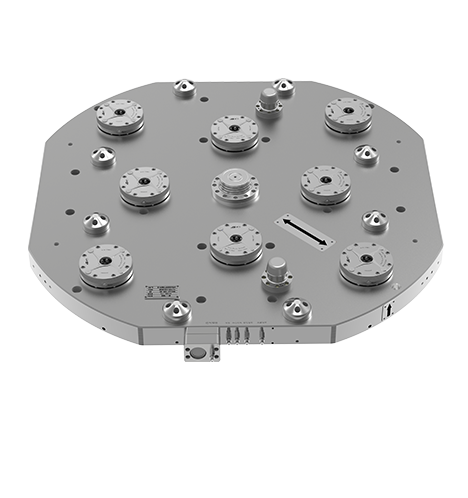

✔ The base plate of the eight unit zero point locator is 1115mm long, 100mm thick (excluding the guide column), weighs 563kg, and is made of stainless steel material;
✔ Repetitive positioning accuracy<0.015mm, single 1200mm base plate;
✔ This basic version comes standard with the LQNCZ-20-K locator.
✔ Can be customized according to needs, suitable for five axis, lathe, machine tool processing, metal or non-metal cutting fields.
Air pressure unlocking, mechanical locking;
Repetitive positioning accuracy<0.015mm;
Suitable for metal or non-metal cutting fields;
Material: stainless steel;
Special requirements can be customized by contacting us;
Suitable for five axis, sleeper, and machine tool machining.
| Order number | Unlocking method | Clamping force(kN) | Tension force(kN) | Blowing chip | Weight(kg) |
|---|---|---|---|---|---|
| Q8GWB-20K-1200 | Atmospheric pressure | 8×17 | 8×55 | √ | 563 |
| Dimension number | A | B | C | ØD | E | F | G | H | I | J | K | L | M | R | W1 | W2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Q8GWB-20K-1200 | 180 | 300 | 500 | 750 | 900 | 950 | 1100 | 1150 | 180 | 1200 | 900 | 1000 | 1100 | 600 | 65 | 35 |
If you are interested in our products, please consult us
