Positioning Pin (Q10S/Q40S)

  • Restriction of freedom in X - and Y-axis directions
  • Short cone ball lock type Q10S, Q40S zero positioner special
  • Positioning Pin (Q10S/Q40S)
  • Positioning Pin (Q10S/Q40S)
  • Positioning Pin (Q10S/Q40S)
Detail drawing
  • Positioning Pin (Q10S/Q40S)
  • Positioning Pin (Q10S/Q40S)
  • Positioning Pin (Q10S/Q40S)
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories

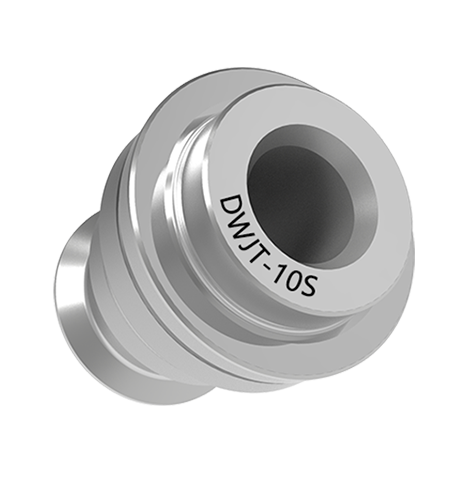

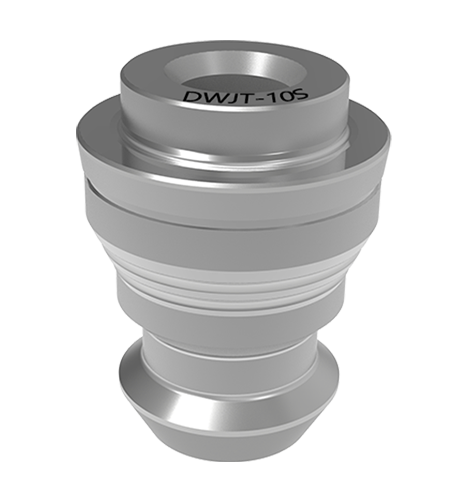

Product Overview

Dowel, surface hardened.
It is 35.5mm high and weighs 80g.
To limit the X-axis, and Y-axis direction of the freedom function.
Suitable for short cone ball lock type Q10S, Q40S zero positioner.

Positioning Pin (Q10S/Q40S)
Product Features

  • Surface hardening treatment;

  • Play a role in restricting the freedom of X and Y directions;

Suzhou SET Industrial Equipment System Co.,Ltd.

  • High precision;

  • Suitable for short cone ball lock type Q10S/Q40S zero positioner.

Product dimension diagram

Order number ØDN ØD1 ØD2 ØD3 H1 H2 Weight(g)
DWJT-10S 28 20 M12 17 10.3  5 30.5 80
DWJT-40S 42 30 M20 20.5 16.5  5 42 240
