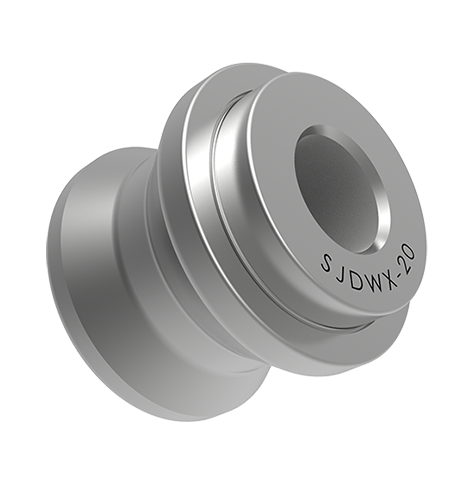

Locking Pin (Q10S/Q40S)

  • Increase tension
  • Ensure that the tray is fully positioned to avoid over-positioning
  • Suitable for short cone ball lock type Q10S, Q40S zero positioner
  • Locking Pin (Q10S/Q40S)
  • Locking Pin (Q10S/Q40S)
Detail drawing
  • Locking Pin (Q10S/Q40S)
  • Locking Pin (Q10S/Q40S)
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories
Product Overview

Locking pin, surface hardened.
Diameter 27.6mm, height 35.5mm, weight 80g.
It not only increases the tensioning force, but also ensures that the tray is completely positioned to avoid over-positioning.
Suitable for short cone ball lock type Q10S, Q40S zero positioner.

Locking Pin (Q10S/Q40S)
Product Features

  • Hardening treatment to increase the role of tension;

  • Suitable for short cone ball lock type Q10S/Q40S zero positioner.

Suzhou SET Industrial Equipment System Co.,Ltd.

  • Ensure that the tray is fully positioned to avoid over-positioning;

Product dimension diagram

Order number Dimension number Match the locator size number ØDN ØD1 ØD2 ØD3 H1 H2 Weight(g)
SJJT-10S Q10S Q10S 27.6  20  M12 17 10.3  5  30.5  80
SJJT-40S Q40S Q40S 41.6  30  M20 20.5 16.5  5  42  240

PRODUCT MAIN VIEW

Please note that the drawings only show the basic version product view. Each derivative modelproduct is included in the subsequent drawings. Please also pay attention to the sample datatable involved in this article.
The drawing shows the standard design device, without considering any dimensions of the follow.
ing options.

  1. The drawing shows the standard design device, without considering any dimensions of thefollowing options.
  2. The drawing shows the standard design device, without considering any dimensions of thefollowing options.
  3. The drawing shows the standard design device, without considering any dimensions of thefollowing options.
  4. The drawing shows the standard design device, without considering any dimensions of thefollowing options.
  5. The drawing shows the standard design device, without considering any dimensions of thefollowing options.
