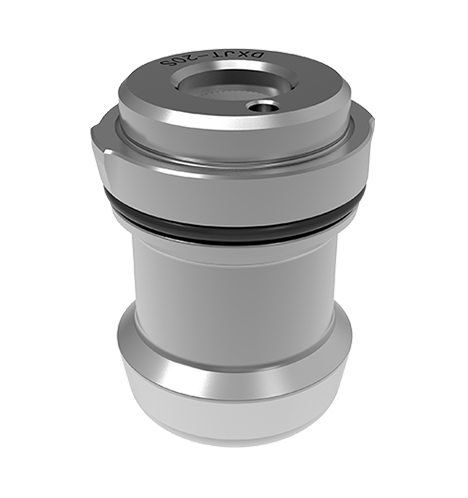

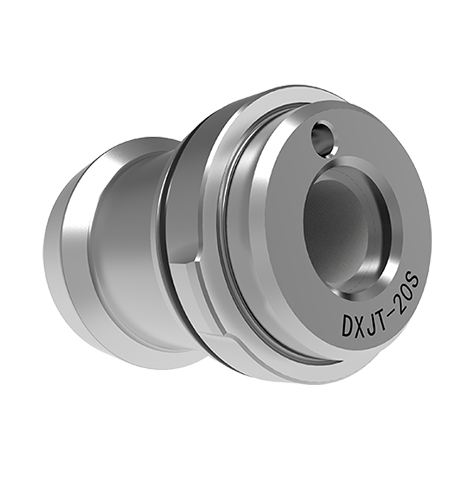

Dowel, surface hardened.
Height 41.7mm (without directional key), weight 140g.
It only limits the degree of freedom of rotation and plays a directional role.
Suitable for short cone ball lock type Q20S zero positioner.
Surface hardening treatment;
Suitable for short cone ball lock type Q20S zero positioner.
Only limit the freedom of rotation, play a directional role;
| Order number | ØDN | ØDN1 (h6) |
ØD2 | H2 | H1 | H3 | ØK | Z | Weight(g) |
|---|---|---|---|---|---|---|---|---|---|
| DXJT-10S | 28 | 20 | M12 17 | 30.5 | 5 | 3 | 2 | 8 | 80 |
| DXJT-40S | 42 | 30 | M12 17 | 42 | 5 | 4 | 3 | 12.5 | 240 |
If you are interested in our products, please consult us
