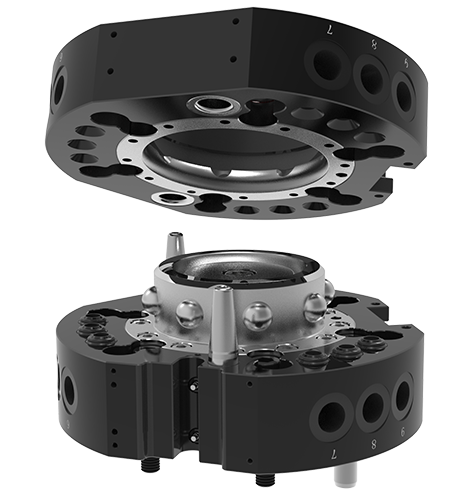

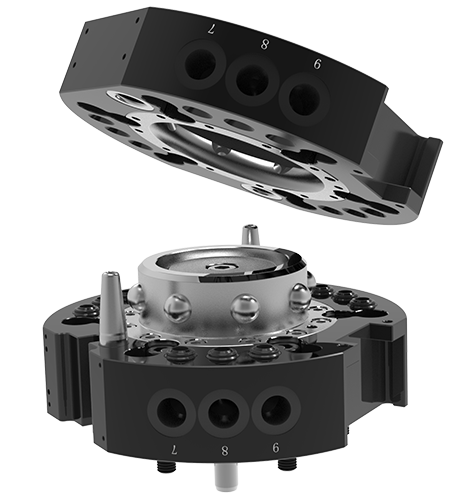

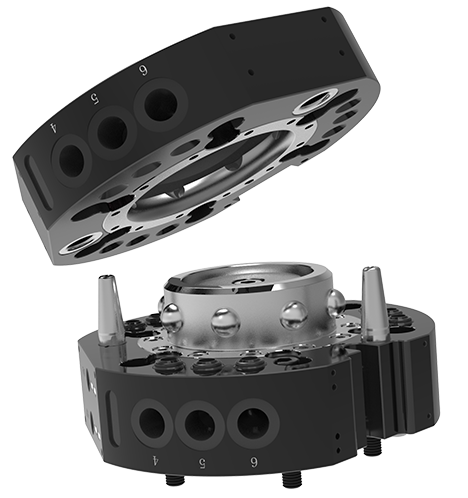

200KG QUICK-CHANGE GRIPPER

  • Repetitive positioning accuracy ≤ ±0.02mm
  • It can carry 200kg workpiece
  • The usage temperature range is 5℃ to 60℃
  • Various power, liquid and gas modules can be optionally selected
  • 200KG QUICK-CHANGE GRIPPER
  • 200KG QUICK-CHANGE GRIPPER
  • 200KG QUICK-CHANGE GRIPPER
  • 200KG QUICK-CHANGE GRIPPER
Detail drawing
  • 200KG QUICK-CHANGE GRIPPER
  • 200KG QUICK-CHANGE GRIPPER
  • 200KG QUICK-CHANGE GRIPPER
  • 200KG QUICK-CHANGE GRIPPER
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories
Product Overview

The quick-change gripper device is unlocked and gripped by gas pressure. Its material is hardened stainless steel.

Its repetitive positioning accuracy ≤ ±0.02mm, locking force is 34730N. It can carry 200kg workpiece. Various power, liquid and gas modules can be optionally selected. It has special insurance to prevent the risk of accidental gas outages.

The usage temperature range is 5℃ to 60℃. Standard configuration can quickly connect to the gas source.

It is suitable for automated handling and assembing.

Suitable for automatic punching, deburring, and other processings.

200KG QUICK-CHANGE GRIPPER
Product Features
  • Gas pressure unlocked, gripped;

  • Repetitive positioning accuracy <±0.02mm;

  • Special insurance to prevent the risk of accidental gas outages;

Suzhou SET Industrial Equipment System Co.,Ltd.
  • Material: hardened stainless steel;

  • Various power, liquid and gas modules can be optionally selected;

  • Standard configuration can quickly connect to the gas source.

Product dimension diagram

Model number HQ-200
 Transportable weight (kg) 200
  Torque Mx (max) Nm 3220
  Torque My (max) Nm 3220
  Torque Mz (max) Nm 2760
  Locking force (N) 34730
Repeatitive positioning accuracy (mm) ±0.02
 Weight (kg) 5.1
Maximum distance when locked (mm) 3
  Air channel air interface thread 9*G3/8”
Maximum allowable XY axis offset (mm) ±2
  Maximum allowable angular offset (℃) ±1
  Minimum ambient temperature (℃)
  Maximum ambient temperature (℃) 60
  Minimum working pressure (bar) 4.5
  Maximum working pressure (bar) 7
