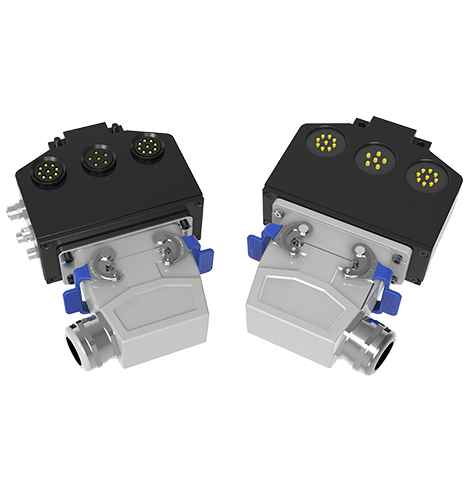

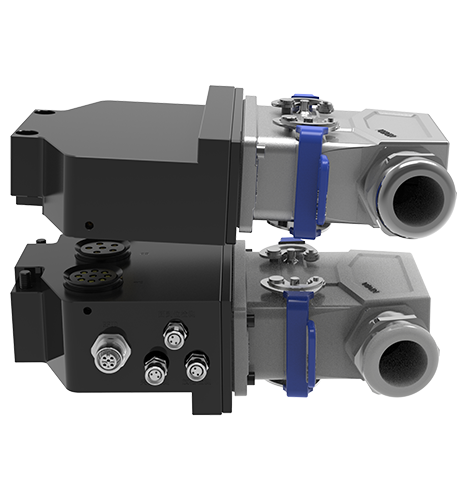

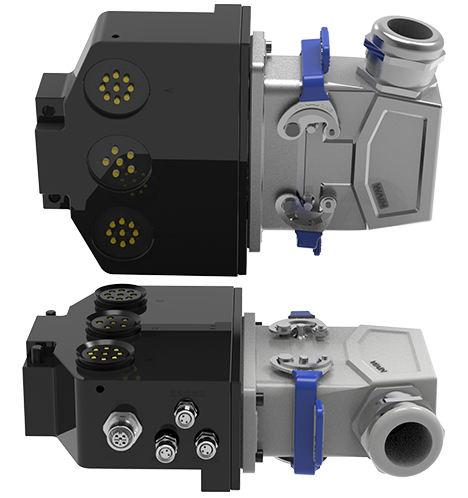

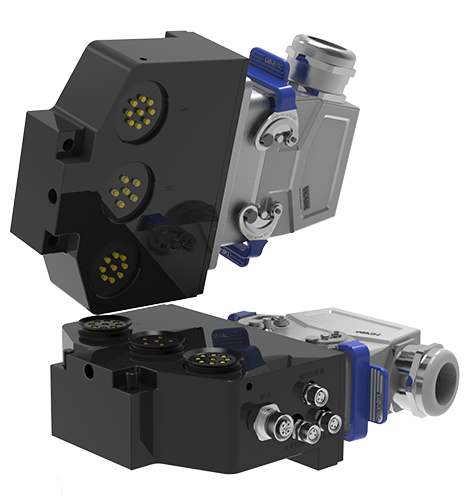

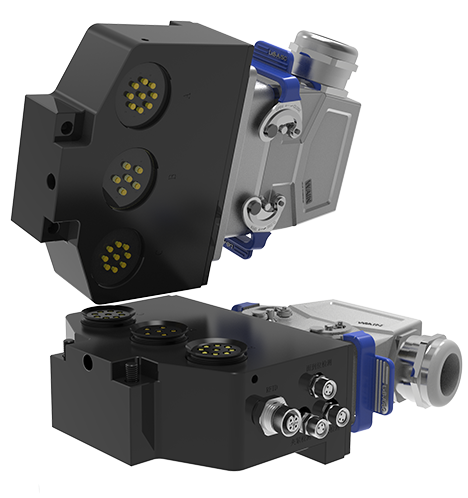

Product Overview

Its material is alimonum alloy.

Its nominal voltage is 380V/220V, nominal current is 20A/3A. It has plug-in signal pin, and the amount of pins is 24. It has small insertin-withdrawal force,  small contact resistance, and better contact. The signal pin of this electrical module can be quickly replaced individually. So you don't need to dismantle the entire module. The dial switch is standard, and it can identify tools.

It is suitable for automated handling and assembing.

It is suitable for automatic punching, deburring, and other processings.

ELECTRICAL MODULE
Product Features
  • Plug-in signal pin;

  • The signal pin of this electrical module can be quickly replaced individually. So you don't need to dismantle the entire module;

  • It is suitable for automated handling and assembing;

Suzhou SET Industrial Equipment System Co.,Ltd.
  • Small insertin-withdrawal force,  small contact resistance, better contact;

  • The dial switch is standard, and it can identify tools;

  • It is suitable for automatic punching, deburring, and other processings.

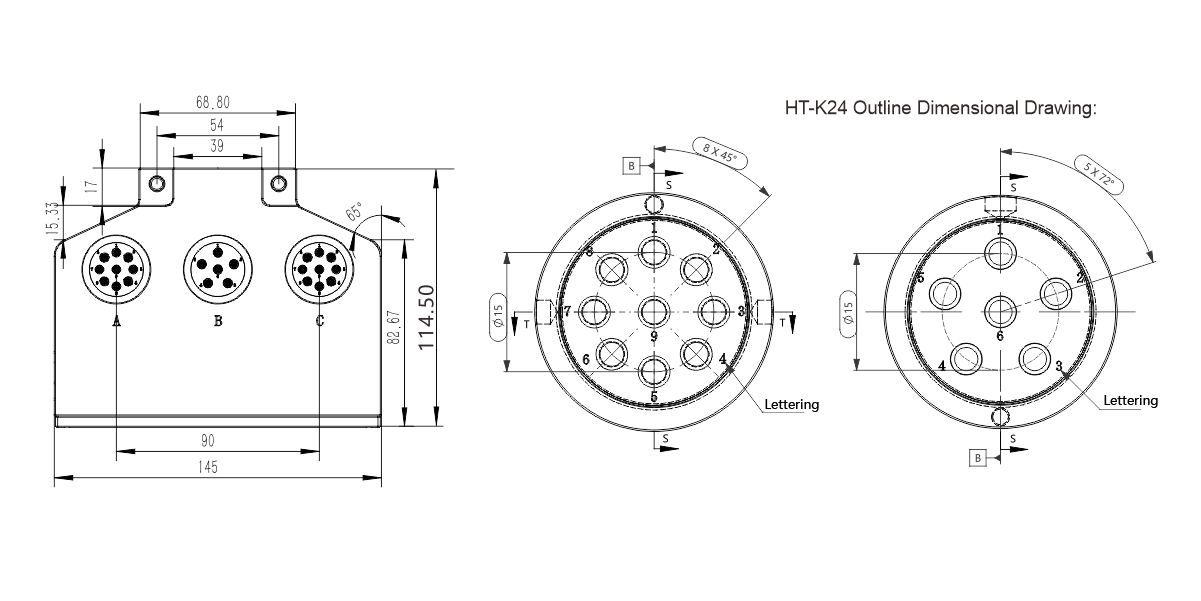

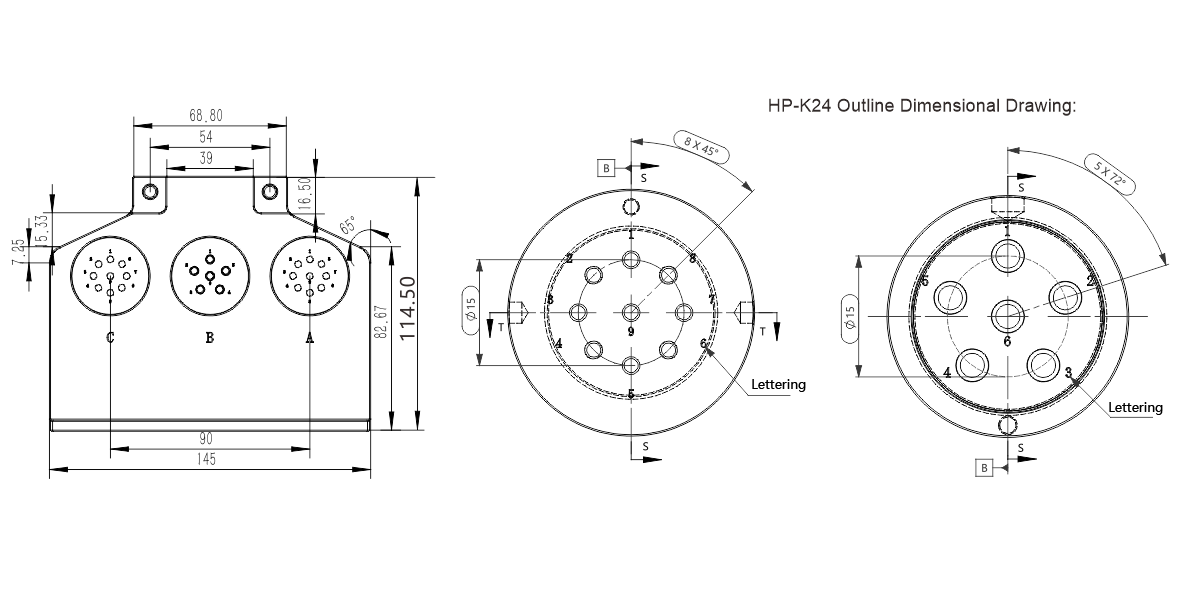

Product dimension diagram

Model number Specification Weight (kg) Material

Amount of pins (core)

Optional model

 Robot side HT-K24

20A

380V

6-pin

1.2 Aluminum alloy 24-pin

HQ-200

3A

220V

18-pin

  Tool side HP-K24

20A

380V

6-pin

1.2 Aluminum alloy 24-pin

SQ-200T

3A

220V

18-pin
