Fixed Flange

  • Used to mount the countertop mounted zero point positioner on the machine table
  • Suitable for different T-slot size table
  • Fixed Flange
  • Fixed Flange
  • Fixed Flange
Detail drawing
  • Fixed Flange
  • Fixed Flange
  • Fixed Flange
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories
Product Overview

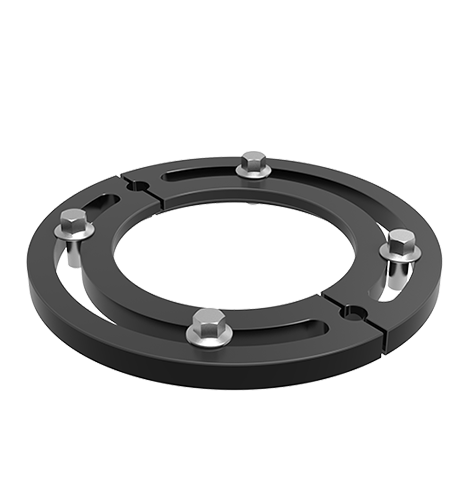

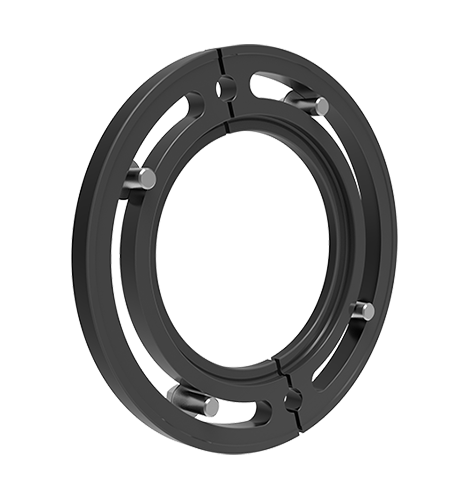

Fixed flange, P20, QPQ salt bath nitriding surface.
Diameter 198mm, thickness 13.5mm (without bolts).
Used to mount the table-mounted zero point positioner (LQTMS) on the machine table.
Can be used for different T-slot size tables.

Fixed Flange
Product Features

  • Fixed flanges are used for mounting mesa type (LQTMS) on the machine table;

Suzhou SET Industrial Equipment System Co.,Ltd.

  • Suitable for different T-slot sizes of the table.

Product dimension diagram

Order number Dimension number ØD ØDB ØLK ØL M H ØE Matching bolt
GDFL-5 Q5 120  69.5 88 96.5 8.5 9 79.4 M8
GDFL-10 Q10 170  100 127 167.5 10.5 11.5 113 M10
GDFL-20 Q20 198  128 155 137.5 12.5 13.5 139 M12
