Protection Plug

  • Diameter 31.8mm, weight 45g
  • Suitable for straight column ball lock zero locator
  • Protection Plug
  • Protection Plug
  • Protection Plug
  • Protection Plug
Detail drawing
  • Protection Plug
  • Protection Plug
  • Protection Plug
  • Protection Plug
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories
Product Overview

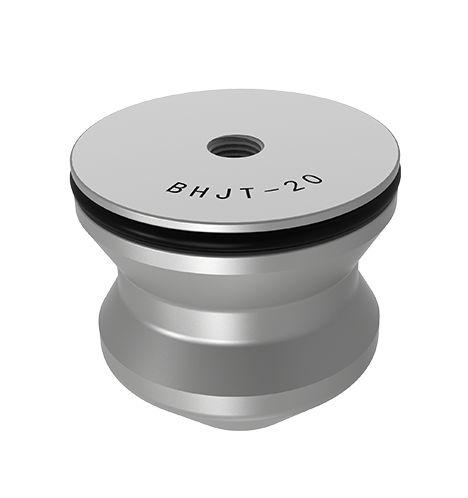

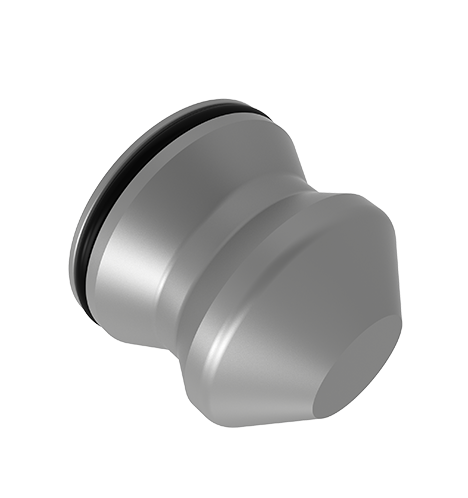

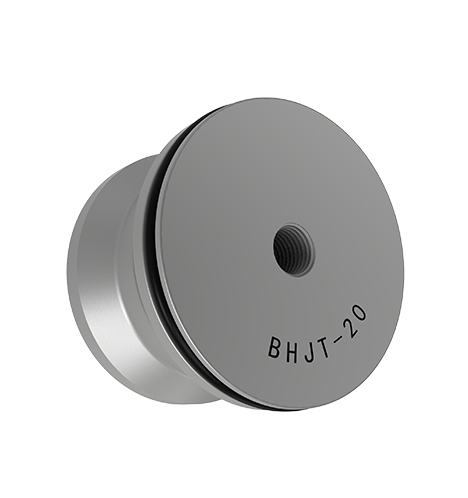

Protective plug, aluminum.
Diameter 31.8mm, weight 45g.
Prevents debris from entering the non-working zero position unit.
Suitable for straight column ball lock zero locator.

Protection Plug
Product Features

  • Material: Aluminum;

  • Suitable for straight column ball lock zero locator.

Suzhou SET Industrial Equipment System Co.,Ltd.

  • Prevent debris from entering the non-working zero location unit;

Product dimension diagram

Order number ØDN M Weight(g)
BHJT-2 12.8  M4 3
BHJT-5 17.8  M5 8
BHJT-10 21.8  M6 18
BHJT-20 31.8  M6 45
BHJT-40 39.8  M8 63
