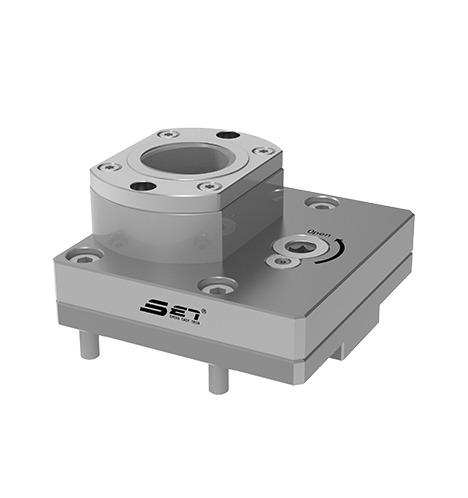

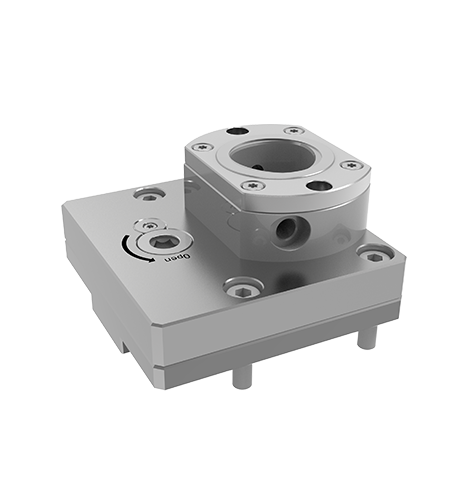

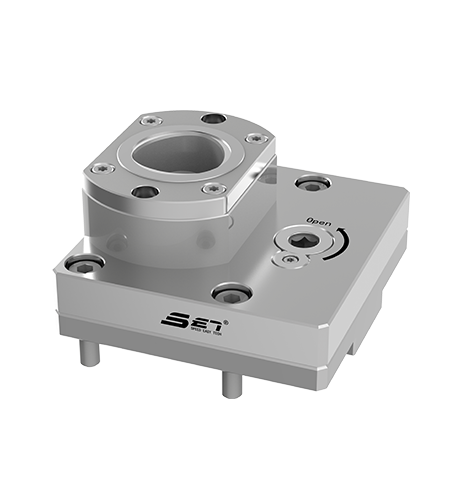

Cylindrical Tooling (C5)

  • Clamping force: 30kN
  • High clamping force, bending resistance stability
  • Repetitive positioning accuracy≤ 0.003mm
  • Cylindrical Tooling (C5)
  • Cylindrical Tooling (C5)
  • Cylindrical Tooling (C5)
Detail drawing
  • Cylindrical Tooling (C5)
  • Cylindrical Tooling (C5)
  • Cylindrical Tooling (C5)
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories
Product Overview

It can be clamped or loosened by manual operation.
Its repetitive positioning accuracy≤ 0.003mm. It has high flexibility, high clamping force and bending resistance stability.

It can accurately locate. It is suitable for turning centers, vertical lathes, and flat bed lathes, it can quickly complete the conversion between cutting tools.

Cylindrical Tooling (C5)
Product Features

  • It can be clamped or loosened by manual operation;Its repetitive positioning accuracy≤ 0.003mm;

  • It can accurately locate;

Suzhou SET Industrial Equipment System Co.,Ltd.

  • It has high flexibility, high clamping force and bending resistance stability;

  • It is suitable for turning centers, vertical lathes, and flat bed lathes, it can quickly complete the conversion between cutting tools.

Product dimension diagram

Order number Unlocking method Repetitive positioning accuracy
(mm)		 Clamping force (kN) Allowable drive torque (N.m) Lifting height (mm) Usage temperature (℃) Weight (kg)
DZ-C5-SD-W Manual operation ≤0.003 30 20 0.3 0-80 3.3

  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.

Cylindrical Tooling (C5)

  1. It can be clamped or loosened by manual operation;
    Its repetitive positioning accuracy≤ 0.003mm;
  2. It has high flexibility, high clamping force and bending resistance stability;
  3. It can accurately locate;
  4. It is suitable for turning centers, vertical lathes, and flat bed lathes, it can quickly complete the conversion between cutting tools.
