Capto Tool Shank Quick Change Fixture System

  • A high rigidity tool holder quick change system developed for multi-faceted machining on 3-axis machining centers(+turntable) and 5-axis machining centers
  • Capto Tool Shank Quick Change Fixture System
  • Capto Tool Shank Quick Change Fixture System
  • Capto Tool Shank Quick Change Fixture System
  • Capto Tool Shank Quick Change Fixture System
Detail drawing
  • Capto Tool Shank Quick Change Fixture System
  • Capto Tool Shank Quick Change Fixture System
  • Capto Tool Shank Quick Change Fixture System
  • Capto Tool Shank Quick Change Fixture System
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories

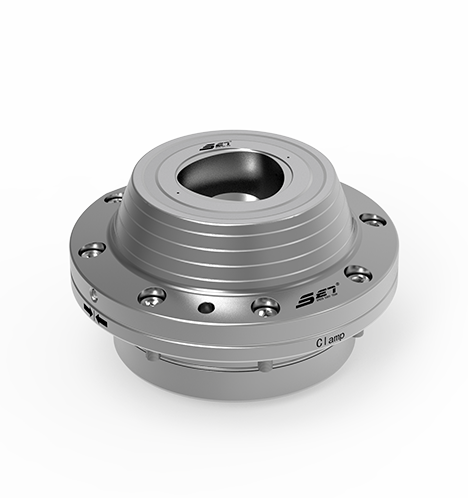

Product Overview

A high rigidity tool holder quick change system developed for multi-faceted machining on 3-axis machining centers (+turntable) and 5-axis machining centers

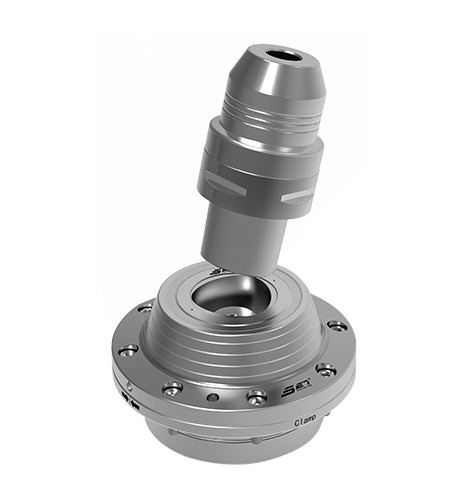

Capto Tool Shank Quick Change Fixture System
Product Features
  • The gas source is turned on, mechanically clamped, and can be pressurized again;

  • Repetitive positioning accuracy<0.003mm;

  • Compact design with minimal machining interference, capable of processing in all directions。

Suzhou SET Industrial Equipment System Co.,Ltd.
  • Has strong flexibility;

  • Accurate angular positioning;

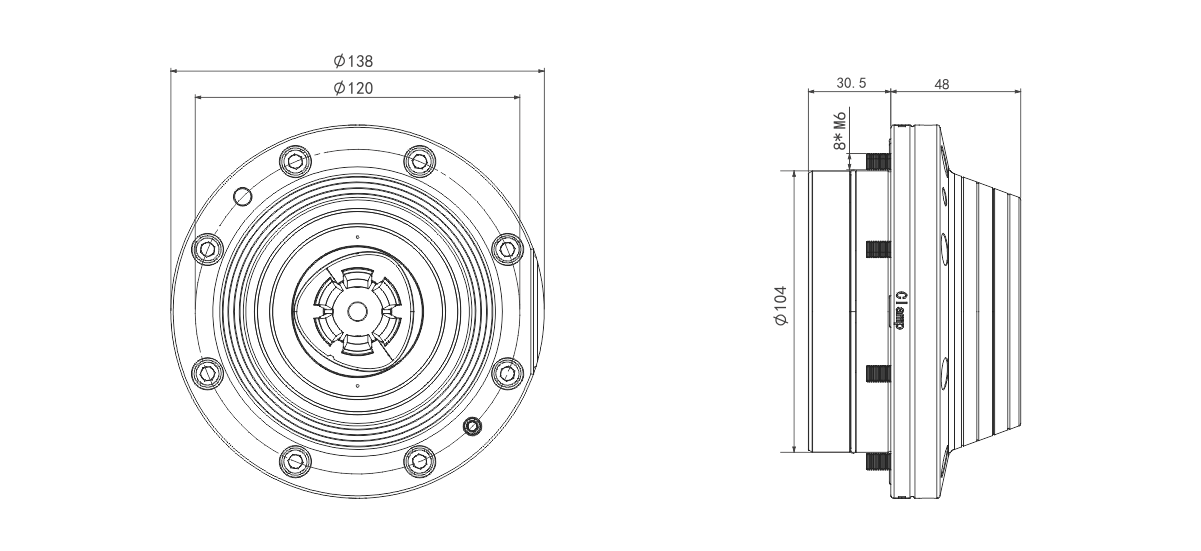

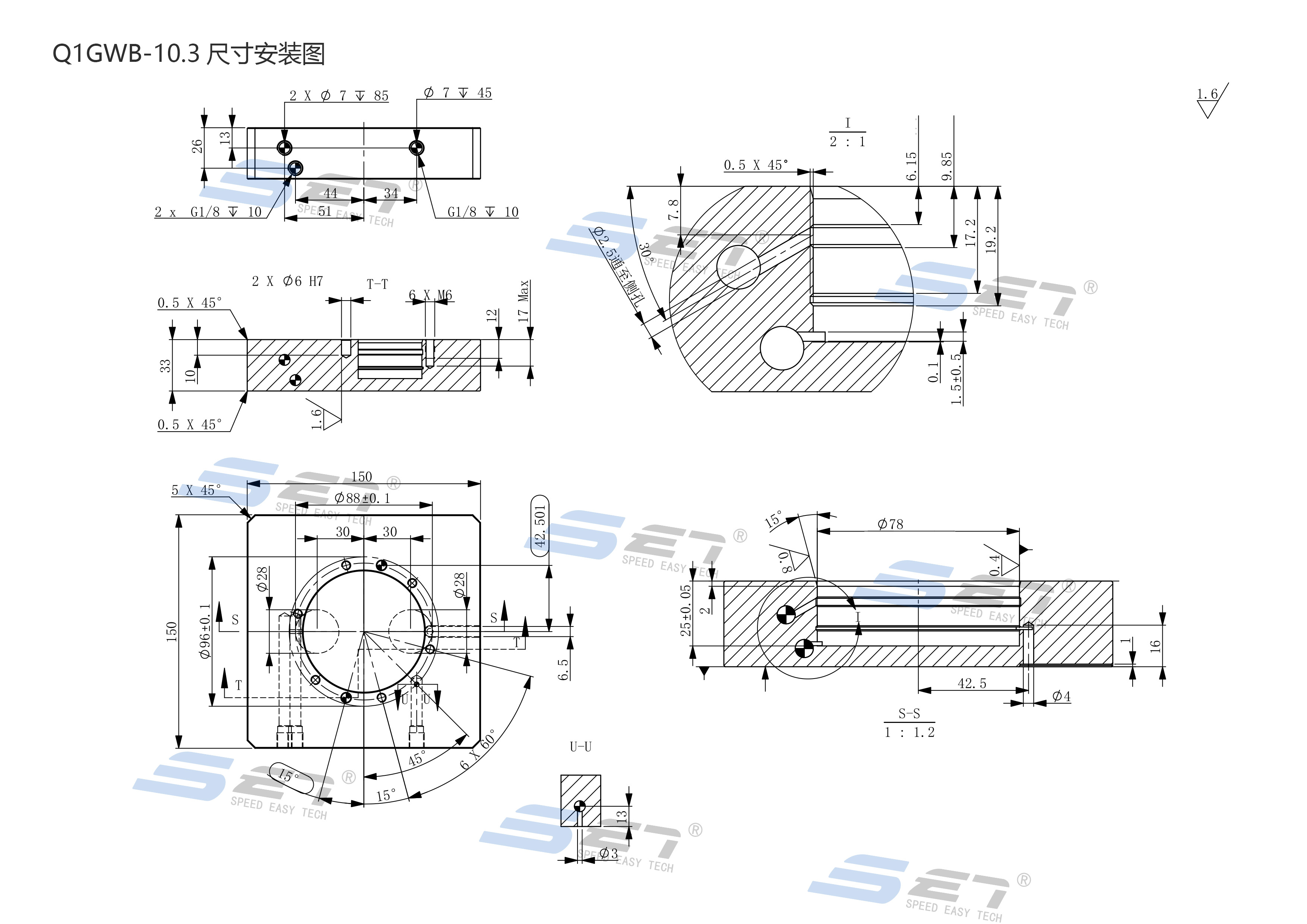

Product dimension diagram

Order number Unlocking method Repetitive positioning accuracy
(mm)
Clamping force(kN) Weight(kg)
LQ-Capto-C40 Gas pressure <0.003 10 3.5
LQ-Capto-C50 Gas pressure 13 4.1
LQ-Capto-C63 Gas pressure 17 4.2
LQ-Capto-C80 Gas pressure 40 5.6
LQ-Capto-C100 Gas pressure 52 8.3

  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.

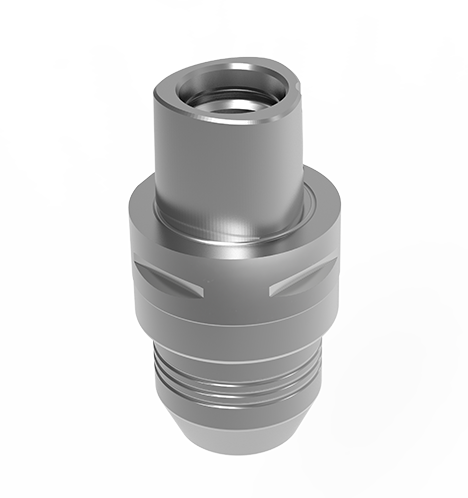

Capto Tool Shank Quick Change Fixture System

  1. The gas source is turned on, mechanically clamped, and can be pressurized again;
  2. Has strong flexibility;
  3. Repetitive positioning accuracy<0.003mm;
  4. Accurate angular positioning;
  5. Compact design with minimal machining interference, capable of processing in all directions。
