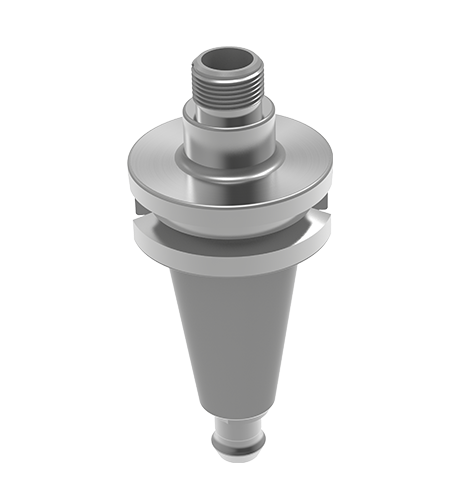

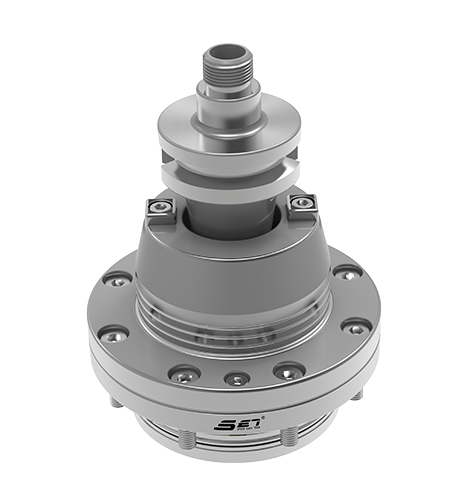

BT Tool Shank Quick Change Fixture System

  • Clamping force: 10kN
  • Angular positioning
  • Repetitive positioning accuracy< 0.005mm
  • BT Tool Shank Quick Change Fixture System
  • BT Tool Shank Quick Change Fixture System
  • BT Tool Shank Quick Change Fixture System
Detail drawing
  • BT Tool Shank Quick Change Fixture System
  • BT Tool Shank Quick Change Fixture System
  • BT Tool Shank Quick Change Fixture System
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories
Product Overview

When the gas source is turned on, it will be mechanically clamped, and can be pressurized again.
Its repetitive positioning accuracy<0.005mm. It has the capable of angular positioning, and strong flexibility.
Compact design with minimal machining interference, capable of processing in all directions.

Suitable for 3-axis machiningg centers (+ turntable) and 5-axis machining centers,on which can perform multi-faceted processing and develop high rigidity quick change tool shank systems.

BT Tool Shank Quick Change Fixture System
Product Features

  • When the gas source is turned on, it will be mechanically clamped, and can be pressurized again;

  • Repetitive positioning accuracy<0.005mm;

  • Compact design with minimal machining interference, capable of processing in all directions.

Suzhou SET Industrial Equipment System Co.,Ltd.

  • High flexibility;

  • Angular positioning；

  • Suitable for 3-axis machiningg centers (+ turntable) and 5-axis machining centers,on which can perform multi-faceted processing and develop high rigidity quick change tool shank systems.

Product dimension diagram

Order number Unlocking method Repetitive positioning accuracy
(mm)		 Clamping force(kN) Weight(kg)
LQ-BT30 Gas pressure <0.005 10 4.2
LQ-BT40 Gas pressure 17 5.8
LQ-BT50 Gas pressure 40 8.5

  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.

BT Tool Shank Quick Change Fixture System

  1. When the gas source is turned on, it will be mechanically clamped, and can be pressurized again;
  2. High flexibility;
  3. Repetitive positioning accuracy<0.005mm;
  4. Angular positioning；
  5. Compact design with minimal machining interference, capable of processing in all directions.
  6. Suitable for 3-axis machiningg centers (+ turntable) and 5-axis machining centers,on which can perform multi-faceted processing and develop high rigidity quick change tool shank systems.
