Pneumatic Vise

  • Repetitive positioning accuracy<0.01mm
  • Clamping force: 2.5~6.5kN
  • Single claw stroke: 2mm
  • Can be used for smooth, contour, dovetail, and toothed clamping

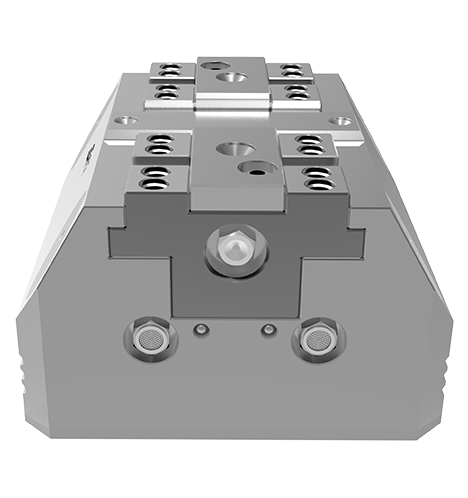

  • Pneumatic Vise

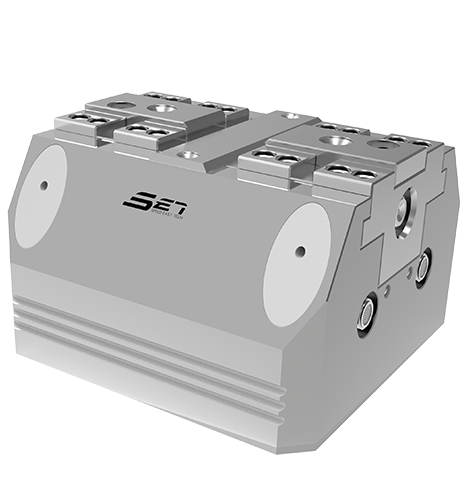

  • Pneumatic Vise

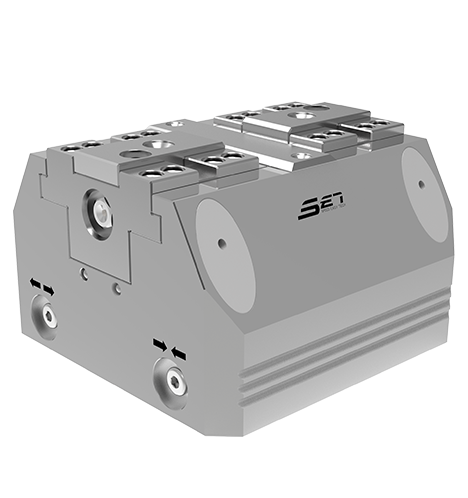

  • Pneumatic Vise
Detail drawing
  • Pneumatic Vise
  • Pneumatic Vise
  • Pneumatic Vise
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories
Product Overview

52mm double position vise is a vise that can be quickly opened, locked and held in double position by hand.
Length 210mm, clamping range 58mm, nail spacing 52mm.
Repeated positioning accuracy <±0.01mm, clamping force 13.5kN, operating torque 60Nm.
Precision fit, reduce the jaws up and down, can be used for blank, smooth, dovetail clamping.
Alloy structural steel material, surface and rail hardening treatment.
Suitable for metal or non-metal cutting, fast switching with 52mm manual four-unit positioner.

Pneumatic Vise
Product Features

  • 52mm nail spacing vise;

  • Material: alloy structural steel;

  • Repeated positioning accuracy <±0.01mm;

  • Suitable for blank, smooth, dovetail clamping.

Suzhou SET Industrial Equipment System Co.,Ltd.

  • Manual fast opening, locking, double station clamping;

  • Surface and guide hardening treatment;

  • Precision fit, reduce the jaws up and down;

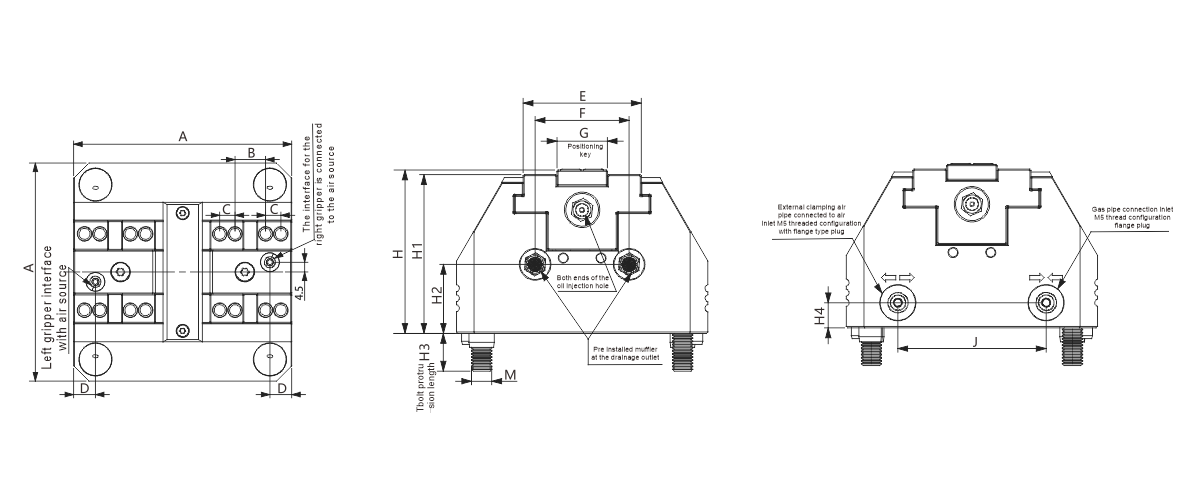

Product dimension diagram



Dimension number Unlocking method Repeatitive positioning accuracy (mm) Clamping force (kN)

Single claw stroke

(Nm)

 Weight(kg)
Q100-T/C/Y/F Gas pressure 0.01 2.5~6.5 2 4
Q140-T/C/Y/F Gas pressure 0.01 5~9 3 7
Q200-T/C/Y/F Gas pressure 0.02 26~35 7 24

Dimension number A B C D E F G J H H1 H2 H3 H4 M
Q100-T/C/Y/F 100 14 7 10 47 37.4 20 59 65 63.2 27.5 15 10 M8
Q140-T/C/Y/F 140 20 10 18 68 54 28 80 70.5 68.7 31 15 13.5 M8
Q200-T/C/Y/F 200 24 12 38 102 90 45 129 90.2 88.7 45 15 17.5 M8
