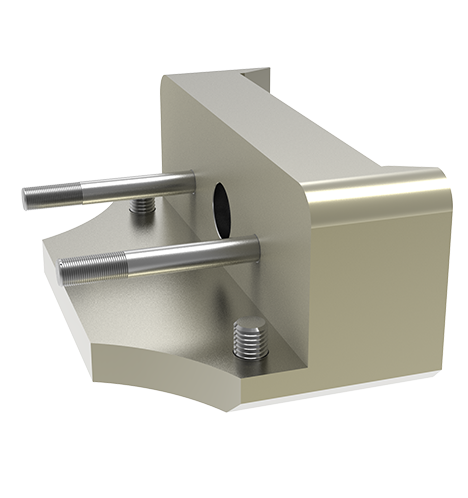

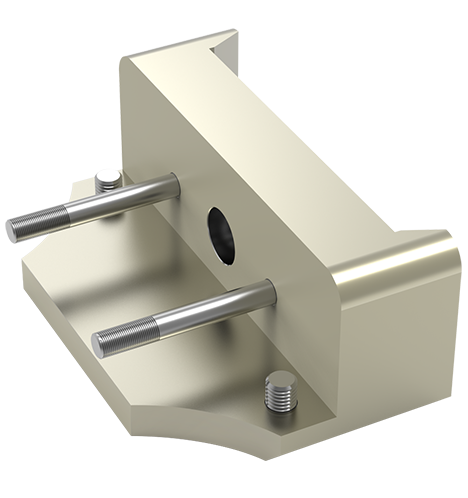

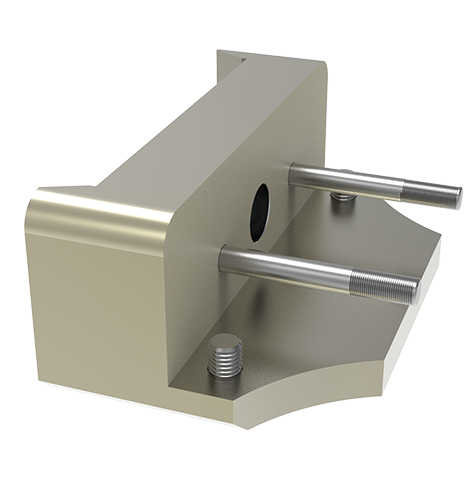

Tray adapter, aluminum oxide, weight 1.05kg.
The use process takes up less space to maximize space utilization.

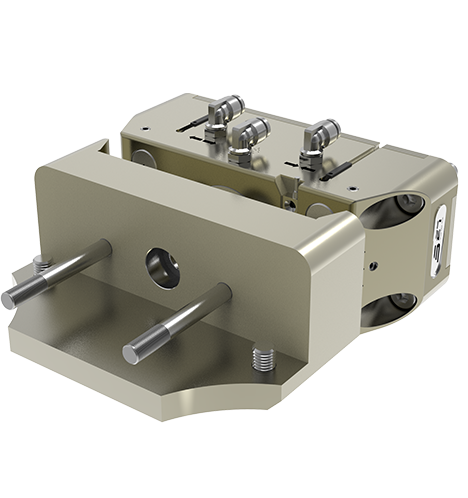

Use with manipulator coupling.
It is suitable for automatic multi-axis robot handling.
Material: Alumina;
Use with manipulator coupling.
The use process takes up less space to maximize space utilization;
| Order number | Dimension number | Materials | Weight(kg) |
|---|---|---|---|
| CTY-20 | C20 | Aluminium oxide | 1.05 |

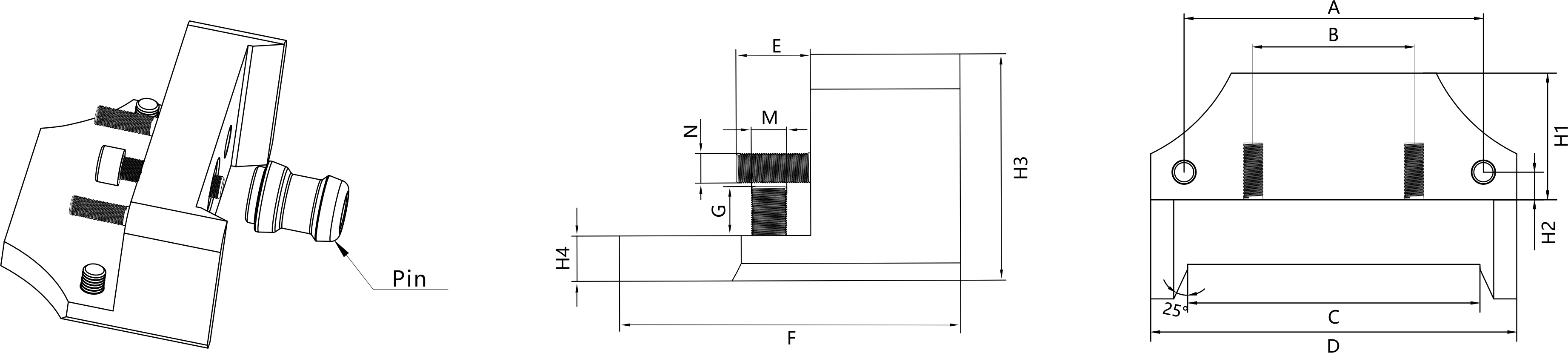

| Dimension number | A | B | C | D | E | F | G | H1 | H2 | H3 | H4 | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C20 | 130 | 70 | 127 | 159 | 17 | 98 | 19 | 55 | 12 | 65 | 13 | M10 | M8 |
If you are interested in our products, please consult us
