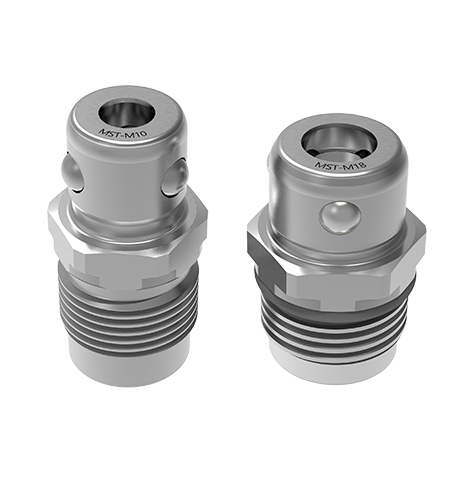

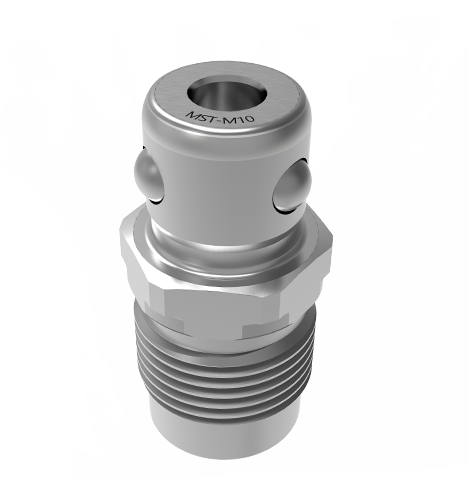

Micro Gripping Systems

  • It uses pneumatic gripper
  • Steel ball clamper
  • Retention force: 70N
  • Micro Gripping Systems
  • Micro Gripping Systems
  • Micro Gripping Systems
  • Micro Gripping Systems

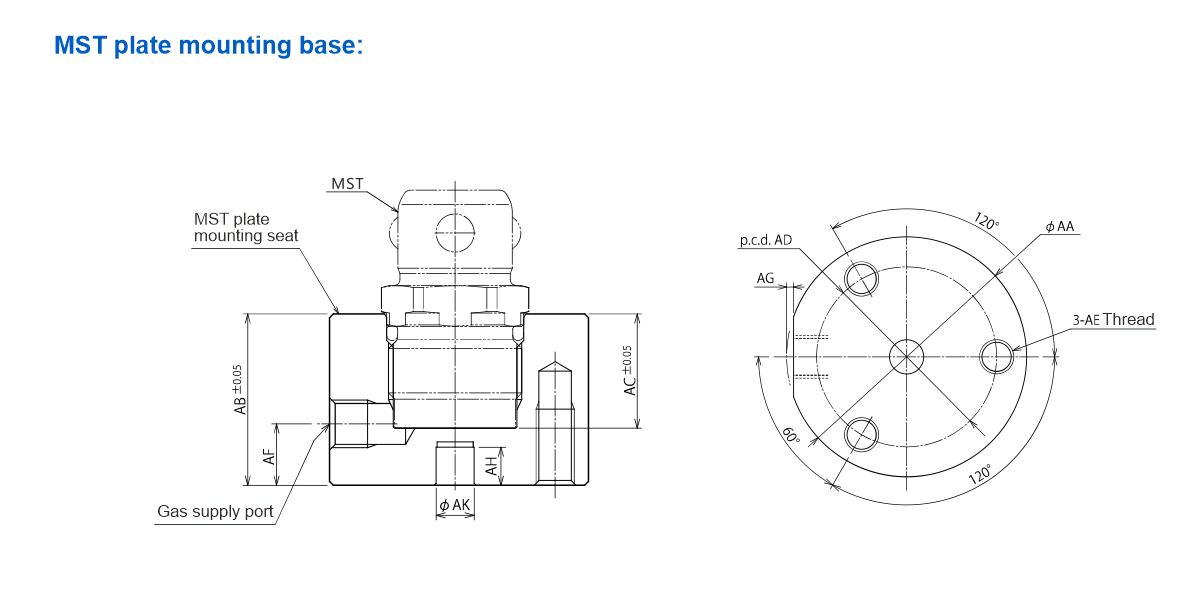

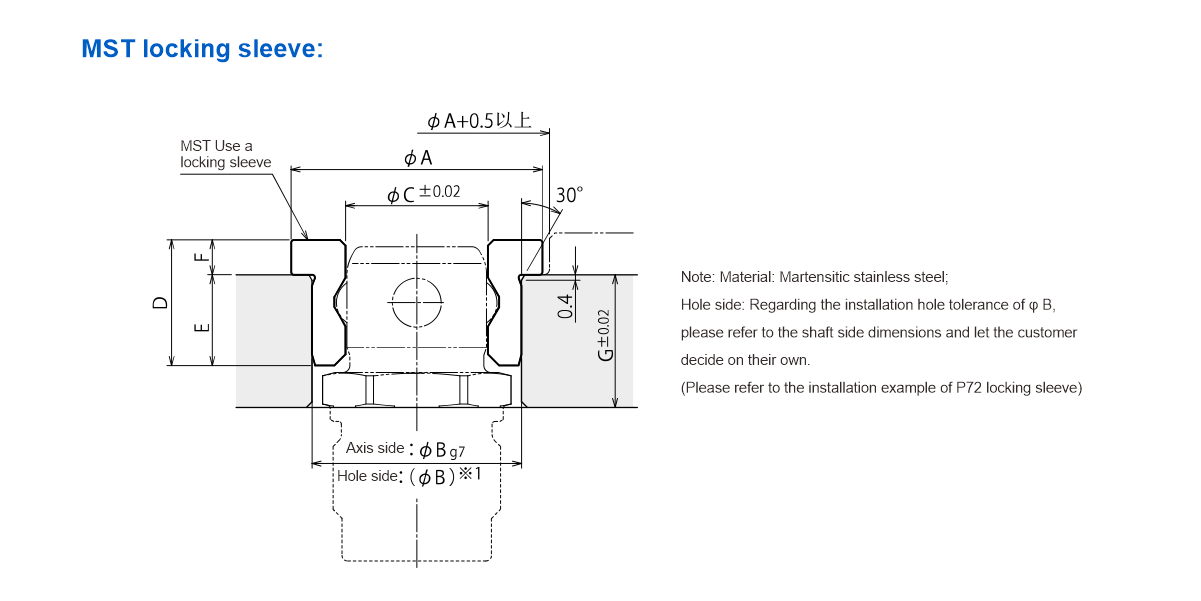

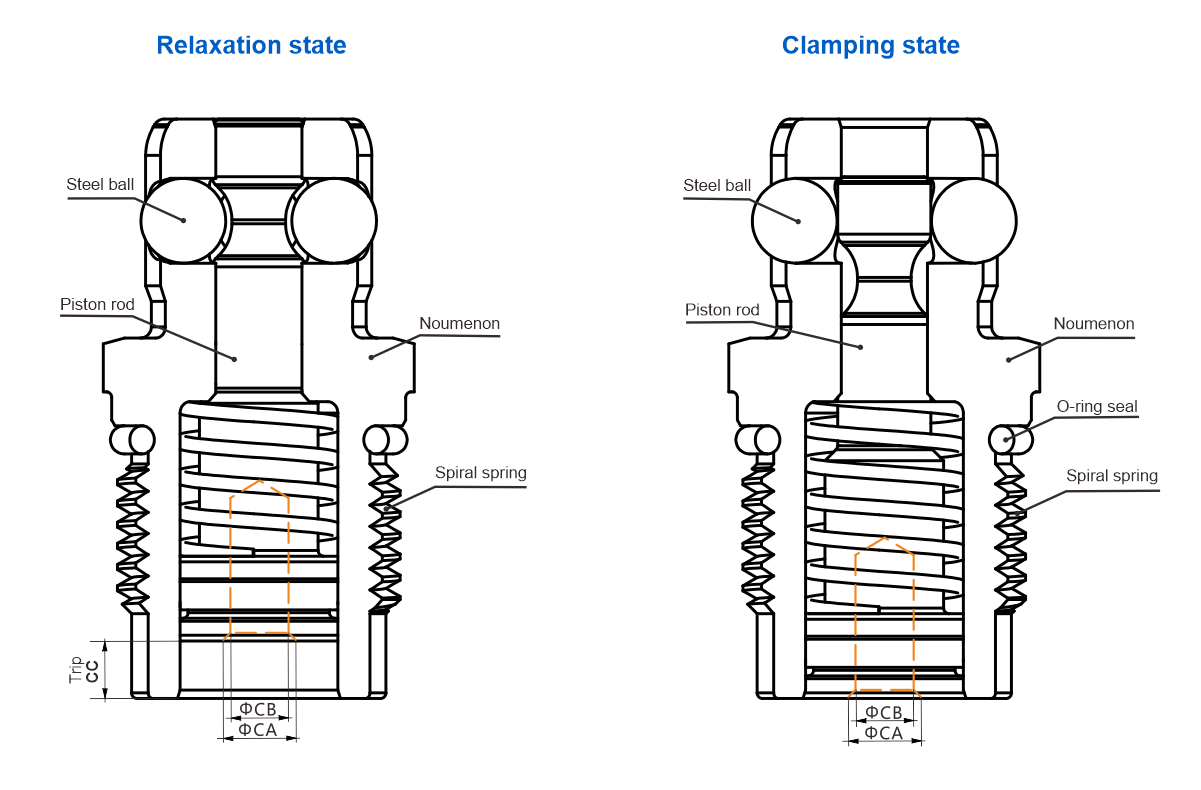

Detail drawing
  • Micro Gripping Systems
  • Micro Gripping Systems
  • Micro Gripping Systems
  • Micro Gripping Systems
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories
Product Overview

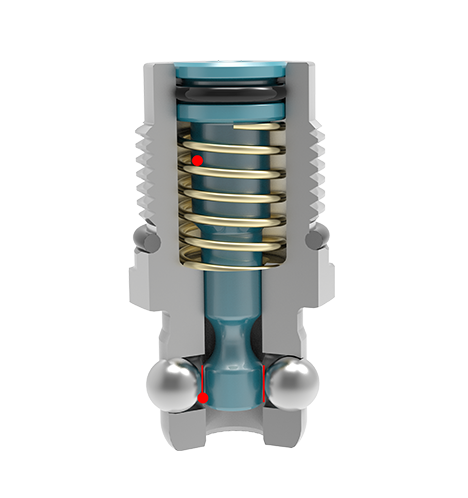

It uses pneumatic gripper, and has steel ball clamper.

Its necking  size is 8mm, retention force is 70N, withstand voltage 1MPa, weight is 8g.

The micro gripper is light weight, and it has compact design. It can maximize its cpacity without affecting the robot's handing capacity.

The standard usage temperature range is 0℃-70℃, high temperature usage range is 0℃-120℃.

It is suitable for automation robot handing.

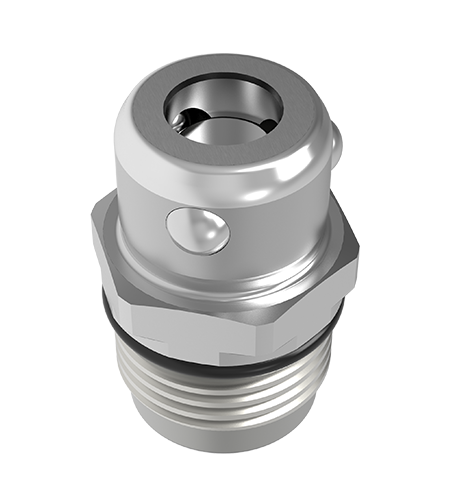

Micro Gripping Systems
Product Features

  • It uses pneumatic gripper;

  • The micro gripper is light weight, and it has compact design. It can maximize its cpacity without affecting the robot's handing capacity;

Suzhou SET Industrial Equipment System Co.,Ltd.

  • It  has steel ball clamper;

  • It is suitable for automation robot handing.

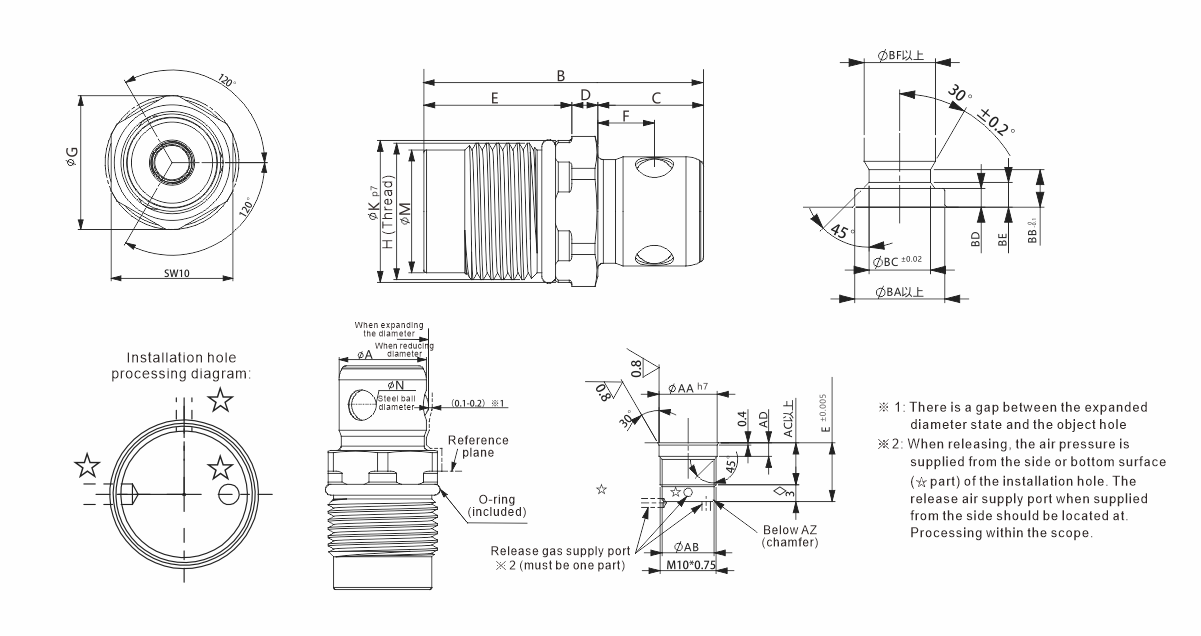

Product dimension diagram
