52mm Simplex Vise

Repeated positioning accuracy <±0.01mm
Clamping force 13.5kN
Clamping range 147mm

Detail drawing

Product parameters

Drawing

Data download

Related accessories

Product Overview

52mm simplex vise is a vise that can be quickly opened, locked and held by hand.
Length 210mm, clamping range 147mm, nail spacing 52mm.
Repeated positioning accuracy <±0.01mm, clamping force 13.5kN, operating torque 60Nm.
Precision fit, reduce the jaws up and down, can be used for blank, smooth, dovetail clamping.
Alloy structural steel material, surface and rail hardening treatment.
Suitable for metal or non-metal cutting, fast switching with 52mm manual four-unit positioner.

Product Features

52mm nail spacing vise;
Material: alloy structural steel;
Repeated positioning accuracy <±0.01mm;
Suitable for blank, smooth, dovetail clamping.

Suzhou SET Industrial Equipment System Co.,Ltd.

Manual fast opening, locking, simplex clamping;
Surface and guide hardening treatment;
Precision fit, reduce the jaws up and down;

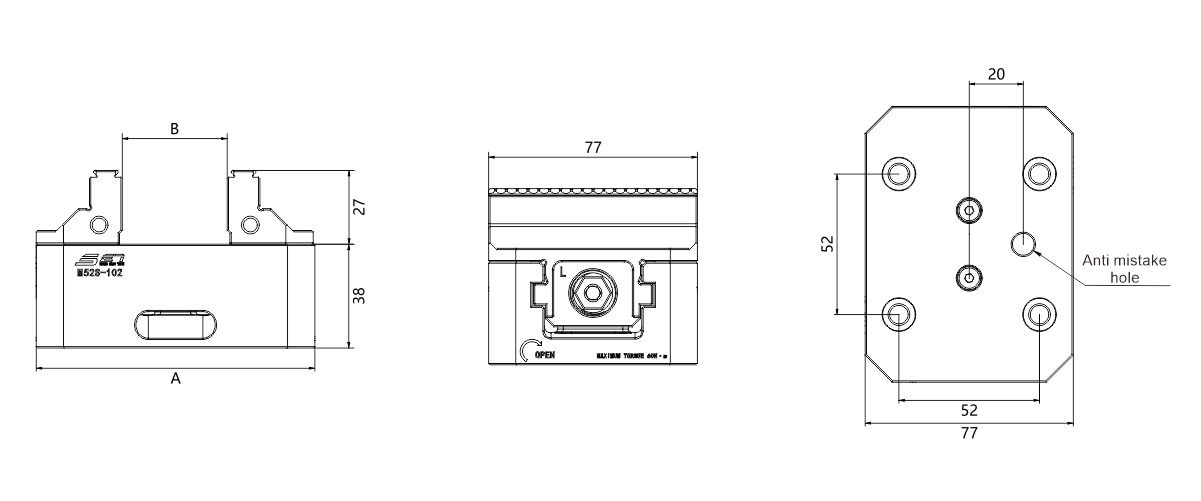

Product dimension diagram

Order number	Unlocking method	Clamping force (kN)	Maximum operating torque (Nm)	Weight (kg)

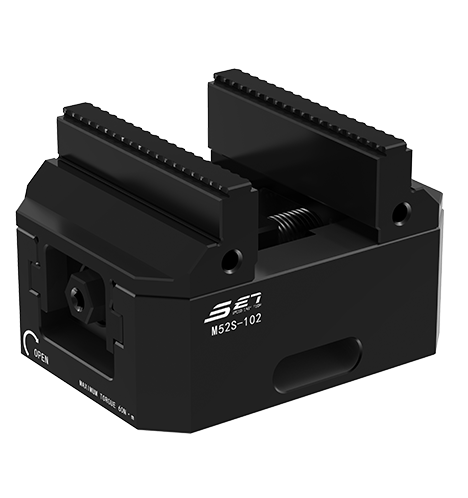

M52S-102	Manual operation	13.5	60	2.3

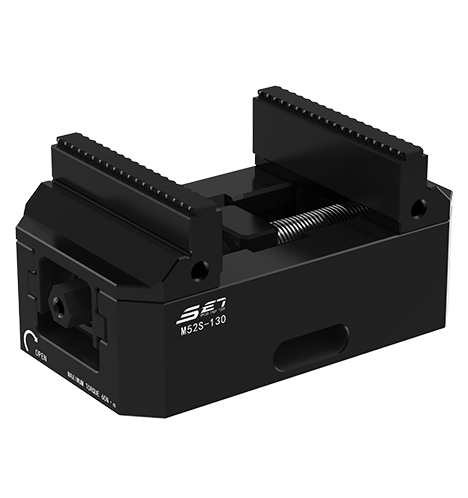

M52S-130	Manual operation	13.5	60	2.9

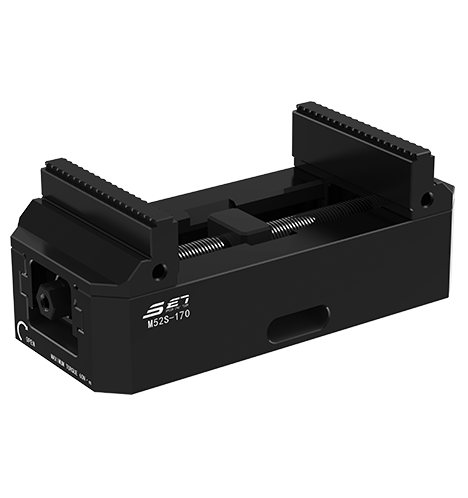

M52S-170	Manual operation	13.5	60	3.5

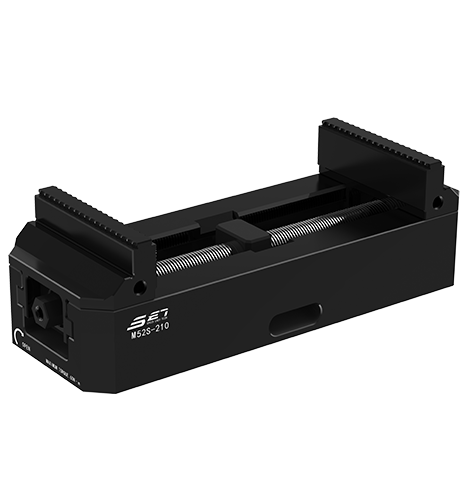

M52S-210	Manual operation	13.5	60	4.2

Order number	A	B
M102	102	39
M130	130	67
M170	170	107
M210	210	147
