简体中文52mm Double Position Vise
- Repeated positioning accuracy <±0.01mm
- Clamping force 13.5kN
- Clamping range 58mm
Product parameters
Drawing
Data download
Related accessories

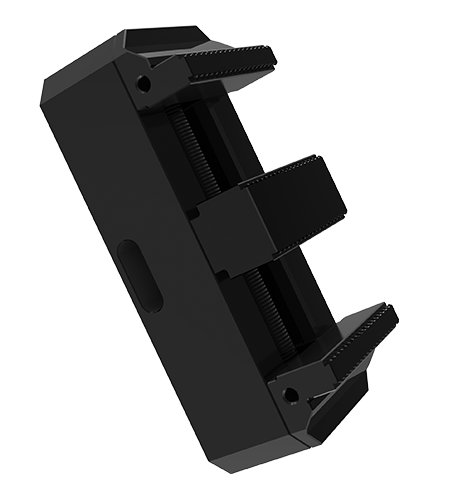

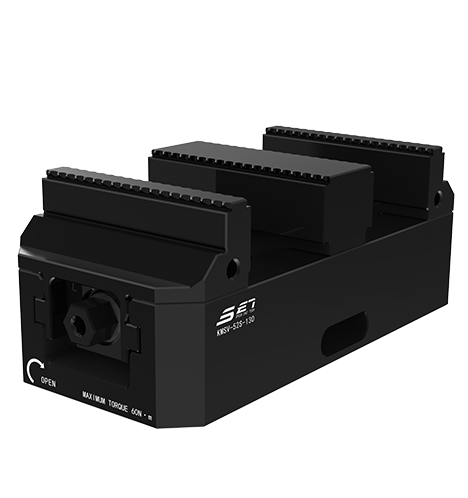

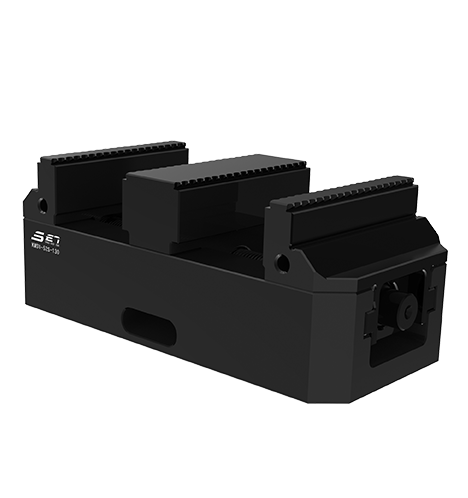

52mm double position vise is a vise that can be quickly opened, locked and held in double position by hand.
Length 210mm, clamping range 58mm, nail spacing 52mm.
Repeated positioning accuracy <±0.01mm, clamping force 13.5kN, operating torque 60Nm.
Precision fit, reduce the jaws up and down, can be used for blank, smooth, dovetail clamping.
Alloy structural steel material, surface and rail hardening treatment.
Suitable for metal or non-metal cutting, fast switching with 52mm manual four-unit positioner.
52mm nail spacing vise;
Material: alloy structural steel;
Repeated positioning accuracy <±0.01mm;
Suitable for blank, smooth, dovetail clamping.
Manual fast opening, locking, double station clamping;
Surface and guide hardening treatment;
Precision fit, reduce the jaws up and down;
| Dimension number | Unlocking method | Clamping force (kN) | Maximum operating torque (Nm) | Weight(kg) |
|---|---|---|---|---|

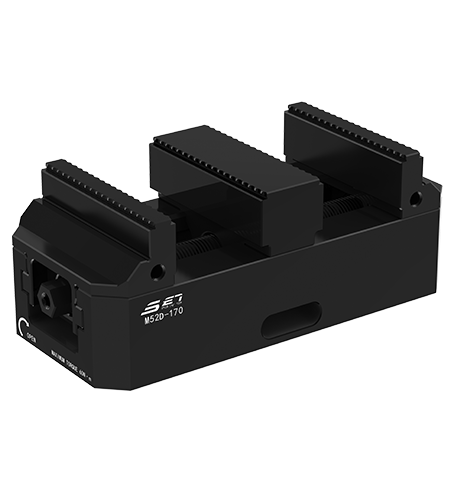

| M52D-170 | Manual operation | 13.5 | 60 | 4 |

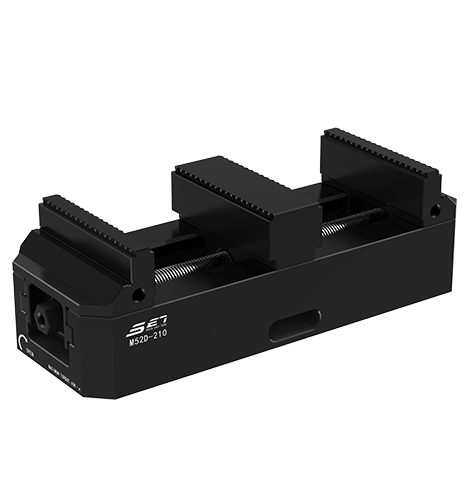

| M52D-210 | Manual operation | 13.5 | 60 | 4.7 |

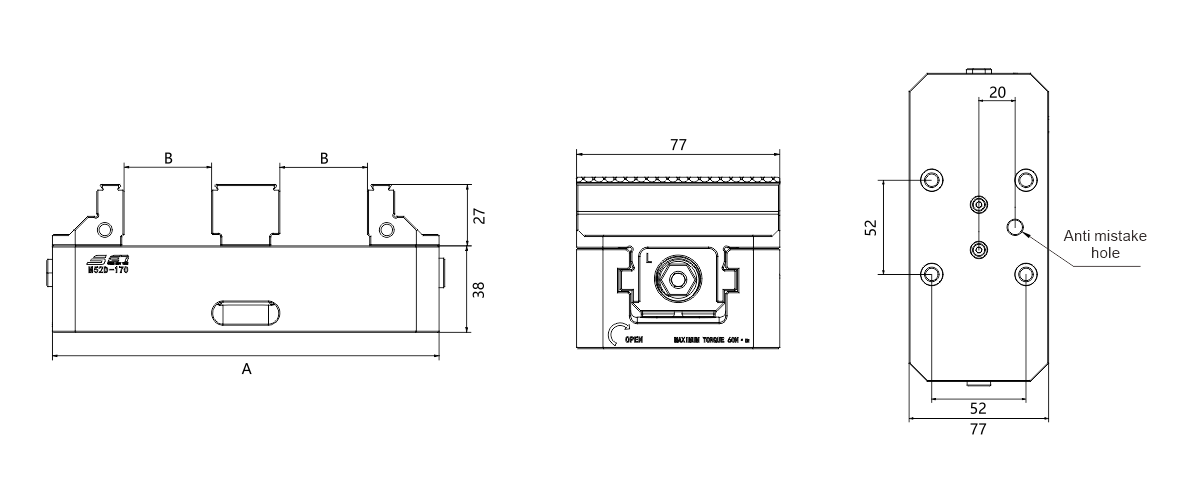

| Dimension number | A | B |
|---|---|---|
| M170 | 170 | 38 |
| M210 | 210 | 58 |
