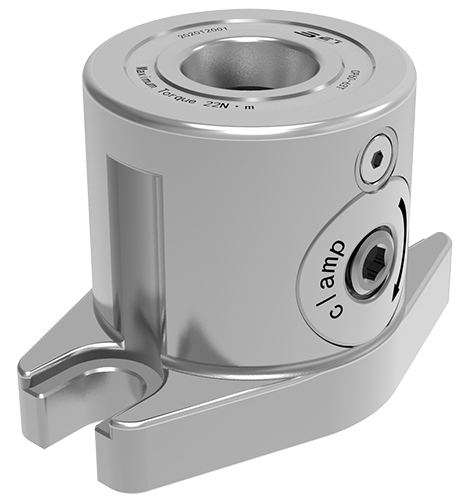

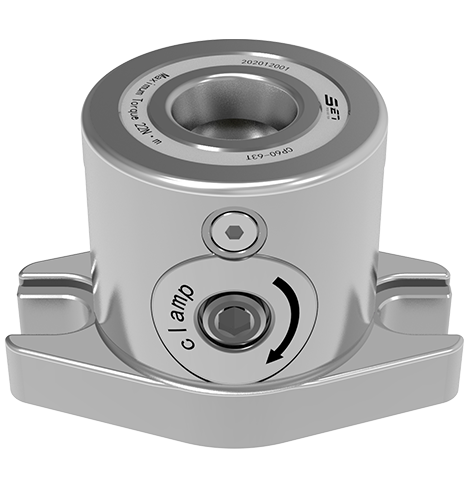

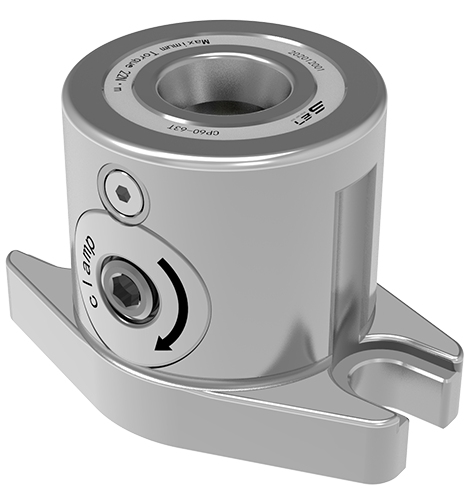

Its material is hardened stainless steel. It can be unlocked and clamped by manual operation.
The repetitive positioning accuracy ＜ 0.005mm. The clamping force of the single locator is 8kN. Its allowable fastening torque is 8Nm.
It applies to moulds' machining and assembly fields. It is suitable for adjusting the center distance operating mode of the locator quickly.
It can be unlocked and clamped by manual operation;
Repetitive positioning accuracy ＜ 0.005mm;
It applies to moulds' machining and assembly fields;
Material: hardened stainless steel;
It has high clamping force;
It is suitable for adjusting the center distance operating mode of the locator quickly.
| Dimension number | Unlocking method | Clamping force (kN) | Allowable fastening torque (Nm) | Weight (kg) |
|---|---|---|---|---|
| CP40-40T | Manual operation | 8 | 8 | 0.8 |
| CP60-63T | Manual operation | 15 | 22 | 1.4 |
| CP80-80T | Manual operation | 25 | 50 | 3.3 |

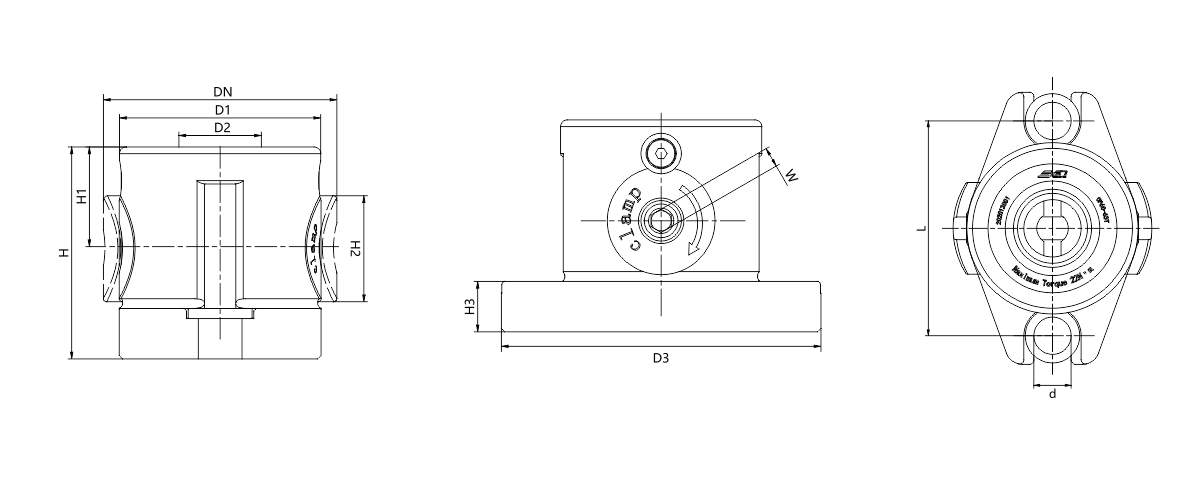

| Dimension number | DN | D1 | ØD2 | D3 |
H (±0.01) |
H1 | H2 | H3 | L | d | W |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CP40-40T | 46 | 40 | 12 | 65 | 40 | 20 | 22 | 10 | 50 | 9 | 4 |
| CP60-63T | 69 | 60 | 18 | 95 | 63 | 30 | 32 | 15 | 75 | 13 | 6 |
| CP80-80T | 91 | 80 | 22 | 130 | 80 | 40 | 44 | 20 | 100 | 17 | 8 |
