Product Overview

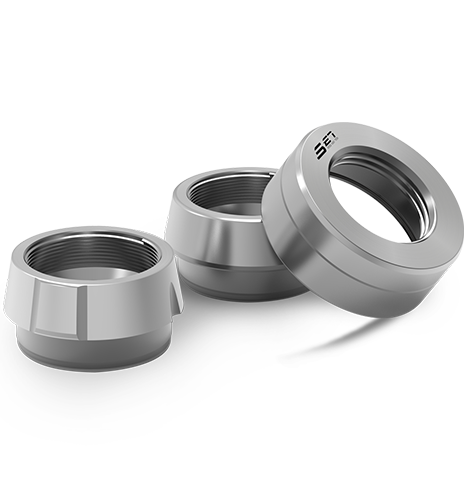

Manual positioning ring is composed of positioning pin (SDJT-PD), directional pin (SDJT-PC), positioning sleeve (SDJT) three parts, manual positioning, locking, unlocking.
Repeated positioning accuracy <0.003mm, compact design, efficient use of space, can quickly realize the tray and substrate high-precision positioning.
Hardened stainless steel material, temperature range of 0℃~70℃.
Applicable to: 1. metal or non-metal processing field; 2. manual fixture quick change. can achieve the tray and substrate high-precision positioning; Heavy pallet positioning, large carrying capacity.

Directional Pin
Product Features

  • Manual positioning, locking, unlocking;

  • Material: hardened stainless steel;

  • Compact design for efficient use of space.

Suzhou SET Industrial Equipment System Co.,Ltd.

  • Repeated positioning accuracy <0.003mm;

  • Fast realization of high-precision positioning of pallet and substrate;

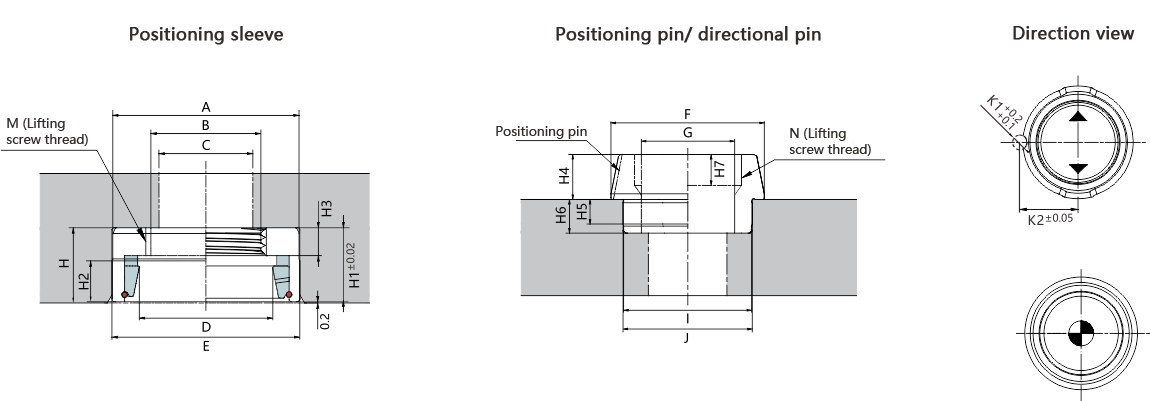

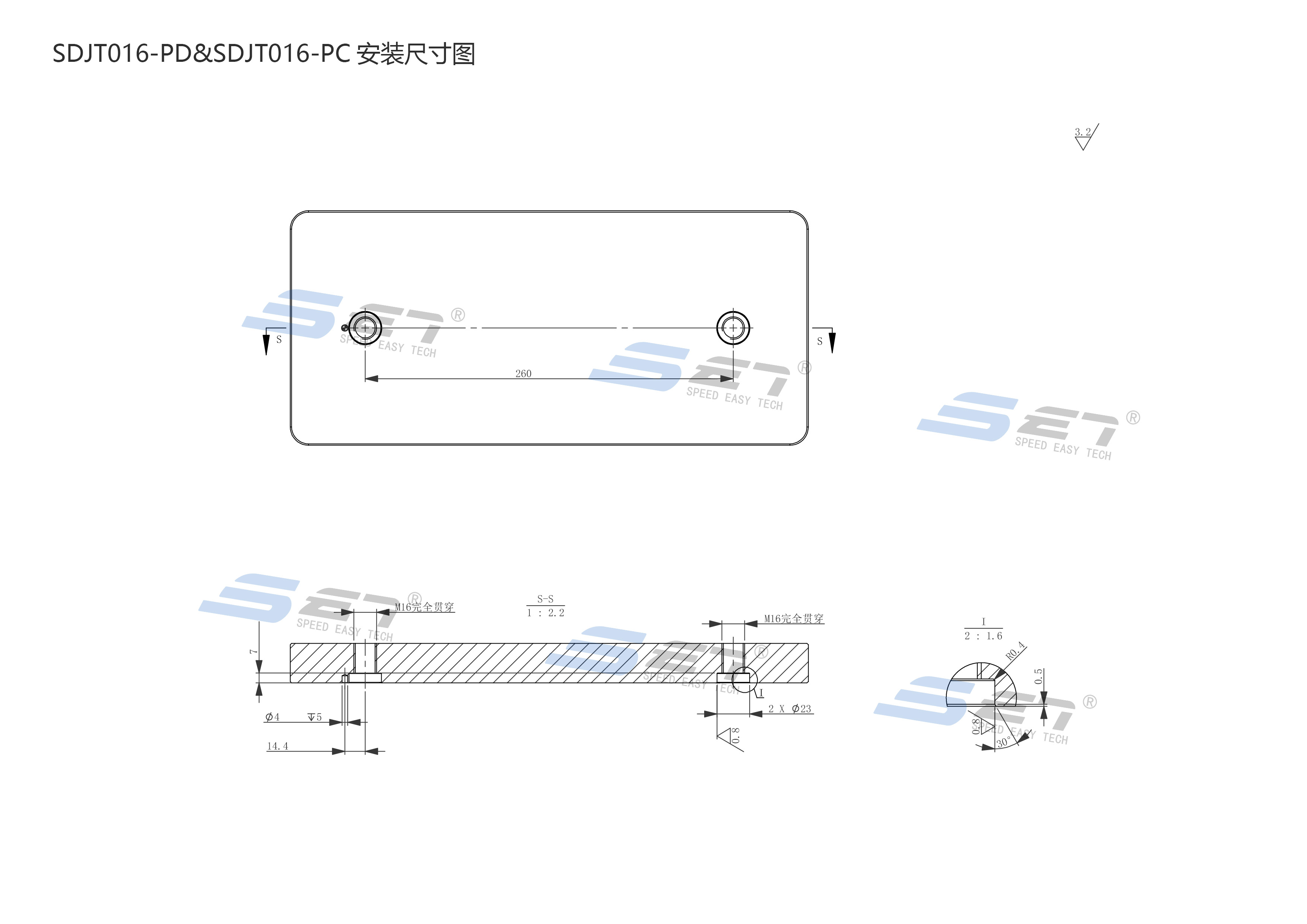

Product dimension diagram

Order number SDJT0040 SDJT0050 SDJT0060 SDJT0080 SDJT0100 SDJT0120 SDJT0160
Repeated positioning accuracy  (mm) 0.003
Trip                                        (mm) 0.2 0.3
Maximum loading weight Horizontal installation   (kg) 100 200 300 400 500 600 800
Vertical installation   (kg) 20 40 60 80 100 120 160
Minimum fastening force        (kN) 1.2 1.4 1.5 1.8 2.0 2.5 3.0
Locking sequence Positioning nail(SDJT-PD)      Directional nail(SDJT-PC)
Use temperature                      (℃) 0-70
Weight Locating pin  (g) 2 3 4 5 10 15 25
Directional pin (g) 4 7 10 11 22 36 30

Order number SDJT0040 SDJT0050 SDJT0060 SDJT0080 SDJT0100 SDJT0120 SDJT0160
ØA 12.8 15.8 17.8 19.8 24.8 29.8 34.8
ØB 5.1 6.8 9
11
 12.5 16.5 20.5
ØC 4.3 5.3 6.8 9 11 14 18
ØD 7.7 9.5 11.5 13.3 16.8 20.2 24.9
ØE
13
+0.033
+0.02
16
+0.033
+0.02
18
+0.033
+0.02
20
+0.033
+0.02
25
+0.033
+0.02
30
+0.033
+0.02
35
+0.042
+0.026
ØF 9 10.8 12.8 14.8 18.6 22.2 27.3
ØG 4.3 5.3 6.8 8.5 11 14 18
ØI 6.3 7.8 9.8 11.8 14.8 17.8 22.8
ØJ

6.5p6

+0.024

+0.015

 8p6

+0.024

+0.015

 10p6

+0.024

+0.015

 12p6

+0.029

+0.018

 15p6

+0.029

+0.018

 18p6

+0.029

+0.018

 23p6

+0.035

+0.022
K1 1.5 1.5 1.5 2 2.5 3 4
K2 4.7 5.6 6.5 7.6 9.6 11.4 14.4
M M6 M8 M10 M12 M14 M18 M22
N M5 M6 M8 M10 M12 M16 M20
MA M5 M6 M8 M10 M12 M16 M20
NA M4 M5 M6 M8 M10 M12 M16
ØP

13

+0.011

-0.1

16

+0.011

-0.1

18

+0.011

-0.1

20

+0.013

-0.1

25

+0.013

-0.1

30

+0.013

-0.1

35

+0.016

-0.1
ØT 13H6

+0.011

0

 16H6

+0.011

0

 18H6

+0.011

0

 20H6

+0.013

0

 25H6

+0.013

0

 30H6

+0.013

0

 35H6

+0.016

0
ØU 6.5H6

+0.009

0

 8H6

+0.009

0

 10H6

+0.009

0

12H6

+0.011

0

 15H6

+0.011

0

 18H6

+0.011

0

 23H6

+0.013

0
ØW 6.5

+0.009

-0.1

 8

+0.009

-0.1

 10

+0.009

-0.1

 12

+0.011

-0.1

 15

+0.011

-0.1

 18

+0.011

-0.1

 23

+0.013

-0.1
H 7 8 8.5 9 11 13 14
H1 6.8 7.8 8.3 8.8 10.8 12.8 13.8
H2 3.8 4 4 4.5 5.5 6.5 8
H3 2 2.8 3.2 3.5 4.2 5.2 5.2
H4 4.5 4.5 4.5 5 6 7 8
H5 2.5 3 3 3 4 4.5 4.5
H6 3.5 4 4 4 5 6 6
H7 3.5 3.5 3.5 3.5 4.5 5 6
L 4.2 4.5 5 5.5 6.5 7.5 8.5
L1 0.5 0.8 0.8 1 1.2 1.5 1.5
L2 3.5 4 4 4 5 5.5 5.5
L3 4.5 5 5 5 6 7 7
  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.

Directional Pin

  1. Manual positioning ring is composed of positioning pin (SDJT-PD), directional pin (SDJT-PC), positioning sleeve (SDJT) three parts, manual positioning, locking, unlocking.
  2. Repeated positioning accuracy <0.003mm, compact design, efficient use of space, can quickly realize the tray and substrate high-precision positioning.
  3. Hardened stainless steel material, temperature range of 0℃~70℃.
  4. Applicable to: 1. metal or non-metal processing field; 2. manual fixture quick change. can achieve the tray and substrate high-precision positioning; Heavy pallet positioning, large carrying capacity.
