Positioning Sleeve

  • Repetitive positioning accuracy <±0.013mm
  • Put the positionging sleeve into the clamp's switch board, cooperating with ball lock and acceptance sleeve

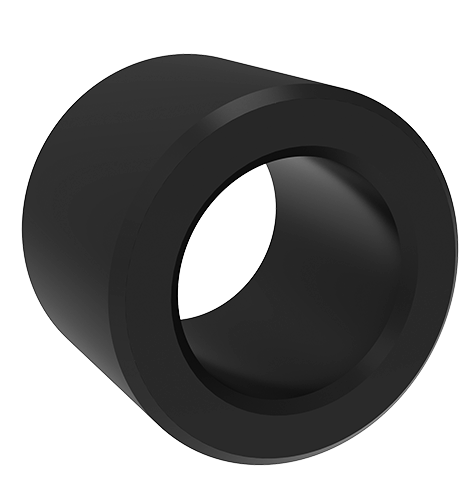

  • Positioning Sleeve

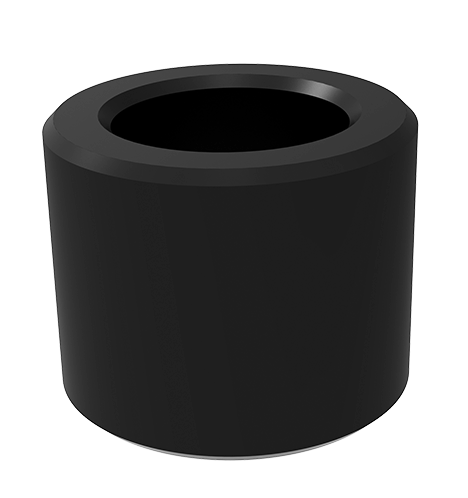

  • Positioning Sleeve

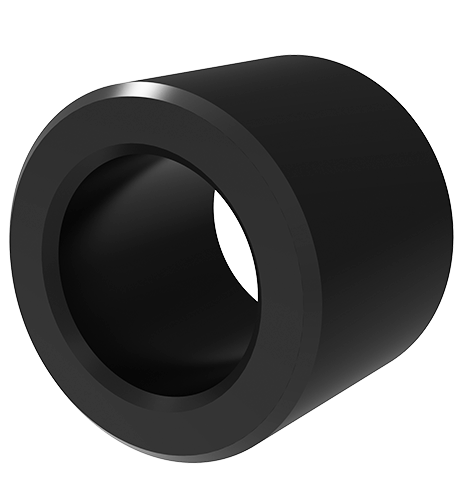

  • Positioning Sleeve
Detail drawing
  • Positioning Sleeve
  • Positioning Sleeve
  • Positioning Sleeve
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories
Product Overview

Its height is 20mm, and weight is 46g. Its material is hardened alloy.

Its repetitive positioning accuracy ＜ ±0.013mm.

Put the positionging sleeve into the clamp's switch board, cooperating with ball lock and acceptance sleeve.

P.S. The repetitive positioning accuracy depends on positioning sleeve. When using two first-level positioning sleeves, if the center to center spacing of the two holes is within the tolerance range of ±0.005mm, then the repetitive positioning accuracy can keep within ±0.013mm.

Positioning Sleeve
Product Features

  • Material: hardened alloy steel;

  • Put the positionging sleeve into the clamp's switch board, cooperating with ball lock and acceptance sleeve.

Suzhou SET Industrial Equipment System Co.,Ltd.

  • Repetitive positioning accuracy <±0.013mm;

Product dimension diagram

Order number ØD1 ØD2 H Weight (g)
First-level positioning sleeve Second-level positioning sleeve First-level positioning sleeve Second-level positioning sleeve
DW16201 DW16202 25.04 16.01 16.04 20 46
DW16251 DW16252 25.04 16.01 16.04 25 59
DW20201 DW20202 35.04 20.01 20.04 20 102
DW20251 DW20252 35.04 20.01 20.04 25 127
DW25201 DW25202 35.04 25.01 25.04 20 74
DW25251 DW25252 35.04 25.01 25.04 25 91
DW30201 DW30202 45.04 30.01 30.04 20 138
DW30251 DW30252 45.04 30.01 30.04 25 173
