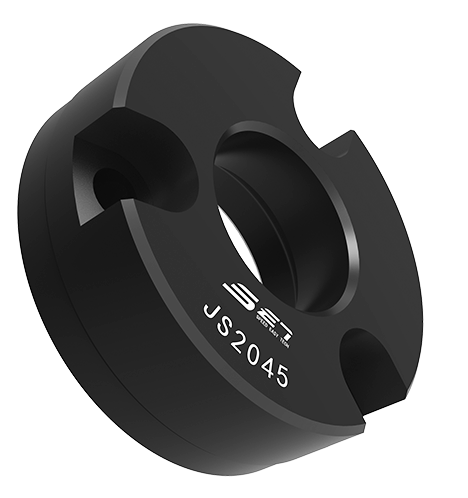

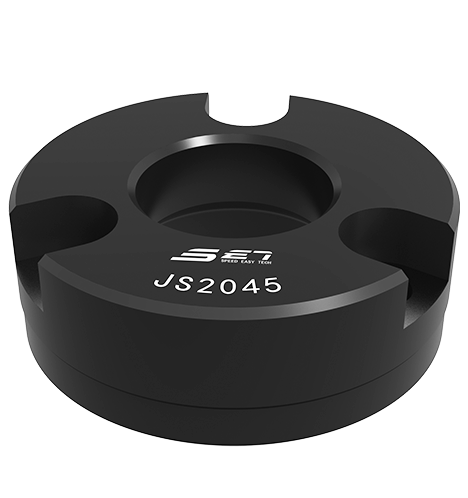

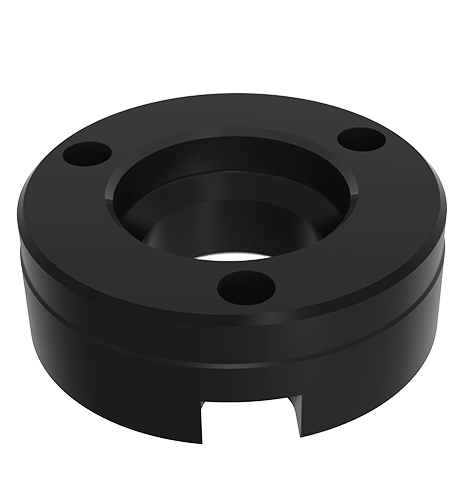

Its height is 11.56mm, and weight is 60g. Its body is quenched and tempered Ferrosoferric Oxide film.
Its repetitive positioning accuracy ＜ ±0.013mm.
Put the positionging sleeve into the clamp's switch board, cooperating with ball lock and acceptance sleeve.
P.S. The repetitive positioning accuracy depends on positioning sleeve. When using two first-level positioning sleeves, if the center to center spacing of the two holes is within the tolerance range of ±0.005mm, then the repetitive positioning accuracy can keep within ±0.013mm.
Body: quenched and tempered Ferrosoferric Oxide film.
| Dimension number | ØD1 | ØD2 | ØD3 | ØD4 | H | H1 | M | ØN | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| JS1637 | 37 | 16 | 4.5 | 20.65 | 11.56 | 4.6 | 7.6 | 29 | 60 |
| JS2045 | 45 | 20 | 5.4 | 24.77 | 15.8 | 6.2 | 9.5 | 35 | 140 |
| JS2555 | 55 | 25 | 6.4 | 30.35 | 19.94 | 7.3 | 11 | 42 | 200 |
| JS3060 | 60 | 30 | 6.4 | 36.2 | 21.77 | 7.3 | 11 | 48 | 305 |
| Dimension number | ØD1 | ØD2 | ØD3 | ØD4 | Thickness of composite plate H (minimum) | H1 |
H2 |
H3 | M |
|---|---|---|---|---|---|---|---|---|---|
| JS1637 | 37 | 21 | 14.5 | 37 | 20 | 11.91 |
3 |
20 | M4*7 |
| JS2045 | 45 | 21 | 17.5 | 45 | 25 | 16.21 | 3 | 25 | M5*9 |
| JS2555 | 55 | 25.5 | 21 | 55 | 25 | 20.32 | 3 | 25 | M6*10 |
| JS3060 | 60 | 30.5 | 24 | 60 | 30 | 22.15 | 3 | 30 | M6*11 |
