简体中文Ball Lock with Finger Screw
- Repeated positioning accuracy <±0.013m
- Precise switch of the workpiece tray in seconds
Product parameters
Drawing
Data download
Related accessories
Product Overview

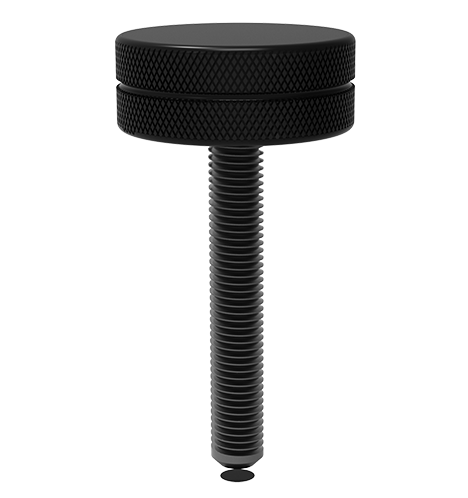

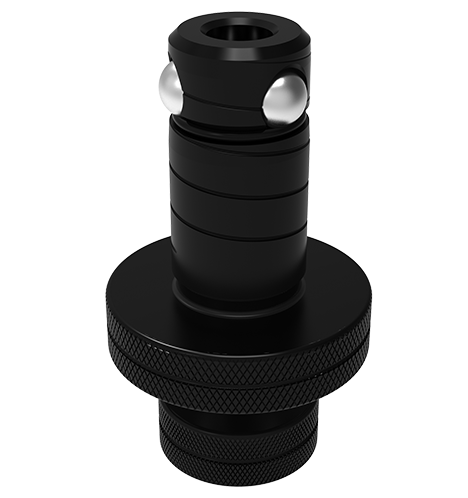

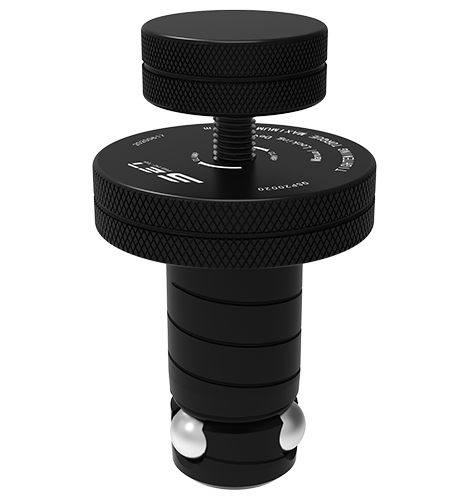

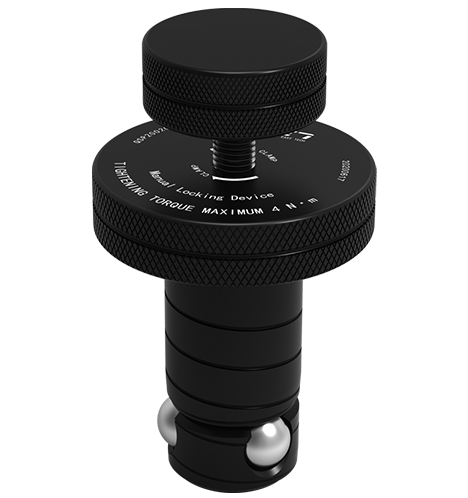

Manual quick opening and locking with finger screw type ball lock.
Used in combination with the receiving sleeve and the positioning sleeve, the workpiece tray can be accurately switched in a few seconds to maximize the use of the workbench.
Hardened alloy steel material, surface and screw hardening.
Suitable for metal or non-metal processing.
Product Features
Manual fast opening and locking;
Surface and screw hardening treatment
In combination with the receiving sleeve and the positioning sleeve, the workpiece tray can be accurately switched within a few seconds;
Material: hardened alloy steel;
Repeated positioning accuracy <±0.013mm;
The indexing table is used to the maximum extent.
Product dimension diagram
| Order number | Clamping force(kN) | Torque(Nm) | Thickness of transition plate ±0.13 | ØD1 | ØD2 | ØD3 | H | H1 | H2 (min) |
H3 | Weight(g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| QZX-16020 | 5.3 | 4.5 | 20 | 32 | 25 | 16 | 36.5 | 10 | 17.5 | 8 | 135 |
| QZX-16025 | 5.3 | 4.5 | 25 | 32 | 25 | 16 | 41.5 | 10 | 22.5 | 8 | 140 |
| QZX-20020 | 13.3 | 5.3 | 20 | 40 | 25 | 20 | 39.5 | 10 | 16.5 | 10 | 210 |
| QZX-20025 | 13.3 | 5.3 | 25 | 40 | 25 | 20 | 44.5 | 10 | 21.5 | 10 | 225 |
| QZX-25020 | 30 | 11 | 20 | 45 | 30 | 25 | 44 | 10 | 16 | 10 | 345 |
| QZX-25025 | 30 | 11 | 25 | 45 | 30 | 25 | 49 | 10 | 21 | 10 | 360 |
| QZX-30020 | 44 | 18 | 20 | 50 | 30 | 30 | 49 | 10 | 16 | 13 | 440 |
| QZX-30025 | 44 | 18 | 25 | 50 | 30 | 30 | 54 | 10 | 21 | 13 | 465 |
