简体中文Ball Lock Protective Sleeve
- Prevent mess from entering into the positioning cone
Product parameters
Drawing
Data download
Related accessories

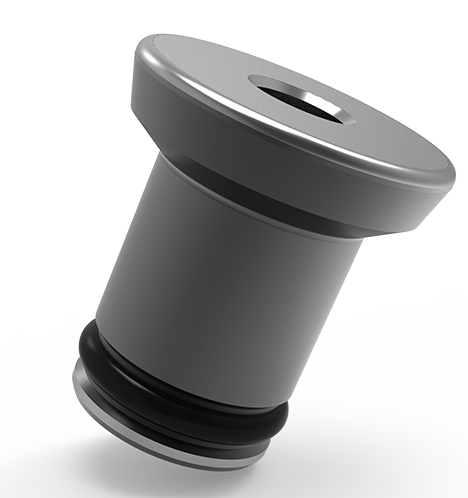

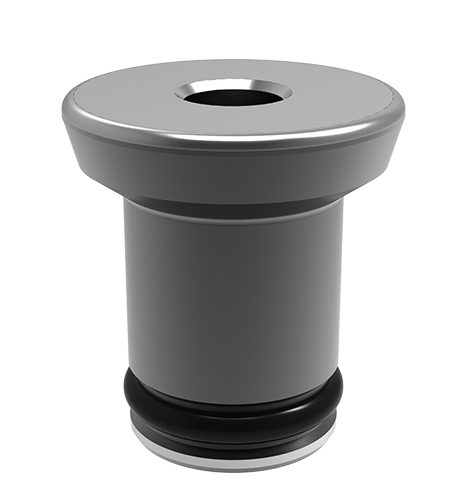

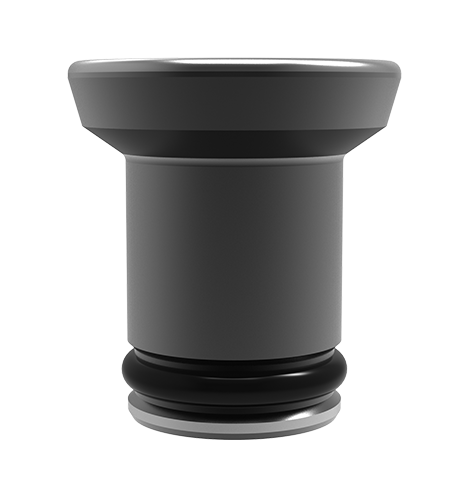

Product Overview
It can prevent mess from entering into the positioning cone.
Its material is Aluminum Oxide. Its height is 15mm, and weight is 3g.
It can cooperate with cone acceptance sleeve SDQS-5-C and cylinder acceptance sleeve SDQS-5-S.
Product Features
Material: Aluminum Oxide;
It can prevent mess from entering into the positioning cone.
Product dimension diagram
| Dimension number | A | B | C | D | Weight (g) | Matched plug | |
|---|---|---|---|---|---|---|---|
| SDQS-5-B | M4 | 13.5 | 15 | 9 | 3 | SDQS-5-C | SDQS-5-S |
| SDQS-5-B | 17 | 19 | 12 | 6 | SDQS-10-C | SDQS-10-S | |
| SDQS-5-B | M5 | 23 | 22.5 | 16 | 14 | SDQS-20-C | SDQS-20-S |
