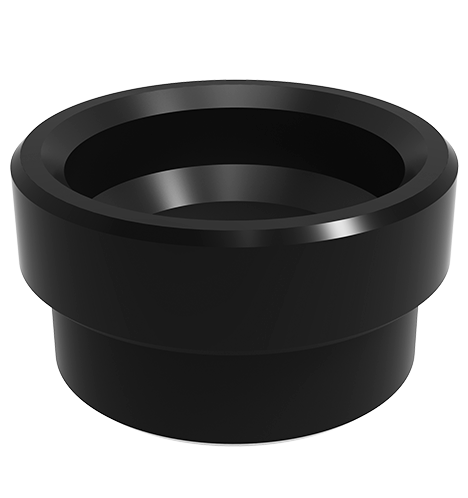

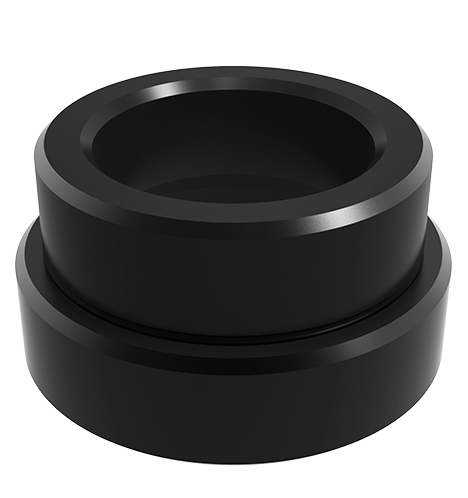

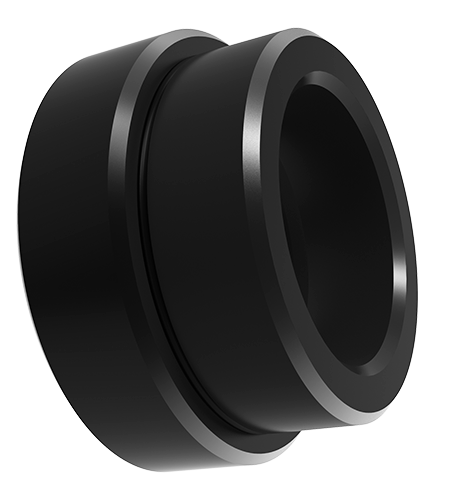

Its height is 12.1mm, and weight is 20g. Its body is quenched and tempered Ferrosoferric Oxide film.
Its repetitive positioning accuracy ＜ ±0.013mm.
Put the positionging sleeve into the clamp's switch board, cooperating with ball lock and acceptance sleeve.
P.S. The repetitive positioning accuracy depends on positioning sleeve. When using two first-level positioning sleeves, if the center to center spacing of the two holes is within the tolerance range of ±0.005mm, then the repetitive positioning accuracy can keep within ±0.013mm.
Body: quenched and tempered Ferrosoferric Oxide film.
| Dimension number | ØD1 | ØD2 | ØD3 | ØD4 | H | H1 | Weight (g) |
|---|---|---|---|---|---|---|---|
| JT1629 | 22 | 16 | 20.65 | 18.6 | 12.1 | 7.24 | 20 |
| JT2032 | 28 | 20 | 24.77 | 32.2 | 17.1 | 8.4 | 50 |
| JT2540 | 35 | 25 | 30.35 | 40.2 | 21 | 10.3 | 80 |
| JT3048 | 42 | 30 | 36.2 | 48.2 | 21.8 | 10.7 | 125 |
| Dimension number | ØM | ØN | Thickness of composite plate H (minimum) | L1 |
|---|---|---|---|---|
| JT1629 | 22 | 29 | 20 | 7.24 |
| JT2032 | 28 | 33 | 25 | 8.74 |
| JT2540 | 35 | 41 | 25 | 10.54 |
| JT3048 | 42 | 49 | 30 | 10.95 |
