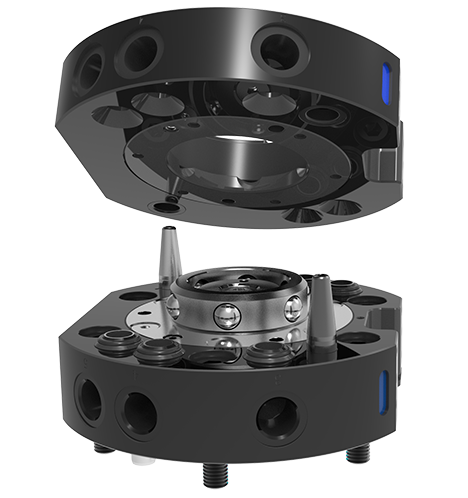

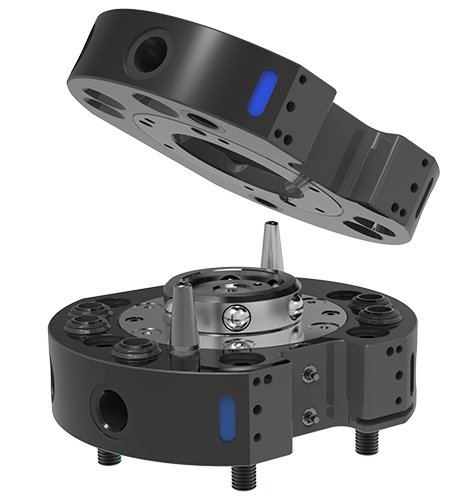

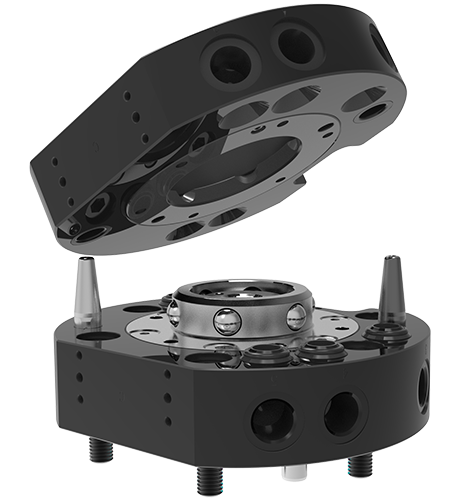

100kg Quick-change Gripper

  • Repetitive positioning accuracy ≤ ±0.015mm
  • It can carry 100kg workpiece
  • The usage temperature range is 5℃ to 60℃
  • Various power, liquid and gas modules can be optionally selected
  • 100kg Quick-change Gripper
  • 100kg Quick-change Gripper
  • 100kg Quick-change Gripper
  • 100kg Quick-change Gripper

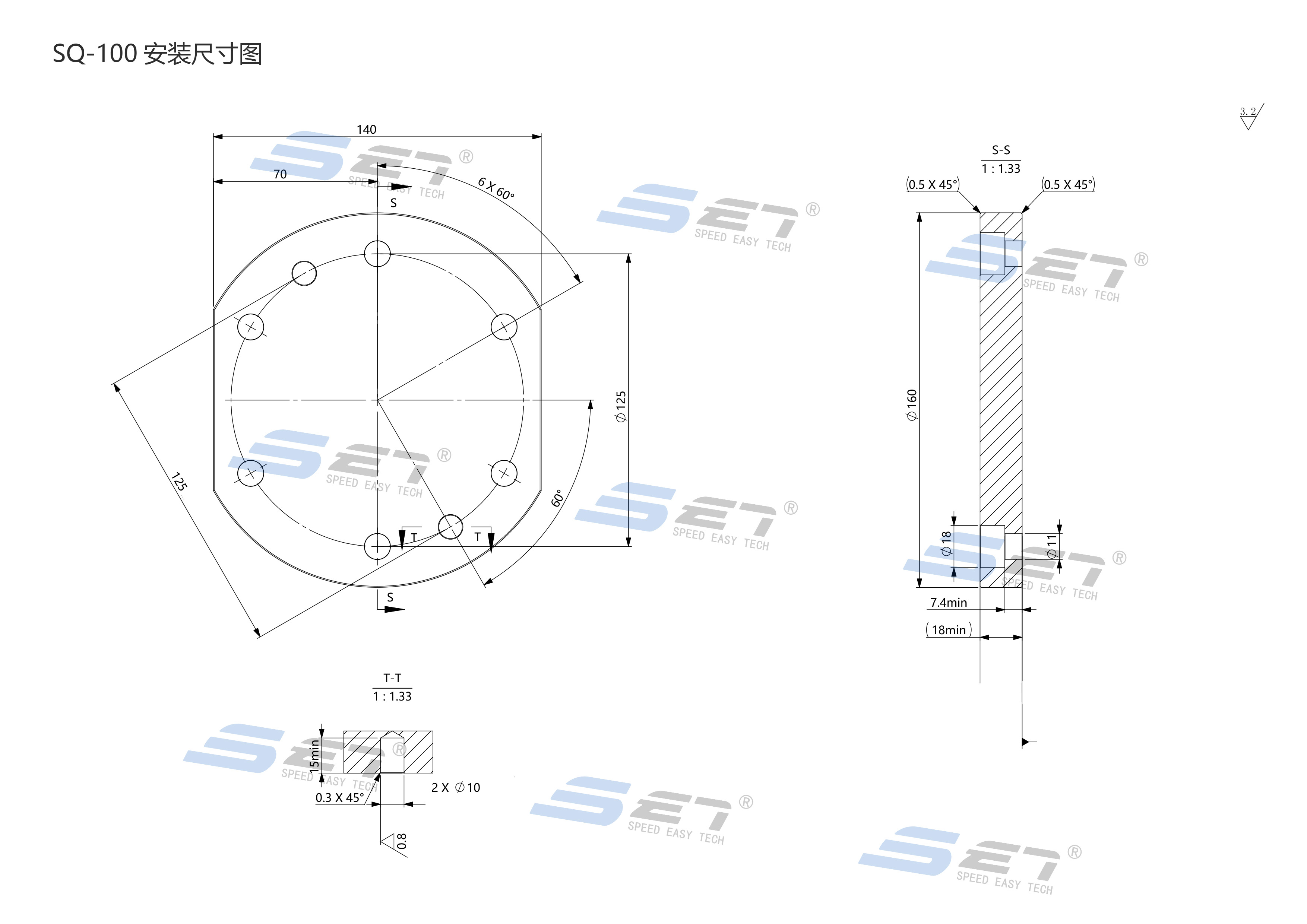

Detail drawing
  • 100kg Quick-change Gripper
  • 100kg Quick-change Gripper
  • 100kg Quick-change Gripper
  • 100kg Quick-change Gripper
Contact us
Suzhou SET Industrial Equipment System Co.,Ltd. Product parameters Suzhou SET Industrial Equipment System Co.,Ltd. Drawing Suzhou SET Industrial Equipment System Co.,Ltd. Data download Suzhou SET Industrial Equipment System Co.,Ltd. Related accessories
Product Overview

The quick-change gripper device is unlocked and gripped by gas pressure. Its material is hardened stainless steel.

Its repetitive positioning accuracy ≤ ±0.015mm, locking force is 12000N. It can carry 100kg workpiece. Various power, liquid and gas modules can be optionally selected. It has special insurance to prevent the risk of accidental gas outages.

The usage temperature range is 5℃ to 60℃. Standard configuration can quickly connect to the gas source.

It is suitable for automated handling and assembing.

Suitable for automatic punching, deburring, and other processings.

100kg Quick-change Gripper
Product Features

  • Gas pressure unlocked, gripped;

  • Repeatitive positioning accuracy <±0.015mm;

  • Special insurance to prevent the risk of accidental gas outages;

Suzhou SET Industrial Equipment System Co.,Ltd.

  • Material: hardened stainless steel;

  • Various power, liquid and gas modules can be optionally selected;

  • Standard configuration can quickly connect to the gas source.

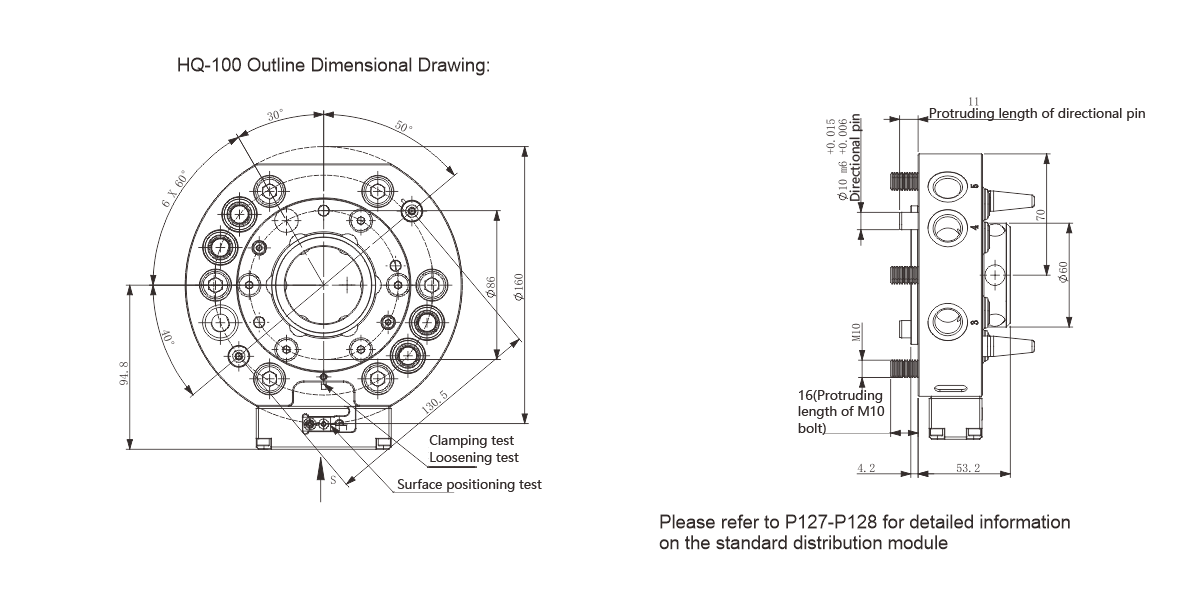

Product dimension diagram

Model number HQ-100
 Transportable weight (kg) 100
  Torque Mx (max) Nm 1626
  Torque My (max) Nm 1626
  Torque Mz (max) Nm 2103
  Locking force (N) 12000
Repeatitive positioning accuracy (mm) ±0.015
 Weight (kg) 2.4
Maximum distance when locked (mm) 2
  Air channel air interface thread 5*G3/8”
Maximum allowable XY axis offset (mm) ±1
  Maximum allowable angular offset (℃) ±1
  Minimum ambient temperature (℃) 5
  Maximum ambient temperature (℃) 60
  Minimum working pressure (bar) 4.5
  Maximum working pressure (bar) 7
  • Suzhou SET Industrial Equipment System Co.,Ltd.
  • Suzhou SET Industrial Equipment System Co.,Ltd.

100kg Quick-change Gripper

  1. The quick-change gripper device is unlocked and gripped by gas pressure. Its material is hardened stainless steel.
  2. Its repetitive positioning accuracy ≤ ±0.015mm, locking force is 12000N. It can carry 100kg workpiece. Various power, liquid and gas modules can be optionally selected. It has special insurance to prevent the risk of accidental gas outages.
  3. The usage temperature range is 5℃ to 60℃. Standard configuration can quickly connect to the gas source.
  4. It is suitable for automated handling and assembing.
  5. Suitable for automatic punching, deburring, and other processings.
Public information
Suzhou SET Industrial Equipment System Co.,Ltd. All Suzhou SET Industrial Equipment System Co.,Ltd. 3D model diagram Suzhou SET Industrial Equipment System Co.,Ltd. Installation instruction Suzhou SET Industrial Equipment System Co.,Ltd. User Manual Suzhou SET Industrial Equipment System Co.,Ltd. Sample book
Suzhou SET Industrial Equipment System Co.,Ltd. List Type Latest updates
