Clamping System SET A Full Range Of Zero Clamping System To Help The New Revolution In Machining!

The full range of zero-point grippers developed by Suidel is versatile and can be installed in machine pallets, substrates, square plates, columns, towers and rotating Bridges for all common mechanical processes such as milling, turning, grinding, corrosion and test benches for assembly equipment. Quick-change grippers made of high-quality tool steel are mechanically clamped and unlocked. The features of Suyi De's full range of clamping systems are: simple and durable, easy to clean, full package design, and high positioning accuracy.
​​With rich experience in the field of mechanical processing, we continue to enrich the product lineup for more refined and intelligent machine tool manufacturing, and meet a variety of needs of innovative clamping technology system solutions for customers to choose, to help enterprises to create high efficiency, high precision, high quality machining production line.
​​Manual quick change gripper system series
​01

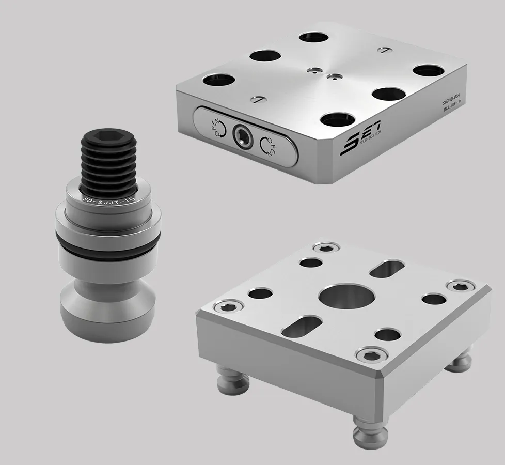

Manual zero positioner series

▲ Manual four-unit positioner manual pallet manual locking pin
​With the combination of the manual zero positioning system and the manual vice, the modular design of strong locking is quickly realized, which can realize the fast clamping outside the machine tool and improve the processing efficiency.
​Positioner features
Manually clamp and unlock
Material: Stainless steel (or custom)
Surface and piston hardening
Repeated positioning accuracy < ±0.01mm
​Maximum torque: 60Nm
​​​Pallet characteristics
Material: Die steel (or custom)
Special requirements can be customized
​​Dowel features
hardening
The function of restricting the freedom of X and Y directions
​​02
Vice series

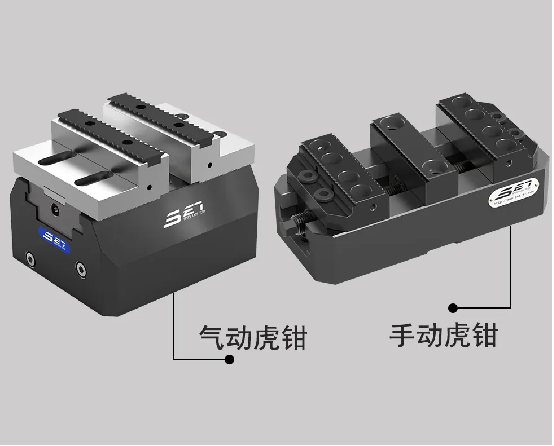

▲ Pneumatic vise Manual vise
​​The Suede vice can be used in conjunction with the zero-point positioning system to quickly change the entire clamping device in seconds. Flat design and space-free, especially suitable for automation solutions with workpiece storage when combined with quick-change systems.
​​Manual vise features
Manual fast opening, locking, double seal, good sealing performance
Material: Alloy structural steel
Center using double-sided bearing centering, easy to operate
Repeated positioning accuracy < ±0.01mm
​The self-allocing vice is a versatile tool that can be used to grip blank materials, plates or profiles. The pre-tightened and gap-free center bearing and additional mounted sliders ensure a repeatability of up to ± 0.01mm, a small clamping depth (3mm), and the ability to achieve multi-sided machining in a single clamping system.
​Pneumatic vice features
Air source open, spring clamp, air source pressurized
Material: Hardened stainless steel
Surface and rail hardening treatment
Repeated positioning accuracy < ±0.01mm
​The pneumatic vise developed by Suide is equipped with a spring set inside for higher clamping force. When there is no air supply, the vise can still maintain a high clamping force. In addition, the grip position can be monitored through dynamic pressure or an integrated air path, which makes the vise even more useful in automation applications.
​​​03

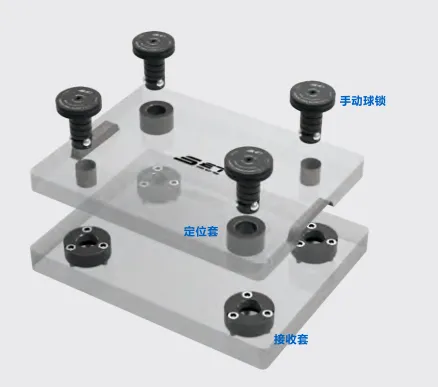

Manual ball lock system

Main components: receiving sleeve (placed in the base plate), positioning sleeve (placed in the tray) manual ball lock
Main uses: can quickly and accurately complete the positioning and locking of the complete set of fixtures; Suitable for small batch, multi-variety workpiece quick change
​peculiarity
Fast: Complete fixture replacement takes up to 1 minute
Repeated positioning accuracy: within ±0.013mm
Clamping force: The bearing capacity of the ball lock is 36 tons
Simple operation: lock positioning one step to achieve
Low cost: Only one set of base plates, unlimited replacement of pallets processing different products
Maintenance: Parts are interchangeable and interchangeable
​​​04

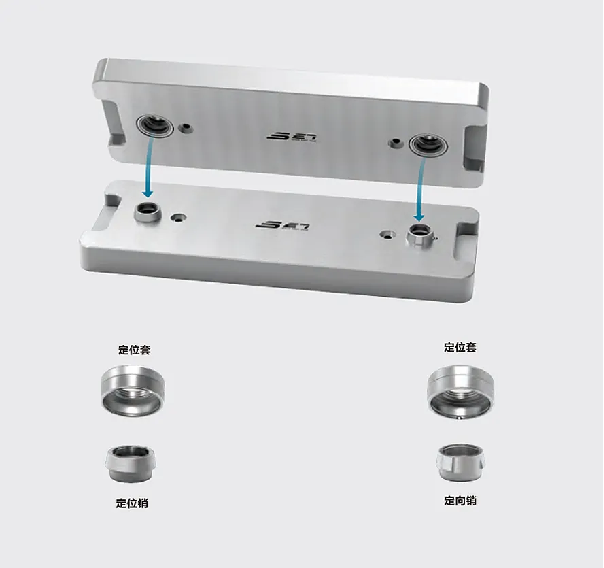

Manual locating ring

Manual positioning ring is a device that only needs bolts to complete high-precision positioning.
​peculiarity
Manually locate, lock, and unlock
Repeated positioning accuracy <±0.003mm
Material: Hardened stainless steel
Fast and precise positioning of pallet and substrate
Compact design for efficient use of space
​​Clamping system application case
​​​01
Self-centering vice

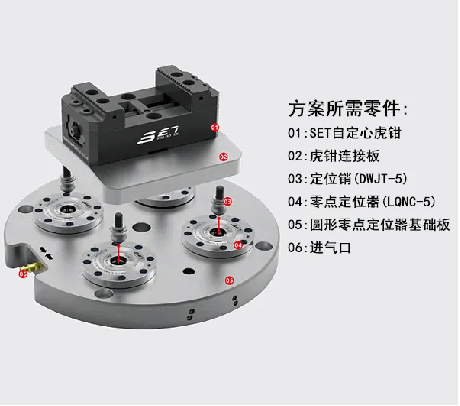

● Self-centering vice is used in five-axis circular zero positioning table
● This program can quickly replace the self-centering vice, greatly improve the work efficiency
​​02
Manual zero positioner

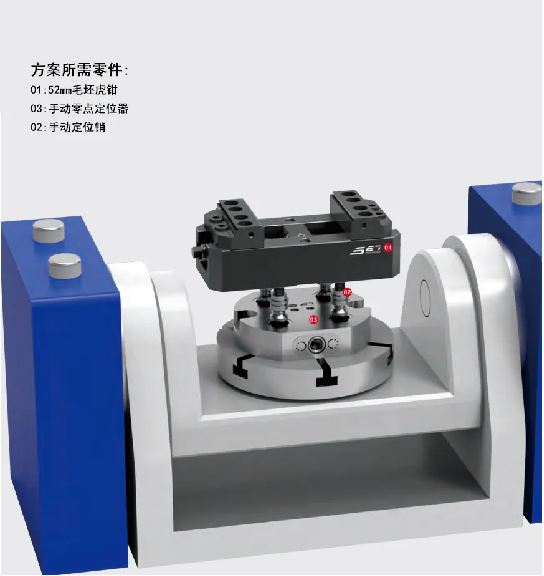

● Manual self-centering vise with 52mm manual four-unit zero positioning
● Fast loading, no need to adjust, large clamping force
● Can realize invisible, contourless interference processing
​​03

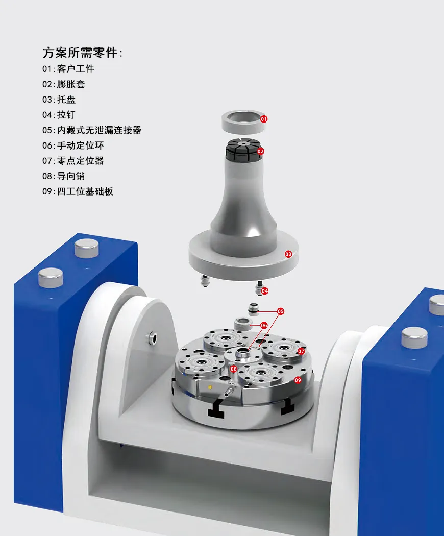

Manual locating ring

● Center flexible cone ring to ensure center positioning accuracy and always remain unchanged
● Leak-free connectors allow quick connection of hydraulic or pneumatic fixtures
​​​In the field of aerospace, automated production, laser intelligent manufacturing, automobile manufacturing, machine tool production line, we always pay attention to your specific needs, to provide you with high-quality fixture solutions. Especially suitable for mass fixture production and quick change, so that the mechanical production to improve the production efficiency of 90%. SET relies on high-quality processing technology and the technical requirements of excellence, has provided technical solutions for many well-known enterprises in the world. SET has the ability to design, produce, test and sell the whole solution to ensure a consistently high quality product.
