[CCMT2024] SET tool handle quick change system, leading the field of intelligent manufacturing equipment!

Tool handle quick change system is an automatic device on the exponential control machine tool, which can quickly change the tool without stopping. This can greatly reduce the tool change time and improve production efficiency. The design and implementation of tool handle quick change system is of great significance to improve the machining efficiency of NC machine tool, reduce manual intervention and reduce production cost.

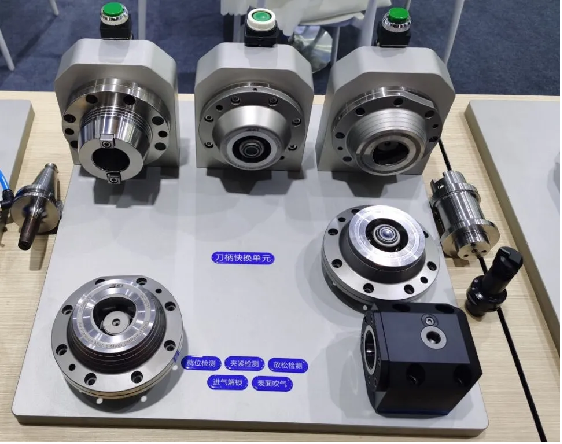

Three conventional tool handle quick change units developed by Suyi De
It is also a popular product of the CCMT2024 exhibition
Attracted many visitors to stop and watch.

Product introduction

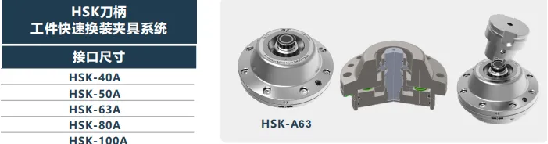

HSK knife handle
Workpiece quick change fixture system

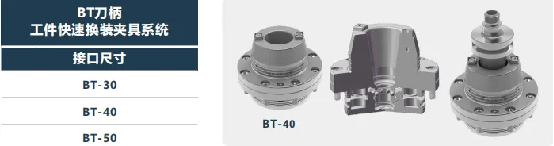

BT shank
Workpiece quick change fixture system

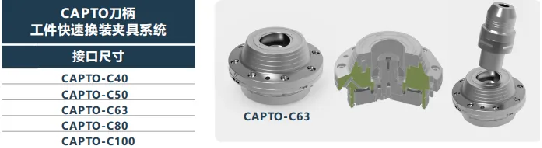

The handle of the CAPTO
Workpiece quick change fixture system

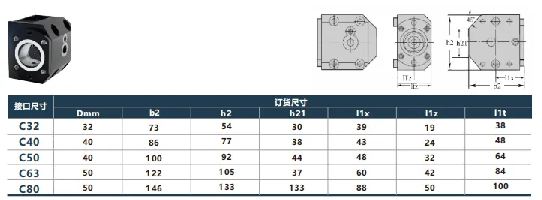

Manual/hydraulic clamping unit
​>> Manual clamping unit - camshaft drive for special applications

>> Hydraulic clamping unit - Standard hydraulic clamping unit

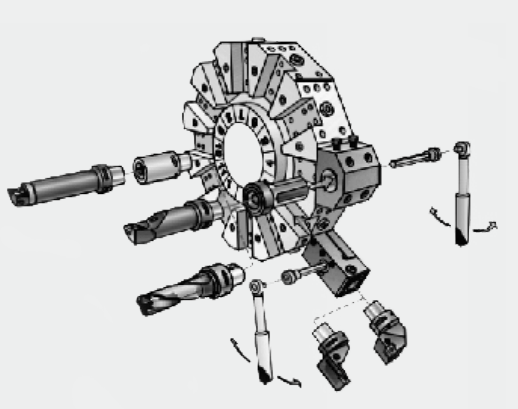

Handle quick change unit

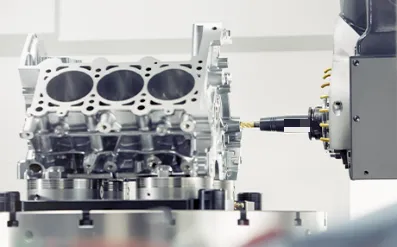

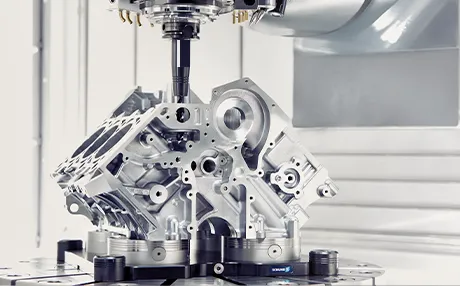

Application field

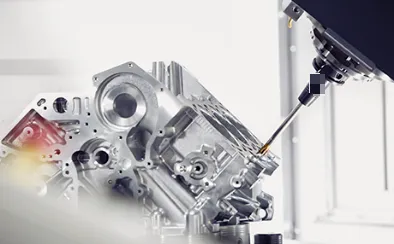

The cutting process is achieved by the relative cutting motion of the tool and the workpiece on the machine tool. The tool and the workpiece are positioned respectively, and the clamping is installed in the tool handle and fixture. If the correct relative position and relative motion between them can be maintained during processing, the parts with correct shape and high precision can be processed. Because it is dynamic force processing, in addition to the accuracy of the tool, the tool handle, the fixture itself should be higher, and it should have a reasonable structure shape and size to ensure that it is difficult to deform after the cutting load, that is, high rigidity, so as to maintain the correct relative position when cutting, always achieve the correct relative motion, and process accurate parts.

>> Milling

>> Reaming

>> Drilling

We have a comprehensive portfolio of fixture products and professional R & D technology, with many years of accumulated experience, deep cultivation of the industry for decades, can provide to meet a variety of needs of automation clamping technology solutions, help automation industry equipment manufacturers reduce costs and increase efficiency, enhance the core competitiveness of enterprises. The critical is that our zero positioning system solutions can meet a variety of practical application scenarios, Suyi De rely on high-quality R & D production technology and excellence of technical requirements, has provided many well-known enterprises in the world with technical solutions.
​In the future, Suyi will continue to firm the original intention, adhere to the core, adhere to innovation, constantly improve products and services, create greater value for customers, and contribute to promoting the development of the industry and social progress.
